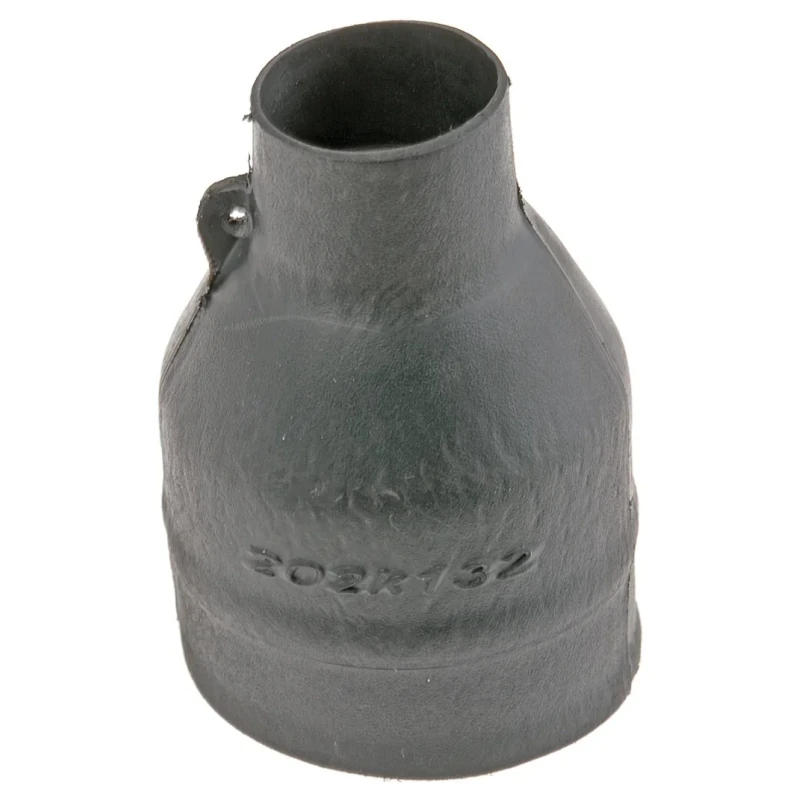

TE Connectivity Heat Shrink Boot Straight LFH Polyolefin Adhesive Backing Black 30 mm 202K132-100/180-0

TE Connectivity 202K132-100/180-0 heat shrink boot is a straight type heat shrink boot constructed from LFH Polyolefin material with adhesive backing. It is designed to provide reliable electrical insulation, sealing, and strain relief for cable joints in industrial and marine environments. The boot measures 30 mm and supports one breakout, suitable for inside cable diameters ranging from 15 mm to 30 mm.

Manufactured for applications where hazard reduction is critical, this boot features zero halogen properties, low smoke emission, and low toxicity during fire conditions. It has been approved to DEF STAN 59/97 issue 3 type DF, making it suitable for use in marine, transport, offshore, and high-specification industrial settings.

The shrink temperature rating is 100°C, ensuring a secure fit around cables, and it operates effectively within a temperature range of -30°C to 80°C. The dielectric strength is rated at 15 MV/m, offering robust electrical insulation and protection.

Key features include excellent sealing against environmental factors, strong strain relief to reduce mechanical stress on cables, and compliance with RoHS standards for environmental safety. The black color offers standard visual identification in cable installations, and the adhesive backing enhances the sealing performance.

The series 202K1 heat shrink boots are widely used with spin coupling backshells or suitable rear mounted connectors to provide effective cable protection in electrical, automation, marine, and industrial electrical applications.

This boot offers excellent low smoke and low emission properties for enhanced safety. It provides effective sealing and strain relief in cable applications. Material provides dielectric strength of 15 MV/m for insulation protection.

Suitable for marine, transport, offshore, and high-specification environments requiring zero halogen properties. Operates in a temperature range from -30°C to 80°C. Shrinks at 100°C for secure fitting. Supports one breakout with inside diameter range 15 mm to 30 mm.

Complies with RoHS environmental standards. Black color for standard identification. Series 202K1 ensures durable performance with adhesive backing. Explore the range of Heat Shrink Boots at EnvMart for reliable and certified cable protection solutions.
