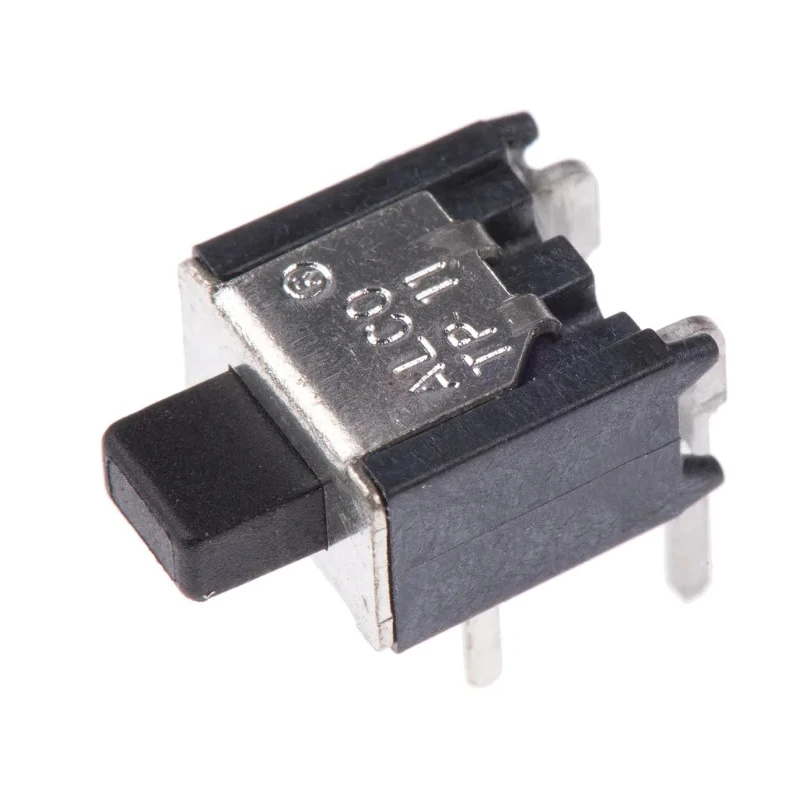

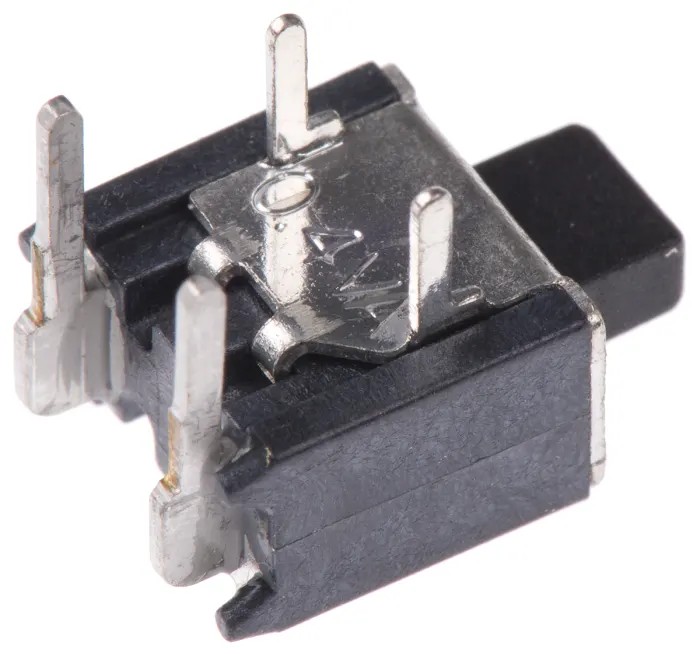

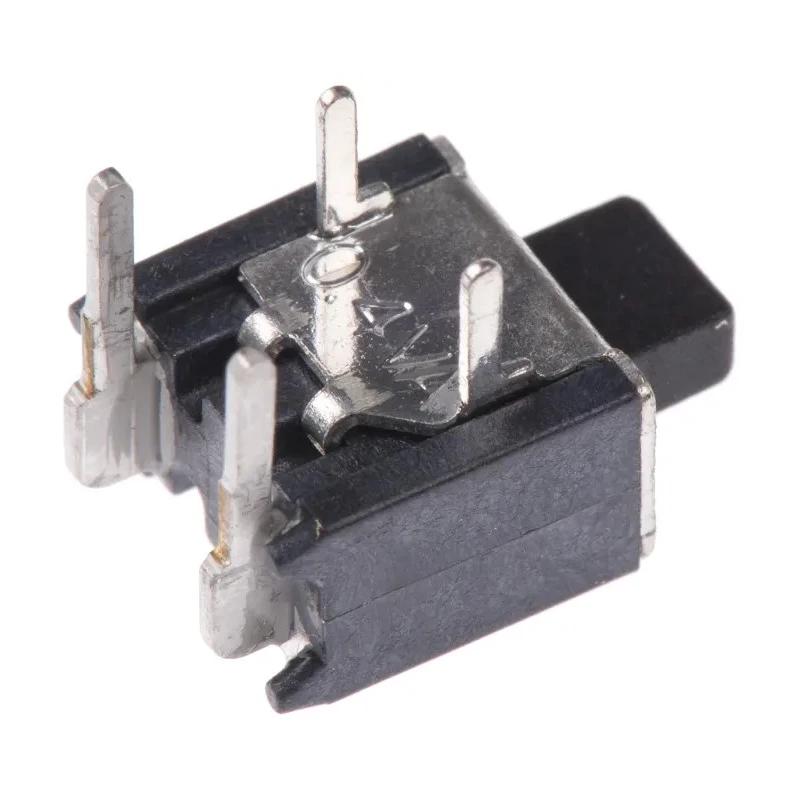

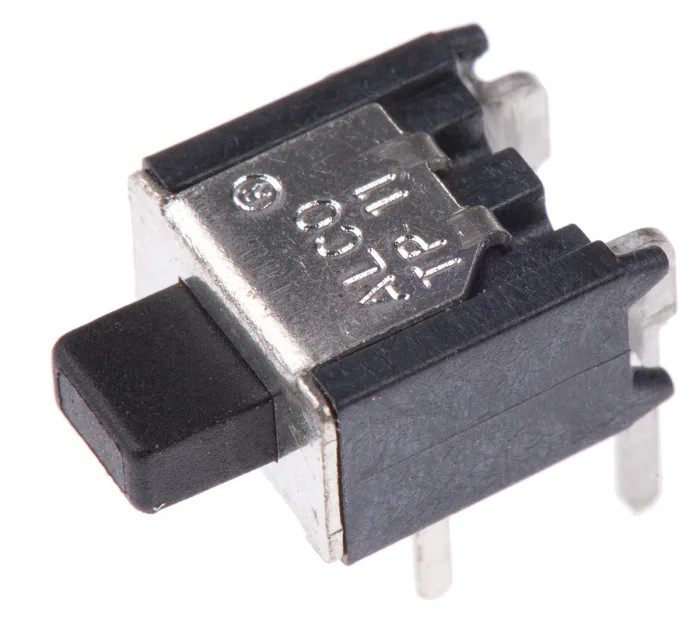

TE Connectivity Miniature Push Button Switch Momentary PCB Mount SPST 20 V dc 1825095-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | PCB |
| Maximum Operating Temperature | 95°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | REACH, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-2207PBrand: TE ConnectivityManufacturers Part No.: 1825095-3 |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 20V dc |
| Actuator Style | Push Button |
| Switch Contact Current | 400mA |
| Electrical Life | 80000 cycles |
Key Features
- Features a black push button actuator designed for PCB mounting.
- Switch operation is momentary with normally open break-before-make contacts.
- Terminals configured for through hole soldering on the PCB.
- Rated for switch contact current of 400mA and voltage of 20 V dc.
- Durability offers an electrical life of up to 80,000 cycles.
- Operational temperature range from -30°C to 95°C for reliability in varying environments.
- Constructed with thermoplastic housing and gold contacts ensuring longevity and corrosion resistance.
- Compatible with wave soldering processes up to 265°C.
Product Description
TE Connectivity 1825095-3 is a miniature push button switch designed for industrial and electronic applications requiring reliable momentary switching on printed circuit boards (PCB). This SPST (Single Pole Single Throw) switch features a black push button actuator with a thermoplastic housing and gold contacts, optimizing performance and durability.
With a contact DC voltage rating of 20 V and maximum switch contact current of 400mA, it is suitable for low voltage control circuits. The switch is designed for through hole PCB mounting, offering secure and stable installation.
Its operational temperature range of -30°C to 95°C ensures dependable function under various ambient conditions. The electrical life expectancy reaches 80,000 cycles, supporting extensive use in industrial, laboratory, and automation environments.
The product meets RoHS and REACH standards, evidencing compliance with critical environmental directives. Its wave solder capability up to 265°C facilitates integration into manufacturing processes with solder reflow.
Features a black push button actuator designed for PCB mounting. Switch operation is momentary with normally open break-before-make contacts. Terminals configured for through hole soldering on the PCB. Rated for switch contact current of 400mA and voltage of 20 V dc.
Durability offers an electrical life of up to 80,000 cycles. Operational temperature range from -30°C to 95°C for reliability in varying environments. Constructed with thermoplastic housing and gold contacts ensuring longevity and corrosion resistance.
Compatible with wave soldering processes up to 265°C. Complies with REACH and RoHS standards for environmental and safety regulations.
This switch is ideal for industrial control, electrical automation, manufacturing equipment, and laboratory instrumentation where a momentary PCB Push Button Switch with precise and reliable actuation is required.
Explore more in the Electronics & Electricals category at EnvMart for complementary switches, actuators, and mounting accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 400mA.
It operates within an ambient temperature range of -30°C to 95°C.
This switch is designed for PCB mounting with through hole terminals.
The electrical life of this switch is rated for up to 80,000 cycles.
This model has a contact DC voltage rating of 20 V.
It complies with REACH and RoHS standards, ensuring adherence to environmental regulations.
The switch operates as a momentary switch with normally open break-before-make contacts.
It features a thermoplastic housing and gold contacts for enhanced performance and corrosion resistance.
Yes, it is compatible with wave soldering processes up to 265°C.
The actuator style is a push button and is colored black.
It is suitable for industrial control, electrical automation, manufacturing equipment, and laboratory instrumentation.
The terminals are configured for through hole soldering on the PCB.
