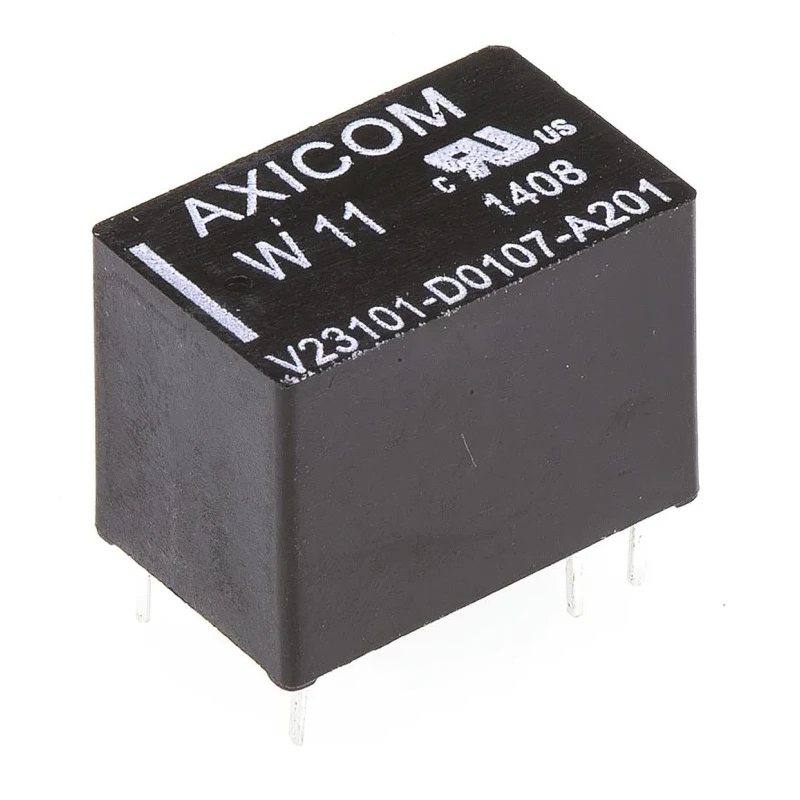

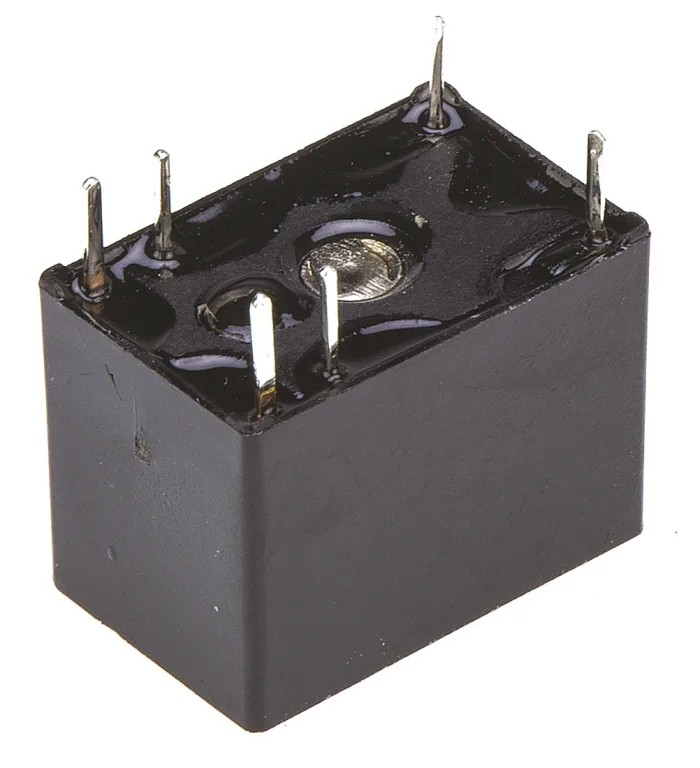

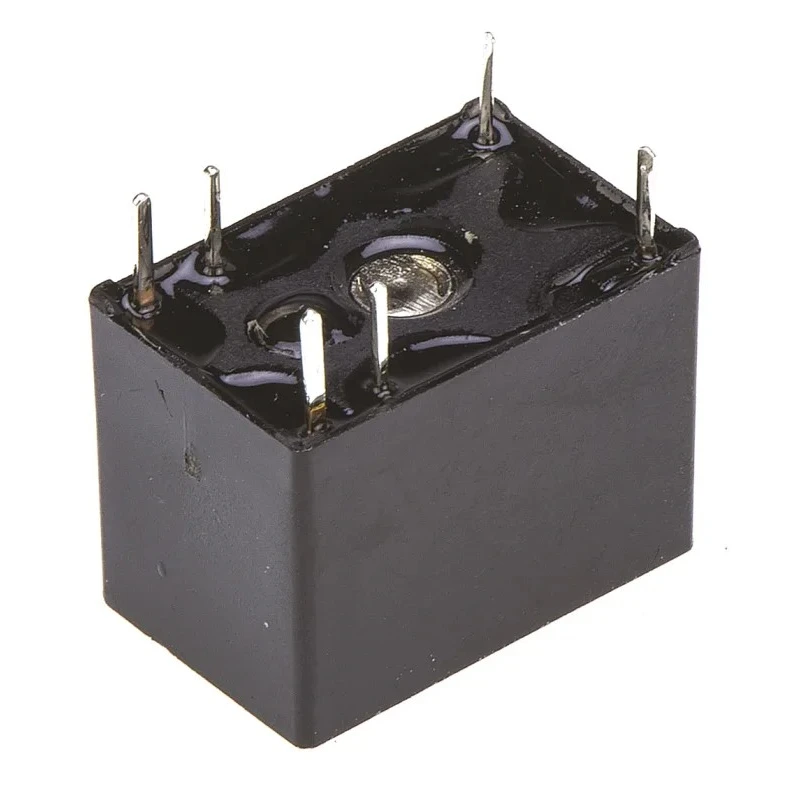

TE Connectivity PCB Signal Relay, 24V dc Coil, 1.25A, SPST V23101D 107A201
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.5mm |
| Model | V23101D 107A201 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | W11 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1.25A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1923Brand: TE ConnectivityManufacturers Part No.: V23101D 107A201Distrelec Article No.: 137-20-990 |
| Coil Resistance | 2800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 206mW |
| Pin Length | 3.5mm |
Key Features
- Compact size with dimensions 11.5mm x 10mm x 15.5mm.
- Operates reliably within temperature range of -40°C to 85°C.
- Gold plated silver palladium contact material ensures durability.
- High switching power capability of 62.5VA for AC applications.
- Sealed construction for high shock and vibration resistance.
- Designed for PCB mount with solder terminal type.
- Low coil power consumption of 206mW with 2800Ω coil resistance.
- Complies with RoHS standards for environmental safety.
Product Description
TE Connectivity V23101D 107A201 PCB Signal Relay is a high-quality, compact signal switching device designed for electronics and electrical automation applications. It features a 24V dc coil and supports a switching current of 1.25A with a single-pole single-throw (SPST) contact configuration, making it suitable for low power signal switching tasks on printed circuit boards.
The relay's compact dimensions of 11.5mm height, 10mm width, and 15.5mm length allow it to fit easily in tightly packed PCB layouts. It is designed to operate efficiently at ambient temperatures ranging from -40°C to 85°C, ensuring reliable performance in harsh industrial and laboratory environments.
The contact material is gold plated silver palladium (AgPd) for excellent conductivity and resistance to corrosion, contributing to long service life. The device is fully sealed, offering high resistance to shock and vibration, essential for manufacturing and automation processes where equipment is subject to mechanical stress.
Its coil resistance of 2800Ω and coil power of 206mW indicate low energy consumption, making it an energy-efficient choice. The relay mounts onto PCBs using solder terminals and is compliant with RoHS standards, ensuring environmental safety and regulatory compliance.
Compact size with dimensions 11.5mm x 10mm x 15.5mm. Operates reliably within temperature range of -40°C to 85°C. Gold plated silver palladium contact material ensures durability. High switching power capability of 62.5VA for AC applications.
Sealed construction for high shock and vibration resistance. Designed for PCB mount with solder terminal type. Low coil power consumption of 206mW with 2800Ω coil resistance. Complies with RoHS standards for environmental safety.
This relay is ideal for use in industrial automation, electrical equipment, control systems, and signal conditioning applications. Its reliable switching and robust construction make it suitable for demanding environments such as manufacturing plants, laboratories, and HVAC control systems.
Explore more Signal Relays and related electrical components at EnvMart for your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has dimensions of 11.5mm in height, 10mm in width, and 15.5mm in length.
It operates reliably within a maximum temperature of 85°C.
This model features a single-pole single-throw (SPST) contact configuration.
The relay operates at a coil voltage of 24V dc and has a low coil power consumption of 206mW.
It supports a switching current of up to 1.25A.
The contact material is gold plated silver palladium, which ensures excellent conductivity and resistance to corrosion.
The sealed construction provides high resistance to shock and vibration, making it suitable for demanding industrial environments.
Yes, it complies with RoHS standards for environmental safety.
The coil resistance is 2800Ω.
This relay can switch up to 125V ac and 120V dc.
It is designed for PCB mounting with solder terminals.
This relay is suitable for industrial automation, electrical equipment, control systems, and signal conditioning applications.
