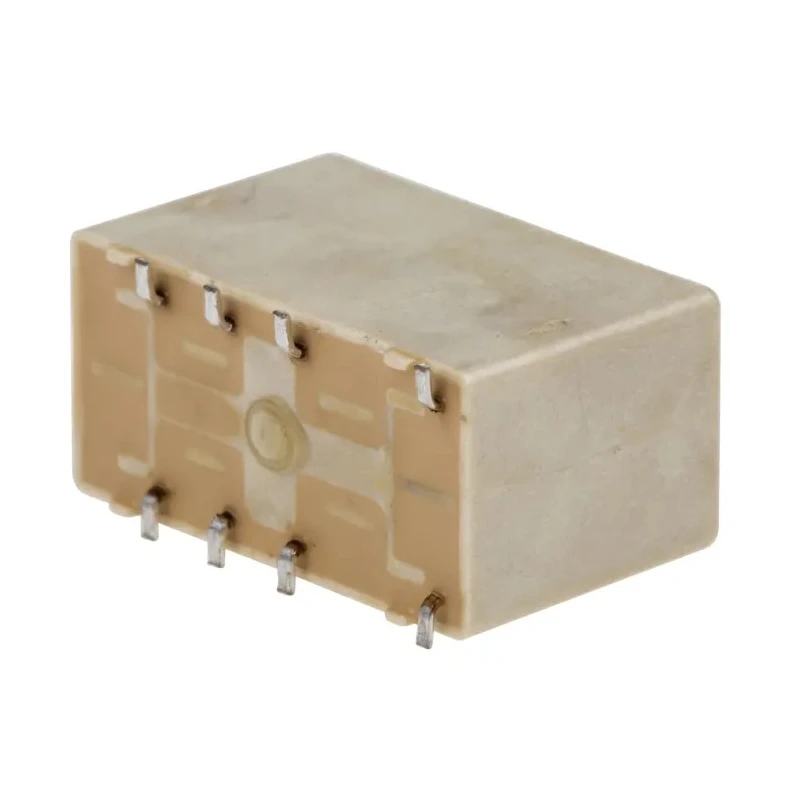

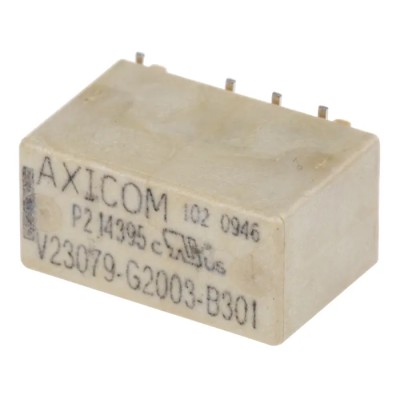

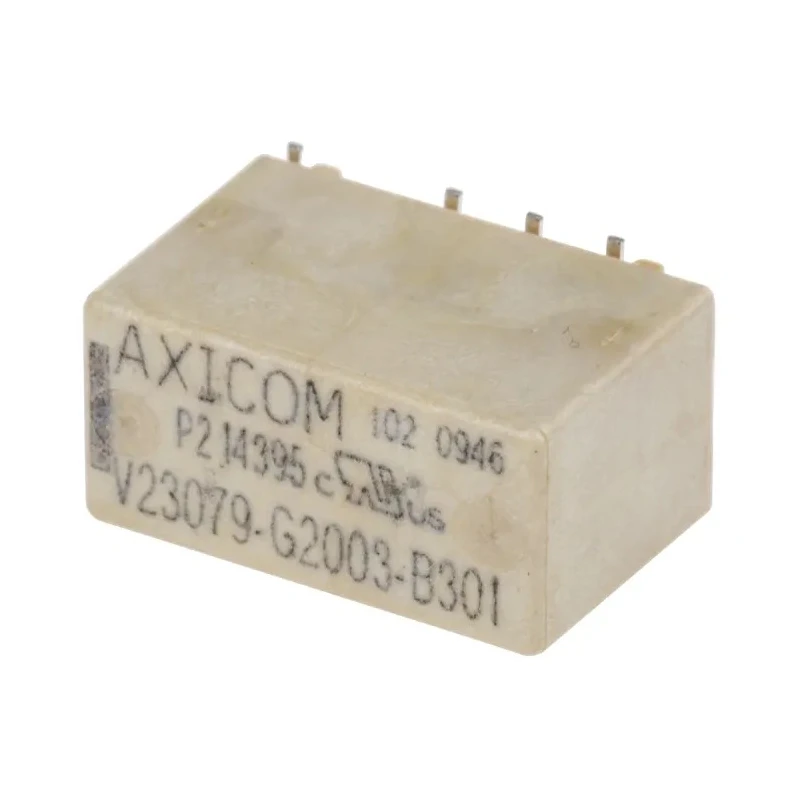

TE Connectivity PCB Signal Relay 12V dc Coil 2A DPDT with Gold Plated Contacts V23079G2003B301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 10.4mm |
| Length | 14.5mm |
| Model | V23079G2003B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | REACH, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1812Brand: TE ConnectivityManufacturers Part No.: V23079G2003B301Distrelec Article No.: 303-53-487 |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- The relay features gold plated bifurcated silver nickel contacts for enhanced conductivity and durability.
- It is a DIP vertical mount SMT signal relay with a compact 15 x 7.5mm slimline design.
- High sensitivity coil ensures low power consumption of 140mW nominal.
- The relay supports switching currents up to 2A and switching voltages of 250V AC and 220V DC.
- Designed for immersion cleaning and meets REACH and RoHS environmental standards.
- Operating temperature range from -40°C to 85°C allows use in diverse industrial environments.
- Its overmoulded monostable coil construction provides reliability and protection against environmental stresses.
- Applications include communications equipment, consumer electronics, office automation, medical devices, and automotive systems.
Product Description
TE Connectivity V23079G2003B301 PCB Signal Relay is a high-performance 12V dc coil DPDT signal relay rated for 2 Ampere switching current, suitable for industrial, laboratory, and commercial applications requiring precise signal control and reliable switching.
This relay features gold plated bifurcated silver nickel contacts that ensure low contact resistance at 50mΩ, supporting both AC switching voltages up to 250V and DC switching voltages up to 220V, with a switching power rating of 62.5 VA.
The overmoulded monostable coil design supplies a nominal coil power consumption of 140 mW, along with high sensitivity. It is designed for immersion cleaning and complies with environmental standards including REACH and RoHS.

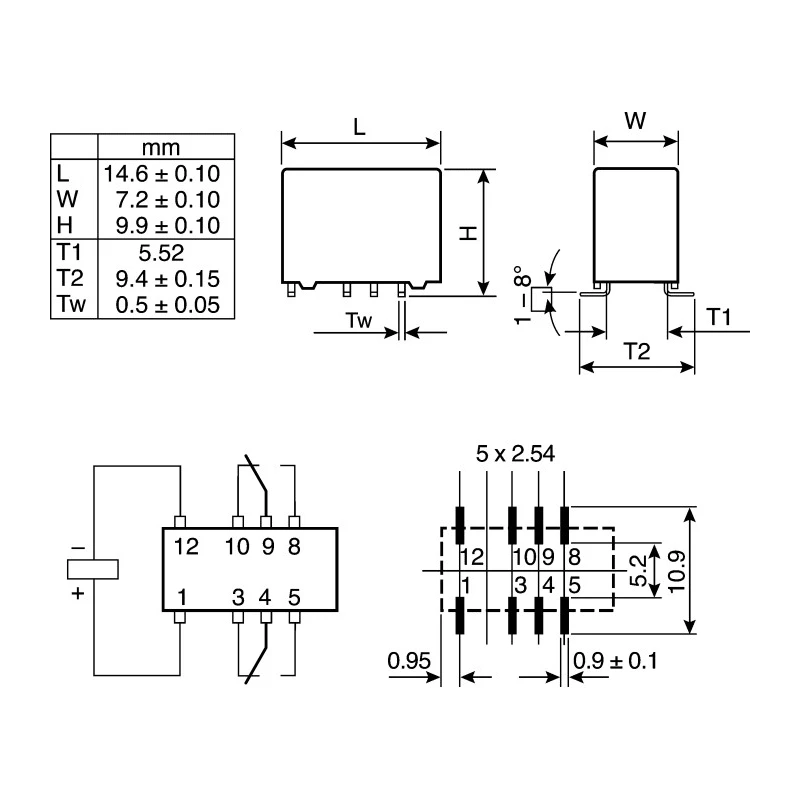

With a DIP vertical mount SMT form factor and compact dimensions of 10.4mm height, 14.5mm length, and 7.2mm width, this relay is optimized for PCB mounting with a solder terminal connection.
Gold plated bifurcated contacts provide enhanced electrical performance and durability. Immersion cleanable design with V-0 flammability classification improves manufacturing reliability. Wide operating temperature range from -40°C to 85°C allows usage in harsh environments.
Surge capability meets Telcordia TR-NWT-001089 and IEC 60950 standards for high reliability. Applications include telecommunications equipment, consumer electronics, office automation, medical instrumentation, and automotive control systems.
Compact size makes it suitable for space-constrained PCB designs. High insulation resistance (>10^9 Ω at 500Vdc) ensures signal integrity. Bifurcated contact design enhances switching reliability. Set includes 1 PC TE Connectivity PCB Signal Relay model V23079G2003B301.
Explore more Signal Relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a switching current of 2A.
The relay has dimensions of 10.4mm in height, 14.5mm in length, and 7.2mm in width.
The coil voltage for this relay is 12V DC.
It supports a maximum switching voltage of 250V AC and 220V DC.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The contact resistance is rated at 50mΩ.
The relay has a nominal coil power consumption of 140mW.
It operates within a temperature range of -40°C to 85°C.
Yes, it is designed for PCB mounting with a DIP vertical mount SMT form factor.
This model complies with REACH and RoHS environmental standards.
The contacts are made of gold plated bifurcated silver nickel for enhanced conductivity.
It is suitable for applications including telecommunications equipment, consumer electronics, office automation, medical instrumentation, and automotive control systems.
