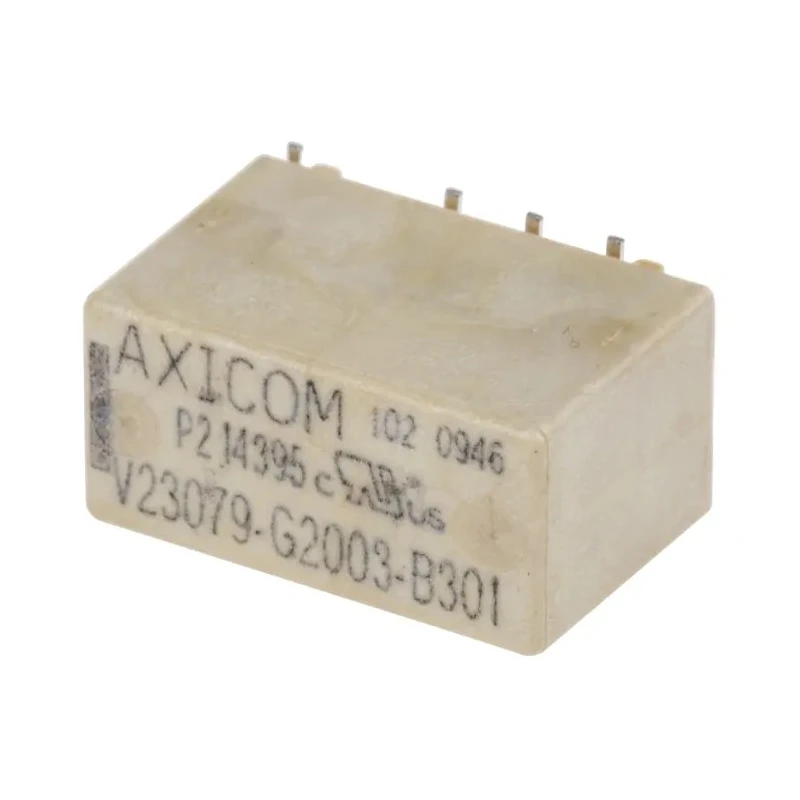

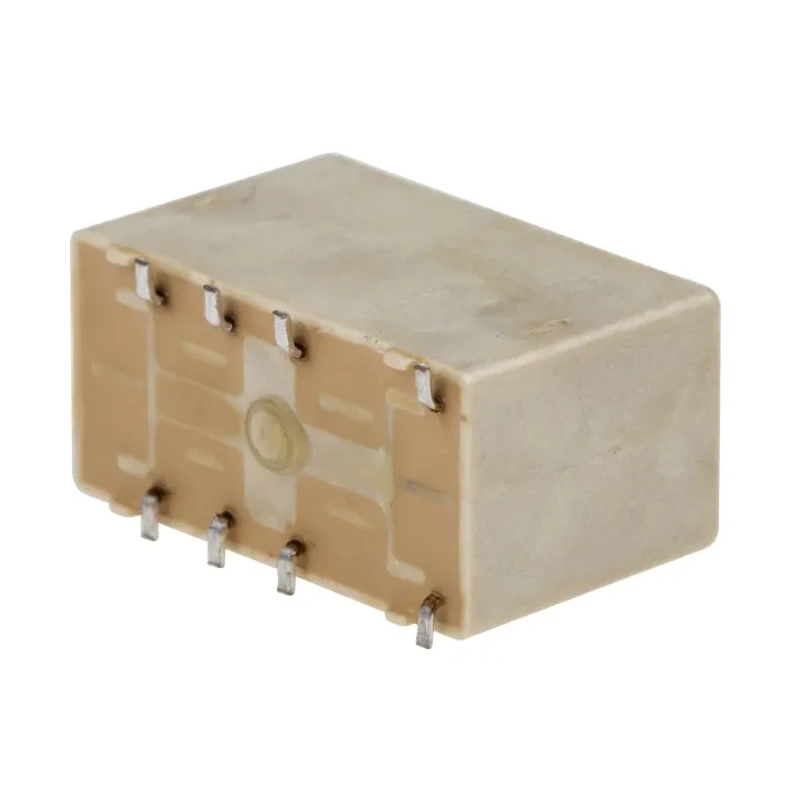

TE Connectivity PCB Signal Relay 12V DC Coil 2A DPDT Gold Plated Contacts V23079G2003B301

TE Connectivity V23079G2003B301 PCB Signal Relay is a high-quality signal relay designed for printed circuit board applications, featuring a 12V DC coil and 2A DPDT gold-plated contacts for reliable switching performance. This relay belongs to the P2 V23079 series, offering a slim 15 x 7.5 mm design optimized for SMT telecom and signal applications.

It is characterized by bifurcated contacts made from gold-plated silver nickel to ensure low contact resistance (50mΩ) and high reliability. The relay coil consumes a low nominal power of 140mW contributing to power-efficient operation, making it suitable for applications requiring minimal energy consumption.

The relay supports switching voltages up to 250V AC and 220V DC with a switching current rating of 2A, enabling functionality in medium-load electrical circuits common in industrial and consumer electronics.

Designed with immersion-cleanable properties and overmolded monostable coils, it offers IP67 level protection and V-0 flammability classification for safety and durability in harsh environments. The relay meets international standards including REACH and RoHS, ensuring environmental compliance.

Operating across a temperature range from -40°C to 85°C, this relay performs reliably in diverse climatic and industrial conditions. Typical applications include communications equipment such as PABX and VOIP systems, consumer electronics like set-top boxes and Hi-Fi devices, office automation, medical instrumentation, and automotive electronics.

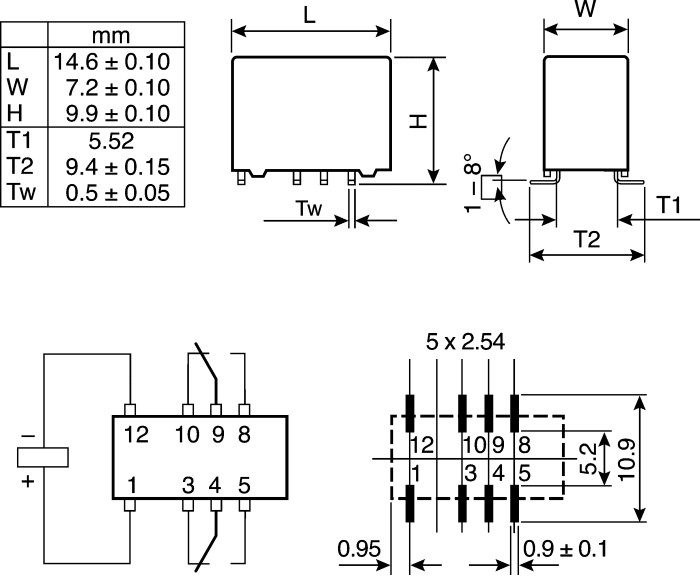

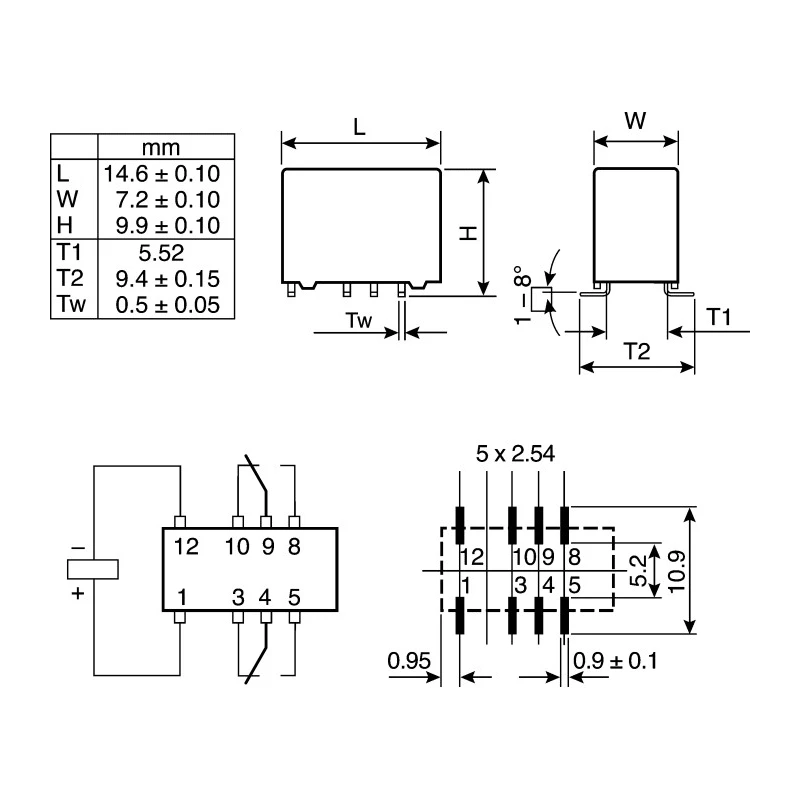

Dimensions of the relay are 14.5 mm in length, 7.2 mm in width, and 10.4 mm in height, which supports compact PCB layouts. Its solder terminal type facilitates secure and durable mounting on PCBs.

This component is manufactured in the Czech Republic, reflecting TE Connectivity's global quality standards and engineering excellence. The package includes the relay model V23079G2003B301, suitable for high-performance signal relay demands in industrial and telecommunications sectors.

This relay offers gold-plated bifurcated silver nickel contacts ensuring superior conductivity and durability. It has a low coil power consumption of 140mW enhancing energy efficiency. Suitable for operation in a temperature range from -40°C to 85°C for versatile environments.

Designed with immersion cleanable and overmolded monostable coils for robust performance. Compact dimensions with a length of 14.5mm, width of 7.2mm, and height of 10.4mm facilitate space-saving PCB designs. Meets REACH and RoHS environmental standards ensuring compliance to regulations.
