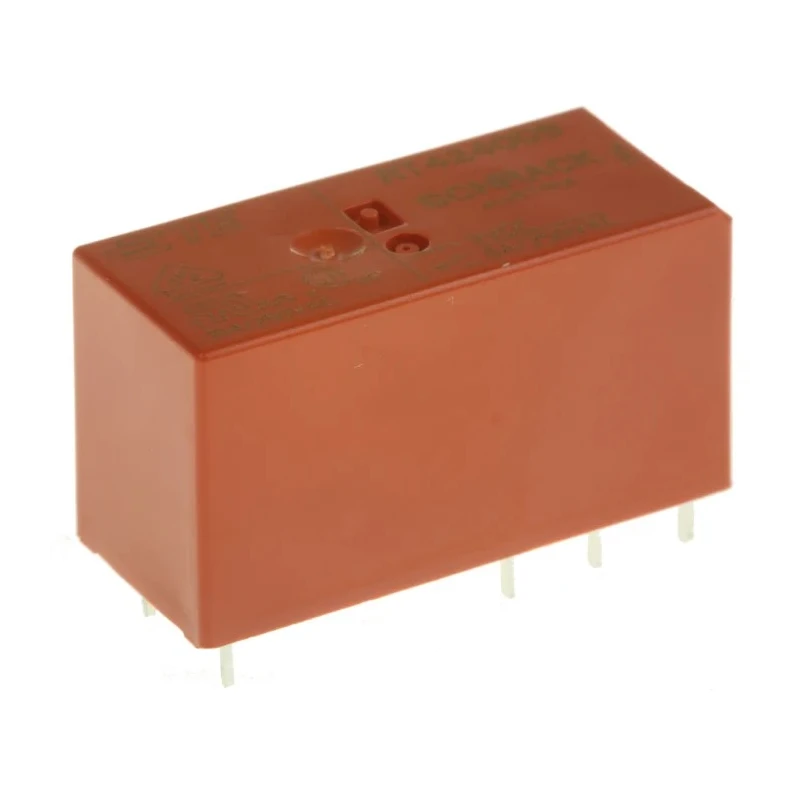

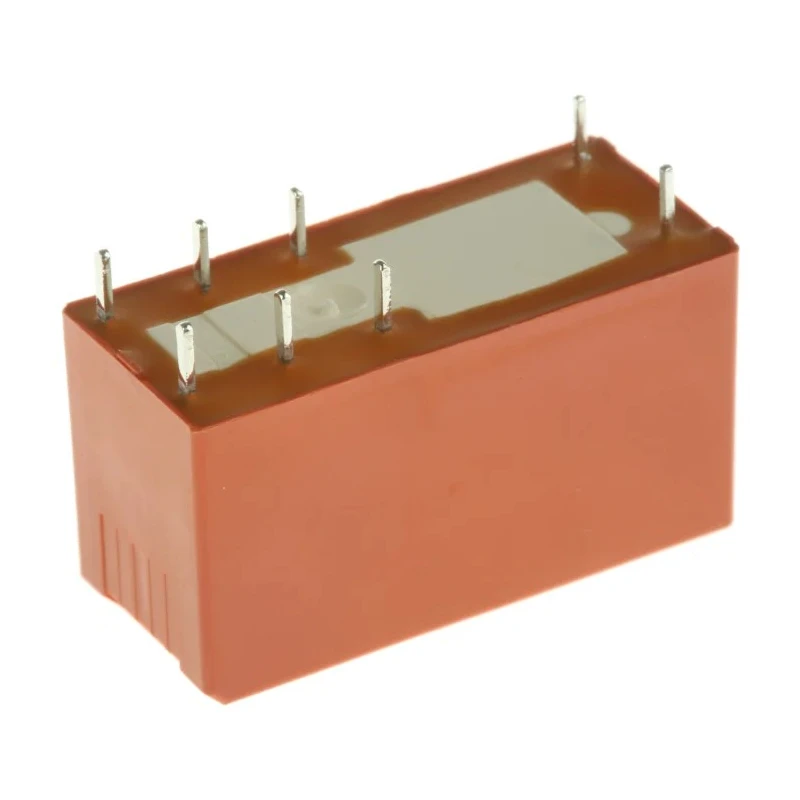

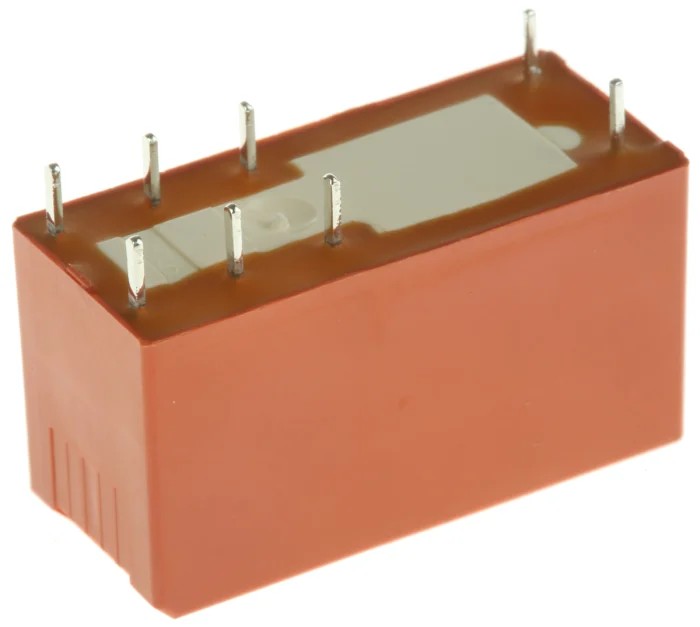

TE Connectivity PCB Power Relay 9V DC Coil 8A Switching Current DPDT RT424009

TE Connectivity RT424009 PCB Power Relay is a high-quality electromechanical relay designed for PCB mounting applications, featuring a 9V DC coil and a DPDT contact configuration with an 8A switching current capability. This relay is engineered for reliable performance in diverse industrial and automation environments.

The relay belongs to the RT2 series, distinguished by 5mm pinning and flux-proof design. It spans compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, making it suitable for tight PCB layouts while maintaining robust switching capabilities.

The relay coil has a resistance of 200 ohms and operates at a coil power of 400mW, ensuring low power consumption during operation. It supports switching AC voltage up to 400V and functions reliably across a wide temperature range from -40°C to 85°C, accommodating harsh industrial conditions.

Silver alloy contact material provides excellent conductivity and durability, enhancing relay longevity. Its solder terminal type ensures solid electrical connections suitable for various interface circuits.

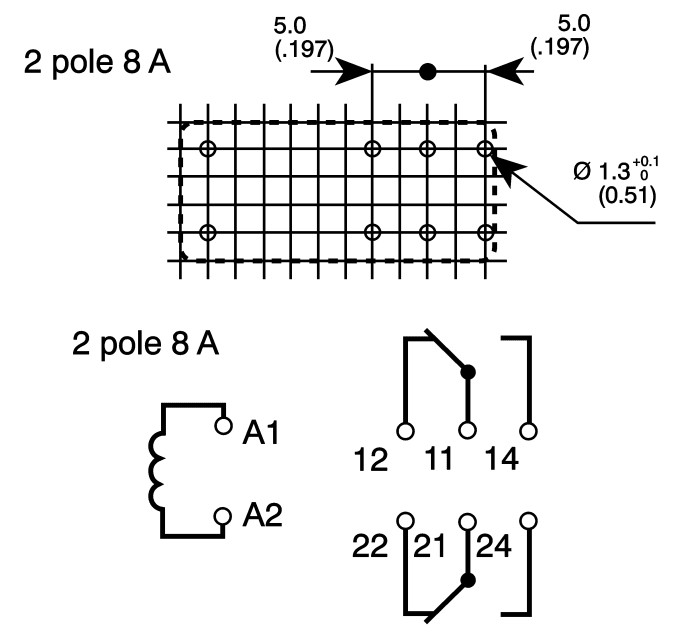

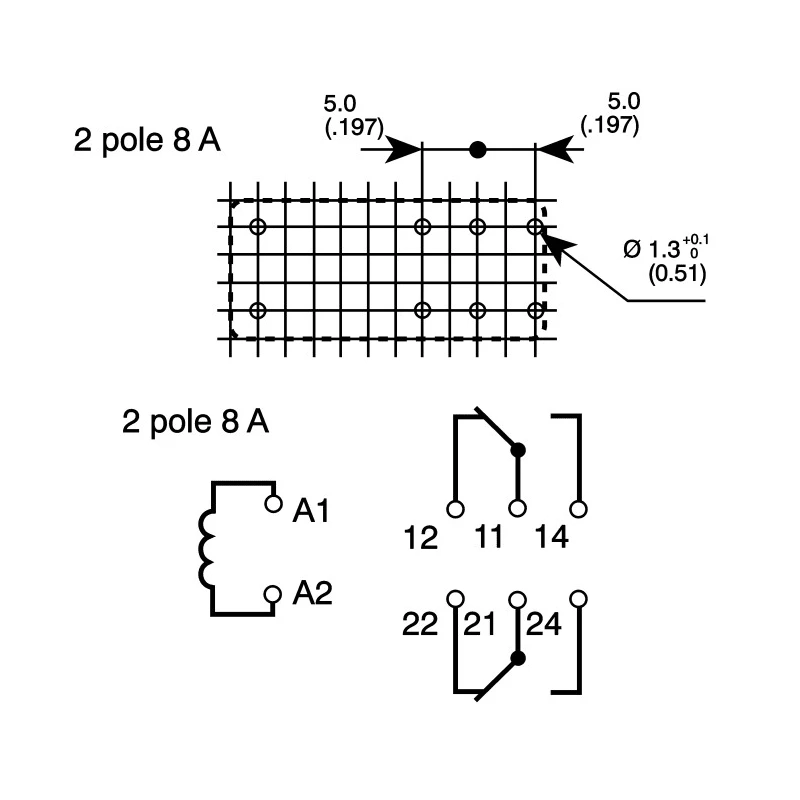

Operates with a coil voltage of 9V DC ensuring reliable activation. Double Pole Double Throw (DPDT) contact configuration allows versatile switching applications. Supports a switching current of up to 8A and a switching AC voltage of 400V AC.

Constructed with silver alloy contact material for durability and efficient conductivity. Designed to operate within temperature ranges from -40°C to 85°C for robust industrial usage. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height enable easy PCB integration.

Coil resistance is precisely 200 ohms with a coil power consumption of 400mW. Series RT2 model with solder terminal type ensures secure connections. Compliance with multiple standards including CQC, REACH, RoHS, UL, and VDE guarantees quality and safety.

Ideal for automation, security lighting, heating systems, and various interface applications.

This power relay is extensively suitable for interface control, automation systems, domestic applications, security lighting, and heating systems in both commercial and industrial environments. The relay’s robust design and compliance with international standards make it a dependable choice for critical switching applications.
