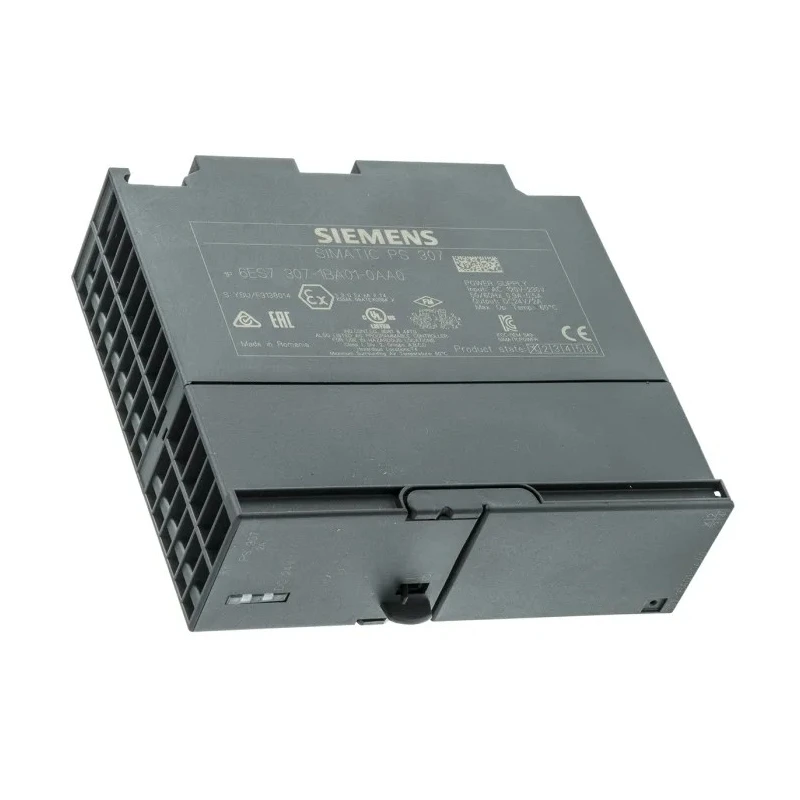

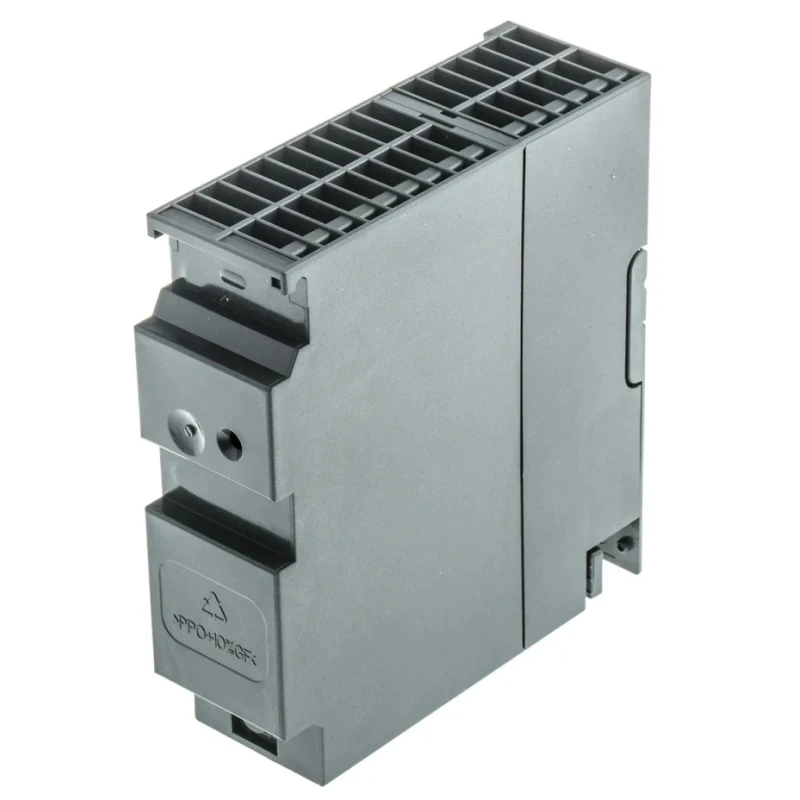

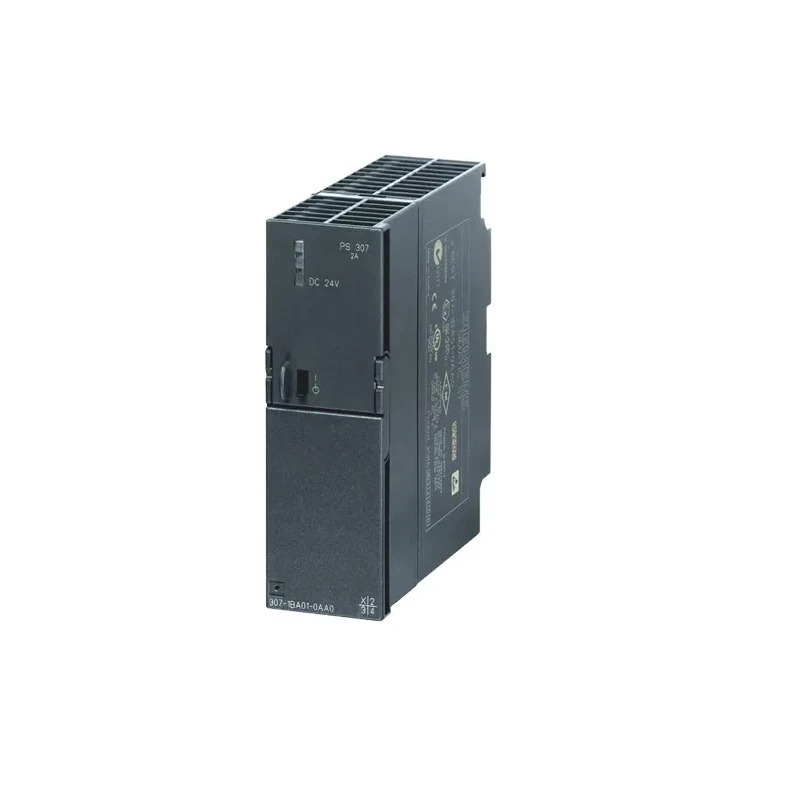

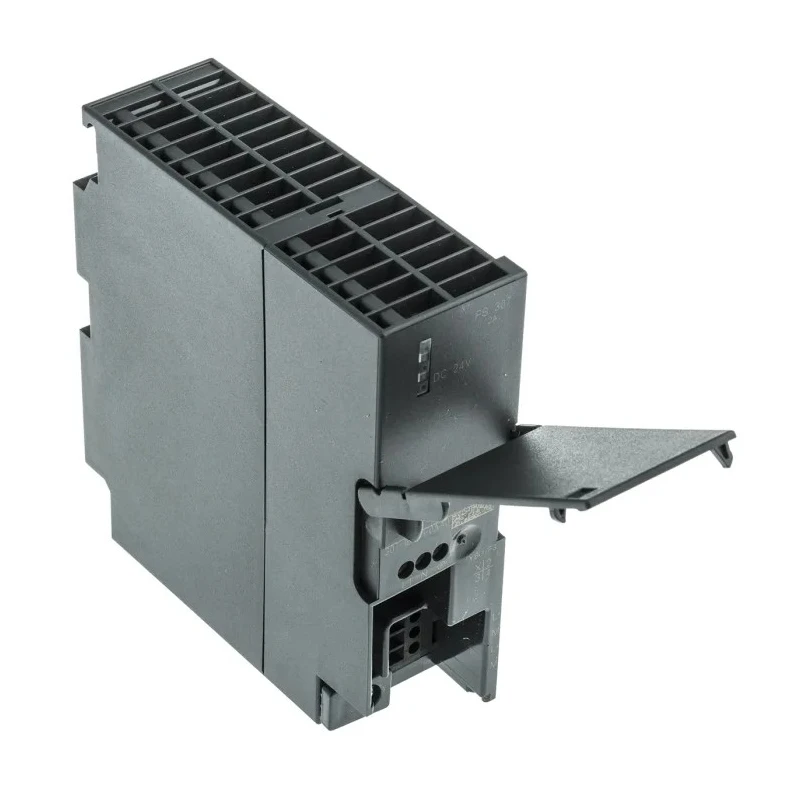

Siemens SIMATIC S7-300 Switched Mode DIN Rail Power Supply 132V AC Input 24V DC, 2A Output, 48W 6ES7307-1BA01-0AA0
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Siemens |
| Power | 48W |
| Efficiency | 84% |
| Height | 125mm |
| Model | 6ES7307-1BA01-0AA0 |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | SIMATIC S7-300 |
| Output Current | 2A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 132V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | cULus, CE |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-1252 Brand: [Siemens](https://in.rsdelivers.com/brands/siemens)Manufacturers Part No.: 6ES7307-1BA01-0AA0 Distrelec Article No.: 16988863 |
Key Features
- Switched mode power supply designed for SIMATIC S7-300 controllers.
- Compact DIN rail mountable form factor with dimensions 125mm (H) x 40mm (W) x 125mm (D).
- Automatic input voltage selection from 85 to 132V AC ensures stable power supply.
- Load regulation of 0.2% maintains output voltage within tight tolerance.
- Short circuit protection enhances safety and reliability in industrial environments.
- IP20 rated enclosure suitable for standard industrial electrical installations.
- Efficiency rated at 84% for reliable energy usage.
- Operating temperature range from 0°C to 60°C for versatile application conditions.
Product Description
Siemens 6ES7307-1BA01-0AA0 DIN Rail Power Supply is a switched mode power supply designed to deliver a stable 24V DC output at 2A from an AC input voltage range of 85 to 132V. It is ideally suited for powering industrial automation components, particularly controllers in the SIMATIC S7-300 series.
This power supply features automatic input voltage range selection, eliminating the need for manual adjustment and ensuring consistent performance despite fluctuations in input voltage. Its compact design, measuring 125mm in height, 40mm in width, and 125mm in depth, allows easy mounting on standard DIN rails within industrial control panels.
With an efficiency rating of 84%, this unit ensures reliable energy transfer while minimizing power loss. The power supply includes integral short circuit protection to safeguard connected equipment and maintain system safety.
The unit maintains output voltage stability with a low load regulation of 0.2%, providing clean and consistent power for sensitive industrial equipment such as sensors and relays. An LED indicator simplifies status monitoring during installation and maintenance.
This DIN rail power supply has an IP20 protection rating, making it suitable for installation in normal industrial environments without exposure to liquids or dust ingress. It supports operation across a temperature range from 0°C to 60°C, accommodating diverse environmental conditions.
Certified by cULus and CE standards and classified for use in hazardous locations with ATEX certification, this power supply meets rigorous safety and compliance requirements for industrial applications.
In summary, the Siemens 6ES7307-1BA01-0AA0 DIN Rail Power Supply is a reliable and efficient solution for powering control systems and industrial automation components in manufacturing, water treatment, HVAC, and other industrial sectors.
Switched mode power supply designed for SIMATIC S7-300 controllers. Automatic input voltage selection ensures stable operation from 85 to 132V AC. Provides 24V DC at 2A output with 48W power rating. Short circuit protection for enhanced safety.
Compact DIN rail mount design with IP20 rating. Low load regulation of 0.2% for stable voltage supply. Efficiency of 84% for optimized power usage. Operating temperature range of 0°C to 60°C. cULus, CE compliant, and ATEX certified for hazardous areas.
Explore more DIN Rail Power Supplies and Siemens products on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable output of 24V DC at 2A, with a total power rating of 48W.
The power supply automatically selects an input voltage range from 85 to 132V AC.
It has an efficiency rating of 84%, ensuring reliable energy usage.
The dimensions are 125mm in height, 40mm in width, and 125mm in depth.
It has an IP20 rating, indicating suitability for standard industrial environments without exposure to liquids or dust.
It operates effectively within a temperature range of 0°C to 60°C.
Yes, it includes short circuit protection to enhance safety and reliability in industrial applications.
It is certified by cULus and CE standards, and is also ATEX certified for hazardous areas.
This model has one output.
It is classified as a switched mode power supply.
The country of origin for this model is Romania.
