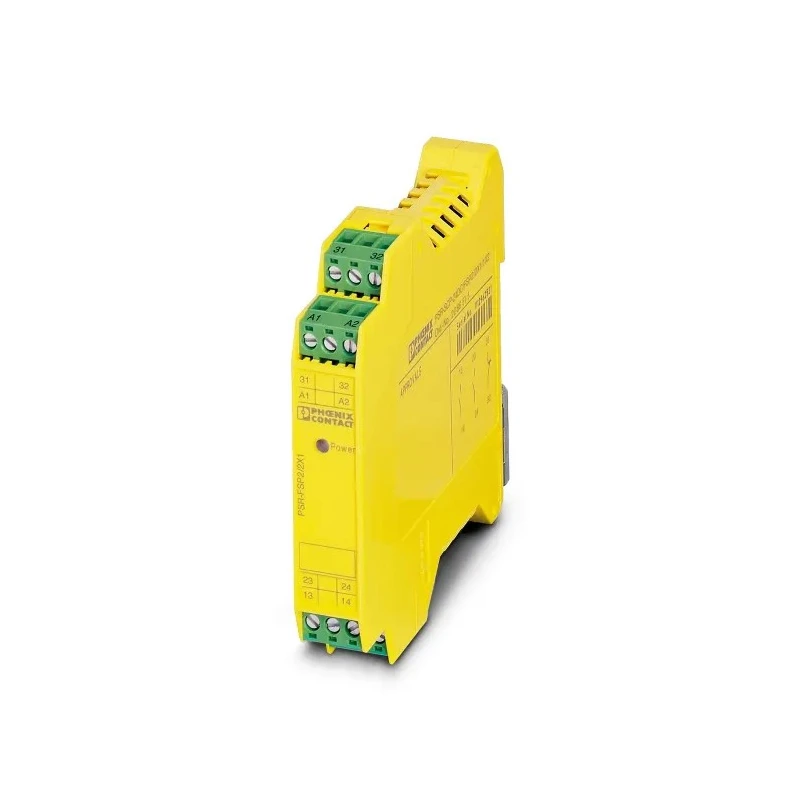

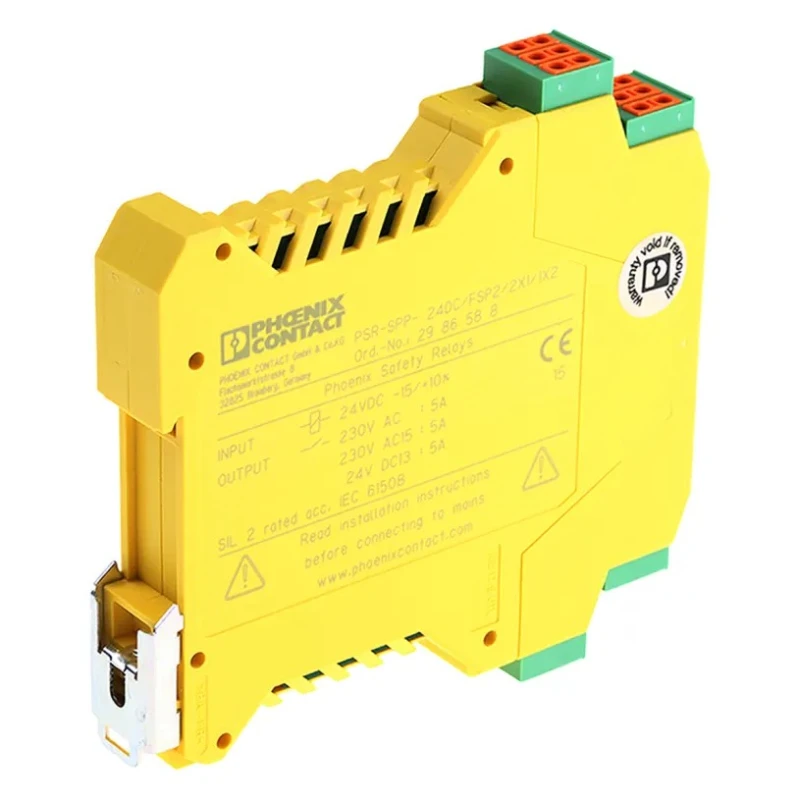

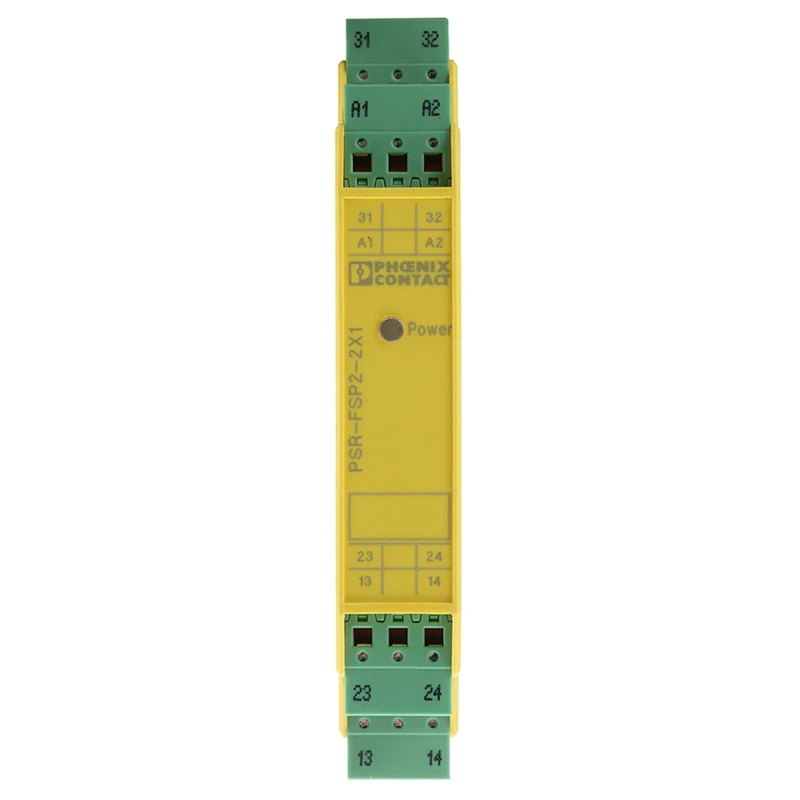

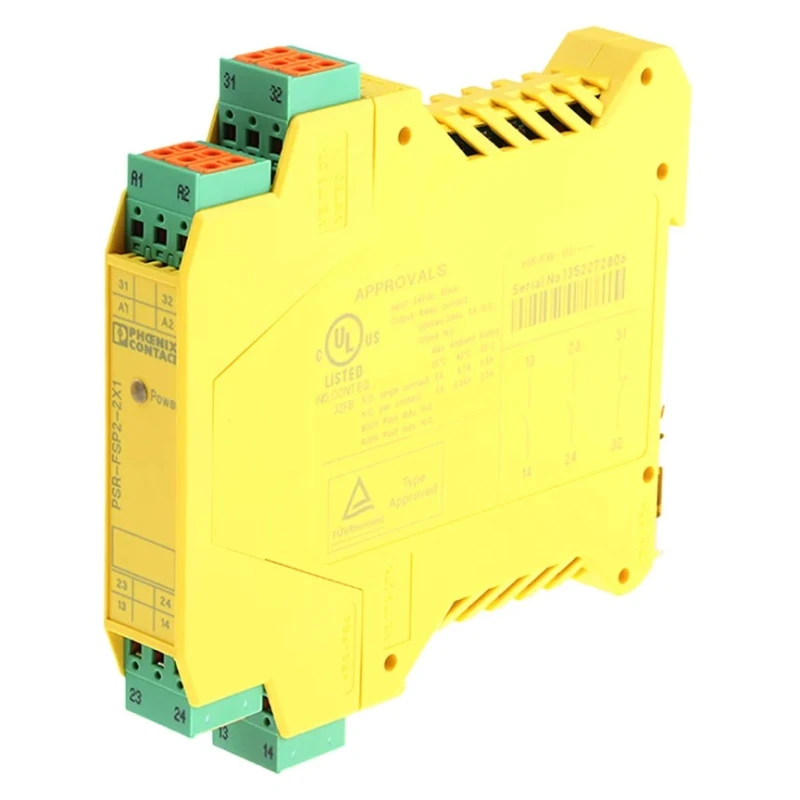

Phoenix Contact 24V dc Coupling Relay with 3 Safety Contacts PSR-SPP-24DC/FSP2/2X1/1X2 FSP2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 114.5mm |
| Length | 112mm |
| Model | FSP2 |
| IP Rating | IP54 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | PSR-SPP- 24DC/FSP2/2X1/1X2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Safety Category | 2 |
| Terminal type | Screw |
| Standards/Approvals | EAC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-5266Brand: Phoenix ContactManufacturers Part No.: 2986588Distrelec Article No.: 30402042 |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Contact Current | 100mA |
| Safety Contacts | 3 |
Key Features
- Compact dimensions of 17.5mm width, 112mm length, and 114.5mm height allow installation in space-constrained environments.
- Features 3 force-guided safety contacts ensuring operational reliability and malfunction safety.
- Coil voltage rated at 24V dc with switching voltage capabilities of 250V dc and 250V ac.
- IP54 rating provides protection against dust ingress and water splashes for enhanced durability.
- Designed with screw terminals and DIN rail mount for easy installation in control panels.
- Reinforced insulation offers surge protection up to 6kV to safeguard connected equipment.
- Suitable for industrial, manufacturing, process control, and automation systems requiring SIL 2 level safety reliability.
- Operates reliably between -20°C to 55°C ambient temperature, ensuring broad industrial applicability.
Product Description
The Phoenix Contact FSP2 24V dc Coupling Relay with 3 Safety Contacts is engineered to provide secure electrical signal coupling and high safety performance in industrial automation and process control applications. Designed with compact dimensions (17.5mm W x 112mm L x 114.5mm H), it fits efficiently within tight control cabinet spaces while offering robust performance.
This coupling relay utilizes force-guided contacts that prevent simultaneous closing of circuits, even during faults, ensuring user and system safety. The device’s reinforced insulation withstands surge voltages up to 6kV, protecting sensitive equipment from transient surges common in industrial environments.
It operates on a 24V dc coil voltage, capable of switching DC and AC voltages up to 250V, with a contact current rating of 100mA. Installation is streamlined via screw terminals and standard DIN rail mounting, facilitating quick integration into existing electrical systems.
Designed for reliability, the relay exhibits mechanical durability of one million cycles and complies with key European standards (DIN EN 50178/VDE 0160) along with EAC approvals, suitable for use in SIL 2 safety category applications.
The relay’s operational temperature range from -20°C up to 55°C supports a variety of industrial environments including manufacturing, automation, water treatment, and HVAC systems.
Compact size enables space-efficient panel design. Force-guided safety contacts enhance system reliability. Reinforced insulation protects against high voltage surges. SIL 2 certification ensures suitability for safety-critical control.
Fits standard DIN rail for convenient mounting. Screw terminals facilitate secure electrical connections. Certified to international safety and performance standards. Durable design supports long service life in industrial settings.
Explore the Phoenix Contact range of Safety Relays at EnvMart for reliable automation and safety system components designed to meet stringent industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V DC.
It has compact dimensions of 17.5mm in width, 112mm in length, and 114.5mm in height.
This relay can switch voltages up to 250V DC and 250V AC.
This model features 3 force-guided safety contacts.
It operates reliably between -20°C and 55°C ambient temperature.
It is designed for DIN rail mounting, facilitating easy installation in control panels.
The relay has an IP54 rating, providing protection against dust ingress and water splashes.
The contact current rating for this relay is 100mA.
It complies with key European standards such as DIN EN 50178/VDE 0160 and has EAC approvals.
This model is equipped with screw terminals for secure electrical connections.
It is designed for use in SIL 2 safety category applications.
The country of origin for this relay is Germany.
