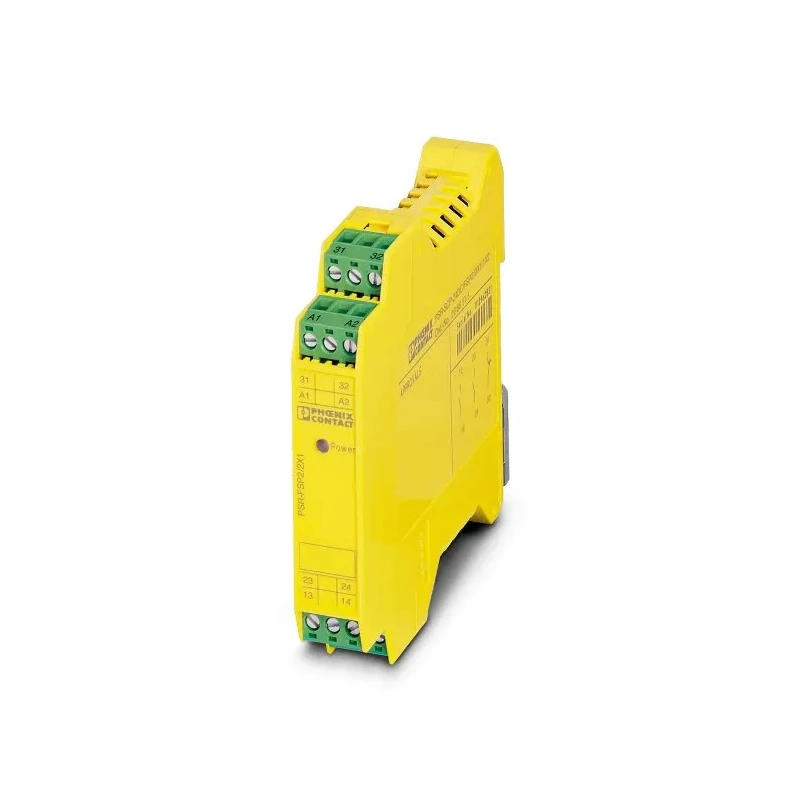

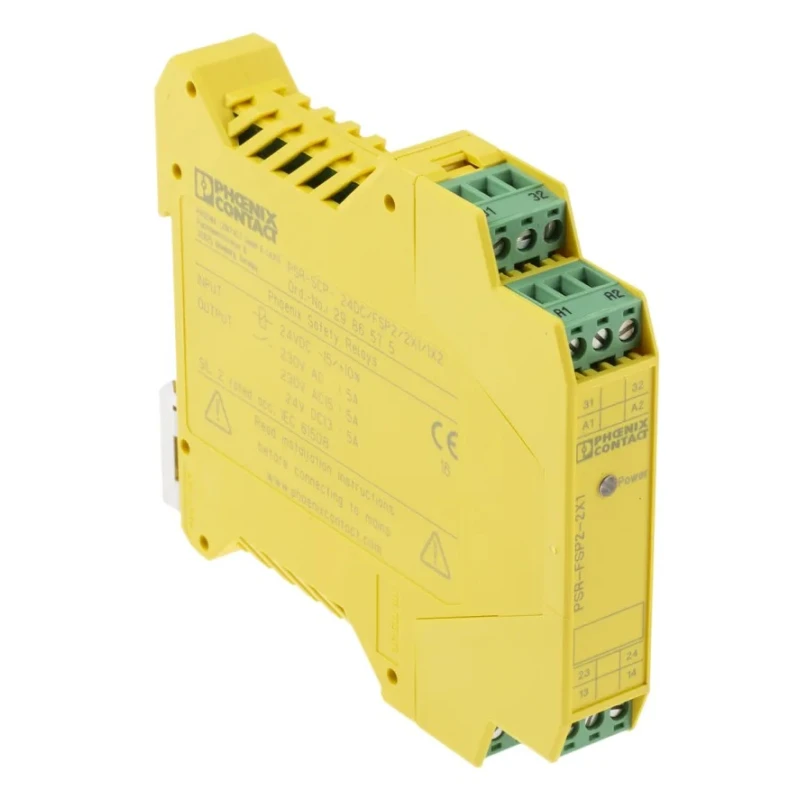

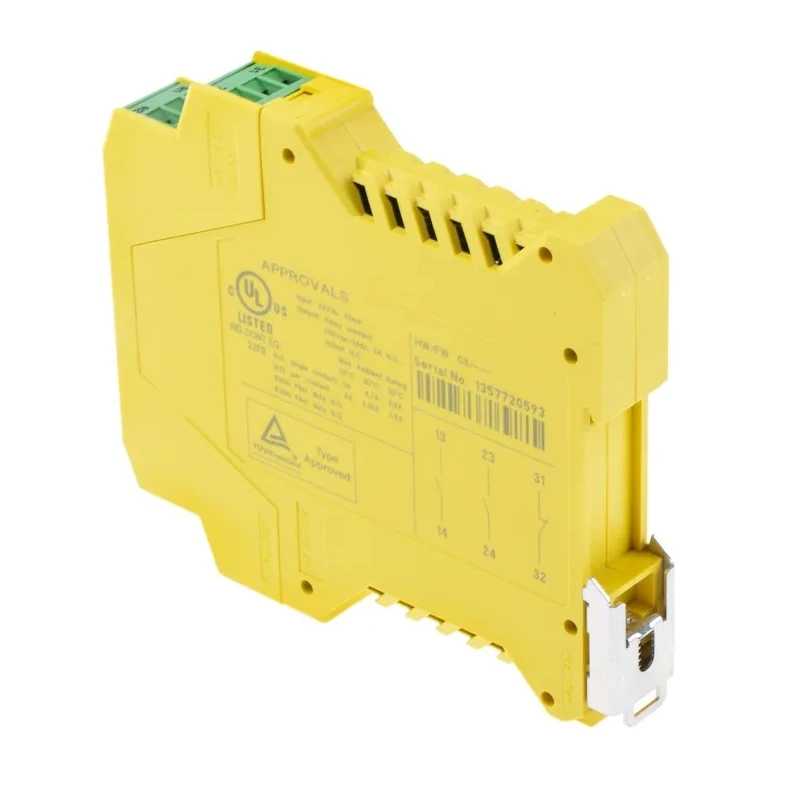

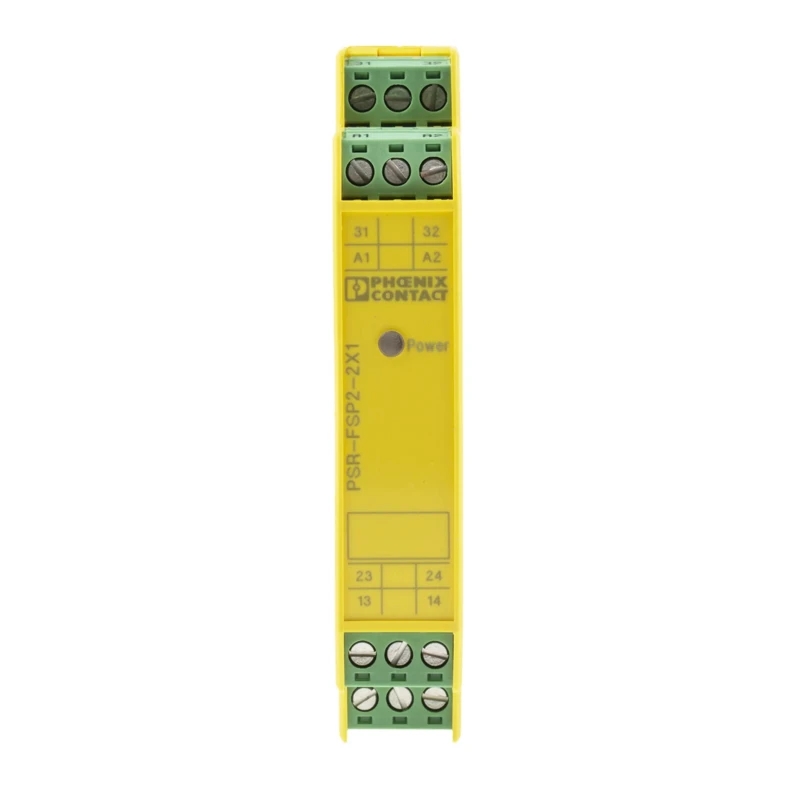

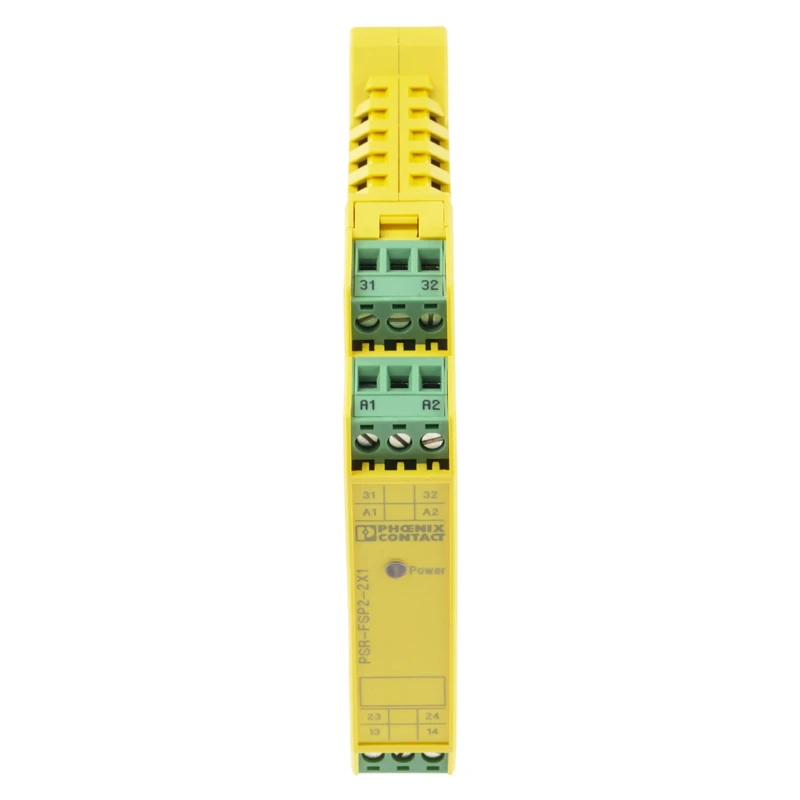

Phoenix Contact PSR-SCP 24V DC Coupling Relay with 3 Safety Contacts 2986575

Phoenix Contact 2986575 is a 24V DC coupling relay designed with 3 safety contacts for enhanced safety in industrial applications. It is primarily used to improve the safety of automation and manufacturing equipment by automatically cutting power in hazardous situations, thus mitigating risks to personnel and machinery.

This safety relay features a screw terminal type connection and can be mounted flexibly on DIN rails, enabling easy integration into existing control systems. It is rated IP54, offering good protection against dust ingress and water splashes, making it suitable for challenging industrial environments.

The relay offers a switching voltage capacity of 250V AC and 250V DC, suitable for a wide range of control voltage scenarios, and supports a contact current of 100mA. Operating temperatures range from -20°C to 55°C, allowing use in varied climatic conditions.

Equipped with 3 safety contacts to ensure secure operation. Fast response time of 50ms and a recovery time of 1ms for timely hazard detection. Mechanical service life of up to 10 million cycles, assuring long-lasting reliability.

Compact design with dimensions 99mm length, 17.5mm width, and 114.5mm height minimizes control panel space usage. DIN rail mounting for simple and versatile installation. Compliance with IEC and RoHS standards confirming safety and environmental responsibility.

IP54 protection rating suitable for industrial environments. 24V DC coil voltage with screw terminal connection provides robust electrical contact. Designed for industrial automation, manufacturing, and safety control applications.

This relay is manufactured in Germany and meets stringent quality and safety standards. It is essential equipment for industrial control panels requiring rapid, reliable safety switching. Discover more products in the Safety Relays category at EnvMart to support your industrial automation needs.
