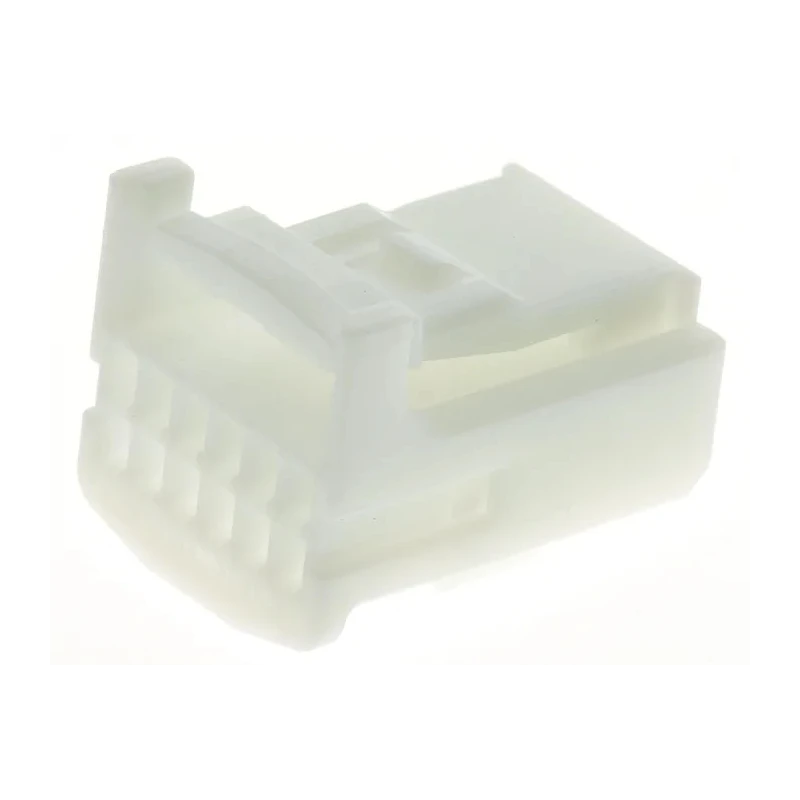

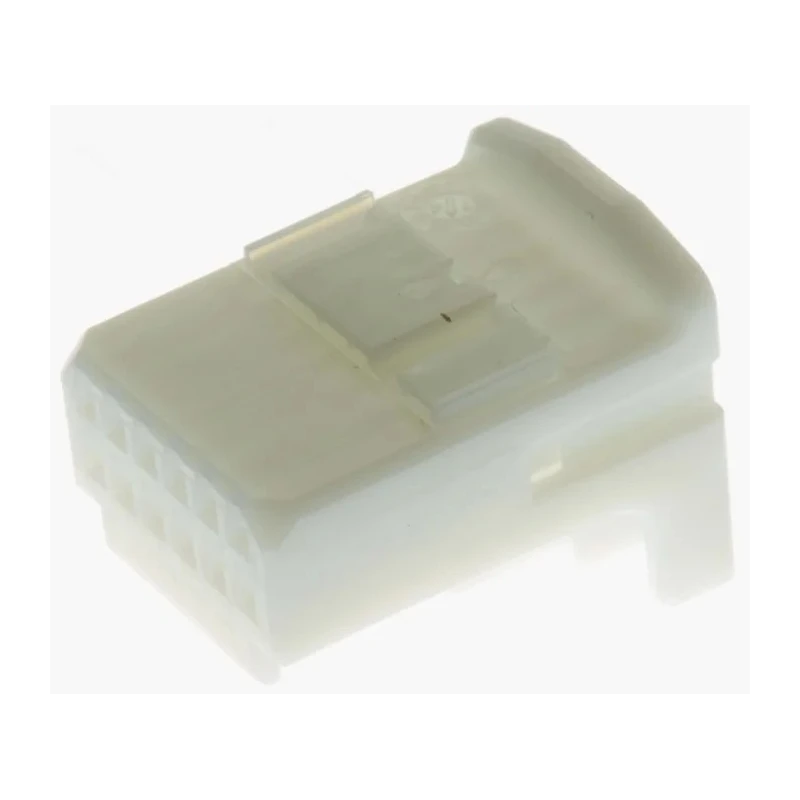

TE Connectivity MULTILOCK 025 Male Connector Housing 2.2 mm Pitch 12 Way 2 Row Straight 1318774-1
Specifications
| Brand | TE Connectivity |
|---|---|
| Orientation | Straight |
| Length | 15.4mm |
| Width | 15.8mm |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | MULTILOCK 025 |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| For Use With | Wire-to-Board Connector |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1407PBrand: TE ConnectivityManufacturers Part No.: 1318774-1 |
| Number of Contacts | 12 |
| Connector Gender | Male |
Key Features
- High-density design with 2.2 mm pitch supports compact wiring applications.
- 12 contacts arranged in 2 rows provide reliable electrical connections.
- Constructed with durable PBT housing material for robust performance.
- Polarized and color-coded housings prevent mismating and ease identification.
- Male connector gender designed for cable mount applications.
- Includes retainer blocks ensuring terminal position assurance for secure contacts.
- Suitable for automotive safety, driver convenience, multimedia, and ECU systems.
- Compatible with TH 025 Series terminals and connectors, ordered separately.
Product Description
TE Connectivity 1318774-1 MULTILOCK 025 Male Connector Housing is designed with a compact 2.2 mm pitch and arranged with 12 contacts over 2 rows to enable high-density wiring in electronic assemblies.
The housing is made of robust PBT material enhancing durability and electrical insulation. Its polarized and color-coded design prevents mismating, facilitating ease of installation and maintenance.
The connector housing is intended for cable mount applications with a male connector gender, making it suitable for wire-to-board connector uses. It measures 15.4 mm in length and 15.8 mm in width, ideal for constrained PCB footprint areas.
Retainer blocks in the housing secure terminal position assurance, ensuring consistent and reliable electrical contact engagement.
These connectors are widely used in automotive safety and security systems, driver convenience modules, multimedia stations, display screens, and airbag ECU connections, reflecting its suitability for demanding industrial and automotive environments.
TE Connectivity's TH 025 series connectors such as this 1318774-1 model provide high performance in limited space applications with low mating force connectors that resist fretting corrosion.
The series includes PCB headers, receptacle housings, tab housings, and contacts. Terminals and contacts are typically ordered separately for custom assembly needs. High-density 2.2 mm pitch for compact wiring. 12 way, 2 row configuration supports multiple circuits.
Durable PBT housing material with excellent insulation. Polarization and color coding prevent incorrect mating. Retainer blocks assure terminal positions. Designed for automotive and industrial electronic applications. Compatible with TH 025 series connectors and terminals.
Explore the extensive range of Connector Housings on EnvMart for your precise industrial and automotive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the MULTILOCK 025 Male Connector Housing is 2.2 mm, designed for high-density wiring applications.
This model features 12 contacts arranged in 2 rows, providing reliable electrical connections.
The housing is constructed from durable PBT material, which enhances its durability and electrical insulation.
The connector housing measures 15.4 mm in length and 15.8 mm in width, making it suitable for constrained PCB footprint areas.
It is suitable for automotive safety, driver convenience, multimedia, and ECU systems, reflecting its use in demanding industrial environments.
This connector housing has a male connector gender, designed specifically for cable mount applications.
Yes, it includes retainer blocks that ensure terminal position assurance for secure contacts.
This model is compatible with TH 025 series terminals and connectors, which are ordered separately for custom assembly needs.
The orientation of this connector housing is straight, facilitating easier installation in various applications.
The contacts are arranged in 2 rows, allowing for a compact and efficient wiring setup.
This connector housing supports cable mounting, making it suitable for wire-to-board applications.
