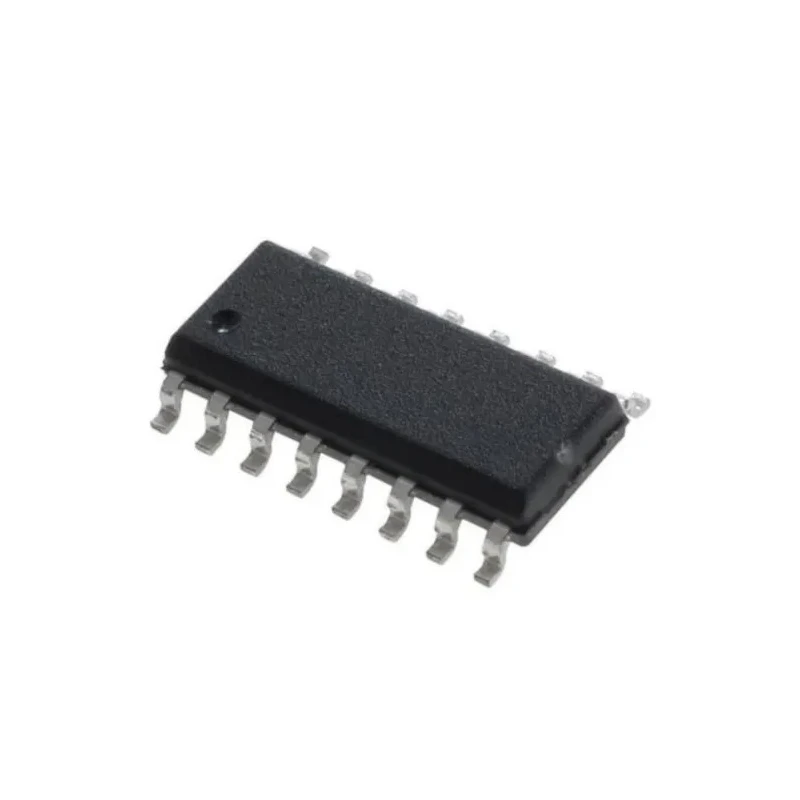

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG201BDY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG201BDY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG201B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-5187Brand: VishayManufacturers Part No.: DG201BDY-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- Features four independent single-pole single-throw switches for versatile signal routing.
- Compatible with CMOS/TTL logic levels providing ease of integration.
- Operates with a maximum supply voltage of ±22V for high-voltage signal handling.
- Low on-resistance of 200Ω ensures minimal signal attenuation.
- Suitable for surface-mount PCB assembly with a compact 16-pin SOIC package.
- Wide operating temperature range from -40°C to 85°C supports harsh environments.
- Ideal for audio switching and precision measurement front-ends.
- Designed for industrial, laboratory, and mixed-signal electronic applications.
Product Description
Vishay DG201BDY-E3 Analogue Switch is a high-performance CMOS quad single-pole single-throw (SPST) switch intended for analogue signal multiplexing and routing in electronic and mixed-signal circuits. Housed in a compact 16-pin SOIC surface-mount package, this device operates from dual supplies up to ±22V, which allows it to handle higher voltage signals with ease. It interfaces seamlessly with standard CMOS and TTL logic levels, facilitating direct control by typical digital logic circuits.
This switch features four independent channels, each providing reliable switching performance with low on-resistance of 200Ω, ensuring minimal signal loss or attenuation during operation. The device supports broad temperature operation from -40°C to 85°C, making it suitable for use in challenging industrial and commercial environments.
Applications include audio switching in mixed-signal equipment, precision measurement front-ends for channel selection, test rig multiplexer configurations, and control signal routing on industrial PCBs. The surface-mount SOIC package facilitates automated PCB assembly and compact device layout.
Key technical parameters include a 16-pin SOIC footprint, compatibility with CMOS logic family, and conformance with RoHS material restrictions. The device does not meet automotive standards and is primarily aimed at industrial and laboratory applications.
Four independent SPST switches for flexible signal routing in multi-channel systems. Wide supply voltage range up to ±22V supports higher voltage signals. CMOS/TTL logic compatibility enables easy digital interfacing. Compact 16-pin SOIC mounting eases surface-mount PCB assembly.
Operating temperature from -40°C to 85°C suitable for various environmental conditions. Low on-state resistance of 200Ω minimizes signal attenuation. Ideal for industrial, laboratory, and mixed-signal electronics applications.
RoHS compliant material ensuring environmental safety standards. Discover more Vishay Analogue Switches and related components in the Electronics & Electricals category at EnvMart for robust and reliable signal switching solutions.
