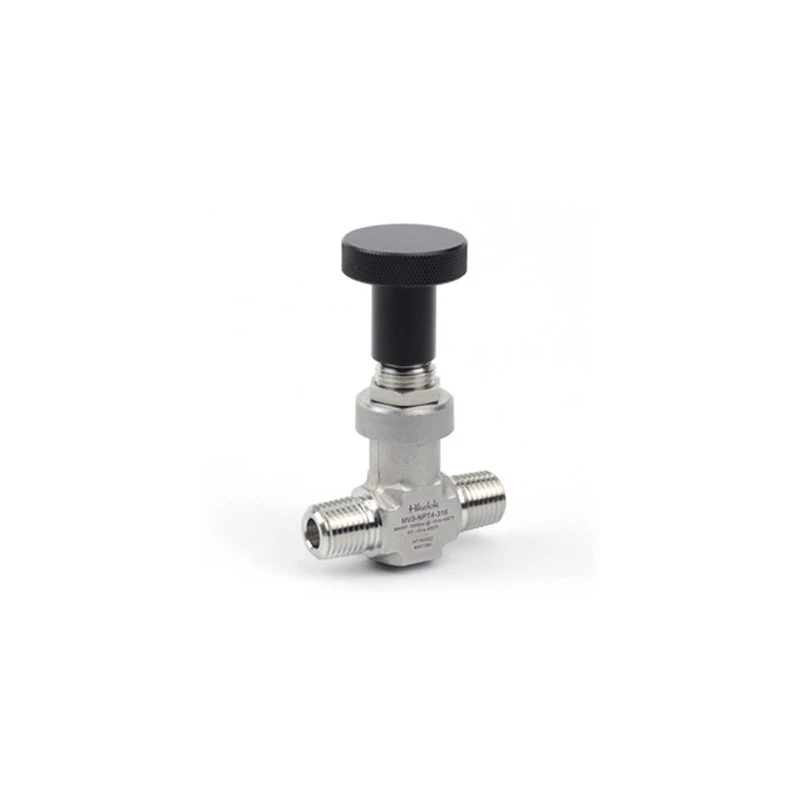

Metering Valves, MV3 Series Maximum Working Pressure Up to 1000 Psig (68.9 Bar)
Specifications
| Working Temperature | -10 Degree F to 400 Degree F (-23 Degree C to 204 Degree C) |
|---|---|
| Handle Type | Vernier and knurled |
| Series | MV3 |
| Maximum Working Pressure | up to 1000 psig (68.9 bar) |
| Orifice Size | 0.128 Inch (3.25 mm) |
| Stem taper | 6 Degree |
| Flow pattern | Straight and angle patterns |
Key Features
- Panel mountable
- Stem O-ring contains system fluid
- Variety of end connections
Product Description
Metering Valves, MV3 Series Maximum Working Pressure Up to 1000 Psig (68.9 Bar) have been well accepted and widely used in a variety of industries for many years. A wide variety of end connectors are offered for all types of installation. NACE compliant materials and oxygen clean are also available, along with an extensive list of materials of construction. Working pressure is up to 1000 psig (68.9 bar),working temperature is from -10 degree f to 400 degree f (-23 Degree c to 204 Degree C).Every metering valve is factory tested with nitrogen at 1000 psig (69 bar). Shell testing is performed to a requirement of no detectable leakage with a liquid leak detector.
- Vernier and knurled handle
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MV3 series metering valves have a maximum working pressure of up to 1000 psig (68.9 bar).
These valves operate within a temperature range of -10°F to 400°F (-23°C to 204°C).
This model features a vernier and knurled handle type for precise flow control.
The orifice size for the MV3 series is 0.128 inches (3.25 mm).
The MV3 series supports both straight and angle flow patterns.
Yes, NACE compliant materials are available for the MV3 series metering valves.
Every metering valve is factory tested with nitrogen at 1000 psig (69 bar) to ensure no detectable leakage.
The stem taper for these valves is 6 degrees.
The panel mountable feature allows for easy installation and integration into various systems.
Shell testing is performed to ensure no detectable leakage using a liquid leak detector.
