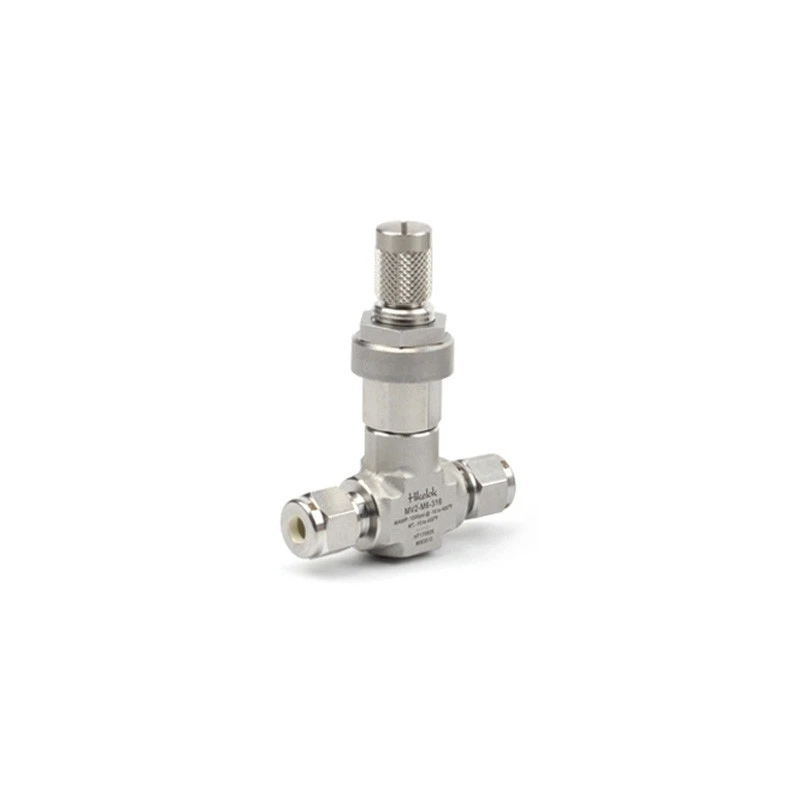

Metering Valves, MV2 Series Maximum Working Pressure Up to 1000 Psig (68.9 Bar)
Specifications
| Working Temperature | -10 Degree F to 400 Degree F (-23 Degree C to 204 Degree C) |
|---|---|
| Series | MV2 |
| Maximum Working Pressure | up to 1000 psig (68.9 bar) |
| Stem taper | 3 Degree |
| Flow pattern | Straight angle cross and double patterns |
| One-piece forged body Orifice Size | 0.056 Inch (1.42 mm) |
Key Features
- Panel mountable
- Straight, angle, cross and double pattern
- Variety of end connections
Product Description
Metering Valves, MV2 Series Maximum Working Pressure Up to 1000 Psig (68.9 Bar) have been well accepted and widely used in a variety of industries for many years. A wide variety of end connectors are offered for all types of installation. NACE compliant materials and oxygen clean are also available, along with an extensive list of materials of construction. Working pressure is up to 1000 psig (68.9 bar),working temperature is from -10 degree f to 400 degree f (-23 Degree c to 204 Degree C).Every metering valve is factory tested with nitrogen at 1000 psig (69 bar). Shell testing is performed to a requirement of no detectable leakage with a liquid leak detector.
- Vernier and slotted handle
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MV2 Series metering valves have a maximum working pressure of up to 1000 psig (68.9 bar).
The operating temperature range for this model is from -10°F to 400°F (-23°C to 204°C).
The MV2 Series metering valves are available in NACE compliant materials and oxygen clean options, along with an extensive list of materials of construction.
The orifice size for this unit is 0.056 inches (1.42 mm).
Every metering valve is factory tested with nitrogen at 1000 psig (69 bar) and shell testing is performed to ensure no detectable leakage with a liquid leak detector.
The stem taper angle for this model is 3 degrees.
Yes, the MV2 Series metering valves are designed to be panel mountable.
These metering valves are widely used in a variety of industries, although specific applications are not detailed in the provided information.
While specific installation requirements are not detailed, the variety of end connections allows for flexible installation options.
Features include a one-piece forged body, various flow patterns, and a vernier and slotted handle for control.
