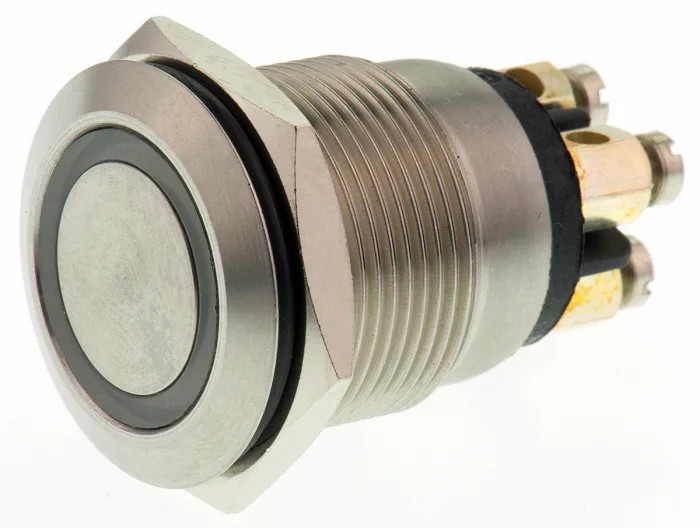

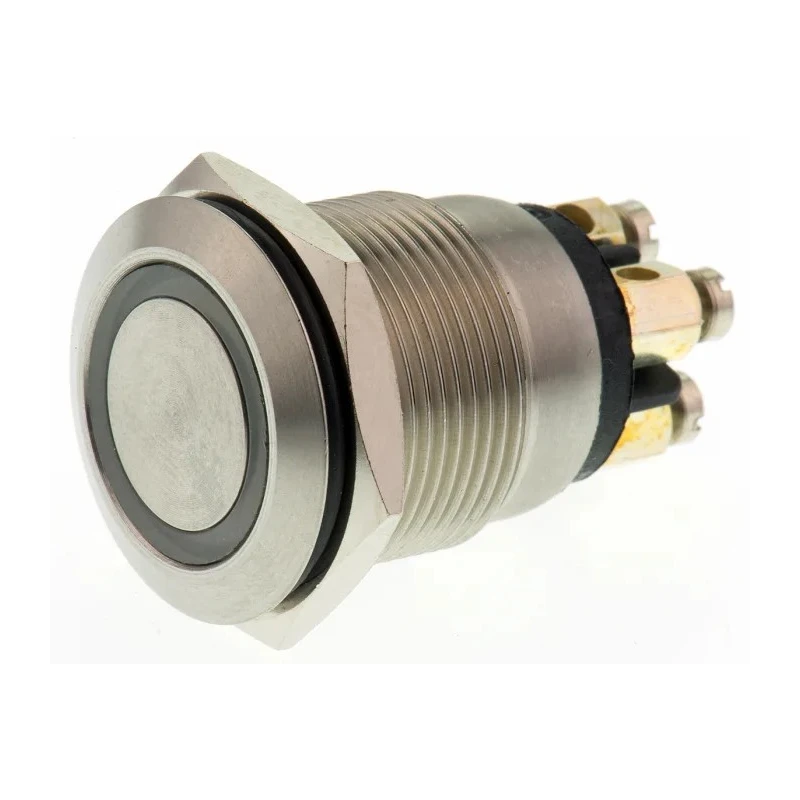

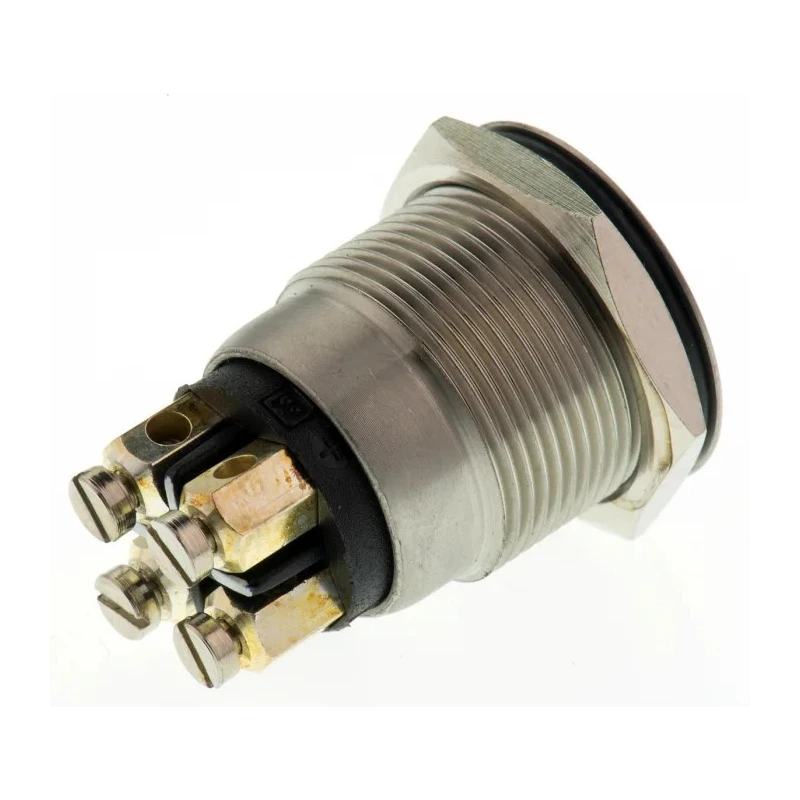

Bulgin Illuminated Push Button Switch Panel Mount 19.2 mm Cutout SPST Momentary Green and Red LED IP66 24V MPI002
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Bulgin |
| Model | MPI002 |
| IP Rating | IP66 |
| Mount Type | Panel |
| Series | MPI002 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-3071Brand: BulginManufacturers Part No.: MPI002/TERM/D1Distrelec Article No.: 30091975 |
| LED Colour | Green, Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 50mA |
Key Features
- The switch features a vandal-resistant stainless steel body and button for robust industrial use.
- Illumination is either a dot or ring style with bright daylight LEDs.
- It supports a contact DC voltage of 24V with a contact current rating of 50mA.
- The switch is rated to IP66 for water and dust resistance, suitable for harsh environments.
- Operating temperature range spans from -30°C to 70°C for wide industrial applicability.
- Designed for panel mounting with a 19.2 mm cutout size for easy installation.
- Mechanical durability is rated to 750,000 operations minimum ensuring long service life.
- Separate terminals are provided for the red and green LEDs for flexible wiring options.
Product Description
Bulgin MPI002 Illuminated Push Button Switch is a momentary, panel mounted switch designed for industrial and automation applications. It features a robust stainless steel vandal-resistant construction ensuring durability in demanding environments.
The switch mounting requires a precise 19.2 mm round cutout and the device operates on 24 V DC. Its SPST contact configuration enables a straightforward single pole, single throw functionality.
Illumination is provided by vibrant green and red LEDs capable of dot or ring illumination. The switch includes separate LED terminals to allow user-selected series resistor installation for controlled illumination voltage.
Rated to IP66, the switch offers excellent protection against dust and powerful water jets, making it ideal for industrial, manufacturing, and automation panel applications. It supports an operating temperature range from -30°C to +70°C, suitable for various environments and climates.
Vandal resistant stainless steel body and pushbutton. Momentary or push-to-make switch action with SPST contact. Green and red bright daylight LEDs with separate terminals. IP66 rated for dust tight and water resistance.
750,000 mechanical operations minimum life expectancy. 19.2 mm panel cutout for standard mounting simplicity. RoHS compliant construction ensuring environmental safety. Wide operating temperature range from -30°C to 70°C.
Bulgin MPI002 Series switches are widely used in electrical panels, industrial controls, automation machinery, and HVAC systems. Their rugged build and clear LED indication make them suitable for safety and operational signaling in commercial and industrial environments.
Explore a complete range of reliable Push Button Switches and electrical components at EnvMart for your automation and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features an SPST (Single Pole, Single Throw) contact configuration, allowing for straightforward momentary operation.
This model can operate at a maximum temperature of 70°C, making it suitable for various industrial environments.
It requires a panel cutout size of 19.2 mm for proper installation.
The switch features LED illumination that can be configured as either a dot or ring style with vibrant green and red colors.
The contact DC voltage rating for this switch is 24V, suitable for various applications in automation and industrial controls.
The minimum operating temperature for this switch is -30°C, allowing it to function in cold environments.
The switch is rated for a minimum of 750,000 mechanical operations, ensuring a long service life in demanding applications.
This switch is designed for panel mounting, making it suitable for installation in control panels and similar applications.
Yes, this switch is RoHS compliant, ensuring it meets environmental safety standards.
The switch has a contact current rating of 50mA, which is suitable for various low-power applications.
The switch features a vandal-resistant stainless steel body and button, providing durability in industrial environments.
It is rated to IP66 for dust and water resistance, making it suitable for harsh industrial environments and applications.
