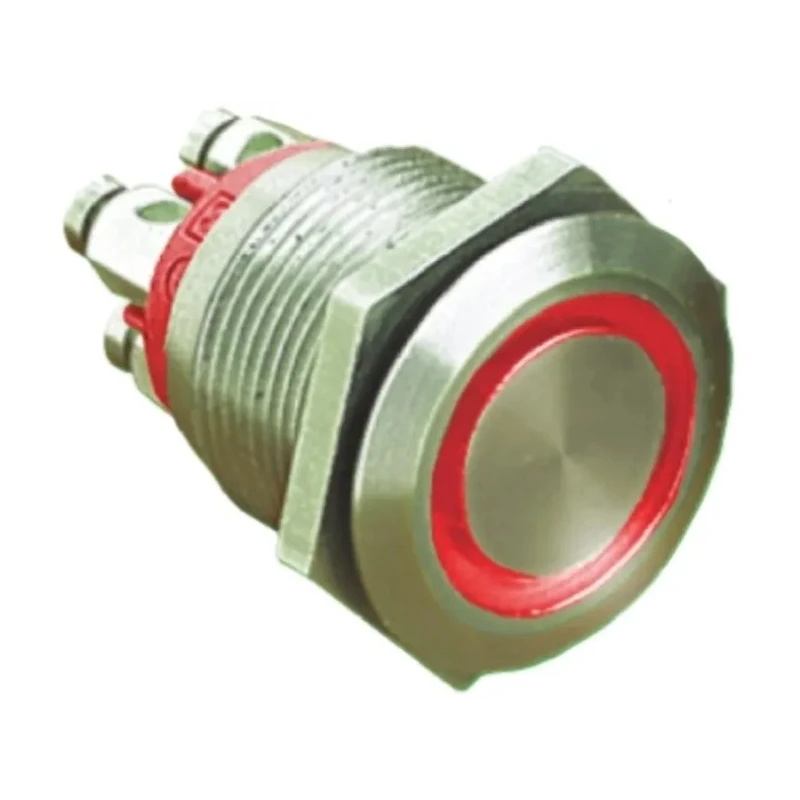

Bulgin Series Illuminated Push Button Switch, Momentary, Panel Mount, 19.2 mm Cutout, SPST, Red LED, IP66, 24 V dc MPI002

Bulgin MPI002 Series Illuminated Push Button Switch MPI002 is a high-quality, vandal resistant momentary push button designed for panel mounting applications. Featuring a 19.2 mm panel cutout and a stainless steel actuator with a silver finish, this switch offers durability and resistance to wear and tear, making it ideal for industrial and automation use.

This switch operates at 24 V dc with a single-pole single-throw (SPST) contact configuration, carrying a contact current of 50mA DC. Its actuator style is a button, delivering precise momentary operation. The product is sealed to IP66, ensuring robust protection against dust and water ingress, suitable for demanding environments.

The LED illumination is red and integrated with an internal resistor for the 24 V dc supply, enhancing visibility of the switch status in control panels. The switch also features internal transient voltage suppression (TVS) protection to withstand voltage spikes.

Designed for industrial automation, electrical control panels, and machinery applications, this push button switch supports secure terminal connections via screw terminals, and offers slight dimensional variations depending on the terminal type: 31 mm overall length for screw terminals and 32.7 mm for 2.8 mm tag terminals.

Operating temperature range from -30°C to 70°C allows for use in a wide range of climatic conditions. Compliance with RoHS confirms this switch is environmentally friendly and free from harmful substances.

The actuator has a silver button style, providing tactile and visual feedback. Vandal resistant stainless steel construction ensures longevity and security. IP66 rated sealing protects against harsh environmental factors.

Momentary switch operation with SPST contact suits control logic applications. Red LED illumination powered internally at 24 V dc for clear status indication. Internal TVS protection enhances electrical reliability and lifespan.

Screw-type terminals facilitate secure wiring and installation. Compact size with 19.2 mm panel cutout simplifies retrofitting in existing panels. Operating temperature range of -30°C to +70°C accommodates tough industrial settings.

Bulgin MPI002 illuminated Push Button Switches are widely applied in industrial automation systems, machinery controls, and electrical distribution panels. This series meets robust quality standards, ensuring dependable performance in demanding environments such as manufacturing, water treatment, and HVAC control panels.
