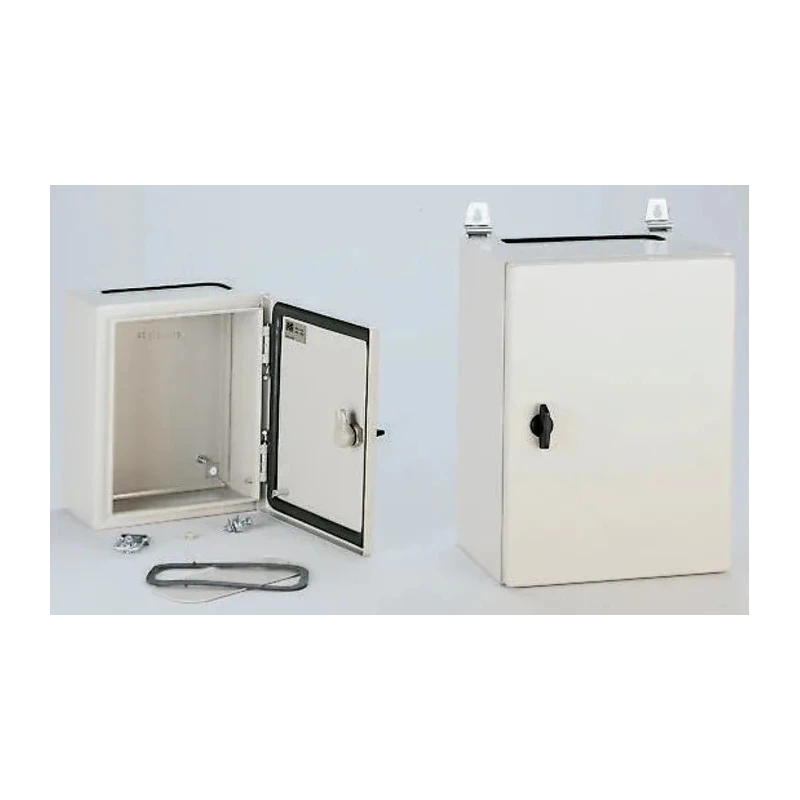

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66, 1000 mm x 600 mm x 250 mm NSYCRN106250

Schneider Electric NSYCRN106250 Spacial CRN Series Steel Wall Box Enclosure provides a high-quality, durable electrical enclosure for industrial and commercial applications. This wall box enclosure measures 1000 mm in height, 600 mm in width, and 250 mm in depth, offering ample space for electrical and automation components while maintaining a compact footprint.

Constructed from robust steel, the enclosure is finished with an epoxy-polyester powder coating in Grey RAL 7035 for corrosion resistance and aesthetic appeal. It features a plain front door which is reversible and opens up to 120°, facilitating easy access during installation and maintenance. The door is secured with a 3 mm double-bar lock to protect against unauthorized entry.

This enclosure meets IP66 rating according to IEC 60529 standards, ensuring excellent protection against dust ingress and high-pressure water jets, making it suitable for both indoor and outdoor environments. Additionally, it is rated IK10 for impact resistance as per IEC 62262, safeguarding electrical equipment from mechanical damage.

The design includes a standard gland plate for cable entry, and both the hinges and cable gland plate are removable to enable flexible installation options. The enclosure's sides are formed from a single folded section while the back is welded with a double profile creating a sealed protected area, enhancing the enclosure’s structural integrity and environmental protection.

Compliant with international standards such as RoHS, UL, IEC 62208, cULus, and REACH, this enclosure ensures safety, sustainability, and quality assurance. It is intended for various industrial automation, electrical control panels, and other electrical installations requiring a durable and secure wall-mounted enclosure.

The package contains one lock, one door, one steel body, and one cable gland plate. Wall mounting brackets and mounting plates are not supplied and must be procured separately if required.

The Schneider Electric Spacial CRN series is part of the RS Better World sustainable range, designed for disassembly and optimized for environmental responsibility. The enclosure features a compact steel body with an epoxy-polyester powder finish in Grey RAL 7035.

It includes a plain front door with reversible 120° opening and a 3 mm double-bar lock for security. The design incorporates a standard gland plate and removable hinges and cable gland plate. Conforms to IP66 and IK10 ratings for protection against dust, water, and mechanical impact.

Suitable for indoor and outdoor industrial applications including automation and control panel installations. RoHS, UL, IEC 62208, cULus, and REACH certifications ensure compliance with international standards. The enclosure is designed for wall mounting, with sides formed from a single folded section and back welded for enhanced sealing.

Includes one lock, one door, one body, and one cable gland plate in the package. For more industrial enclosures and electrical components, browse the Electrical Enclosures category on EnvMart.
