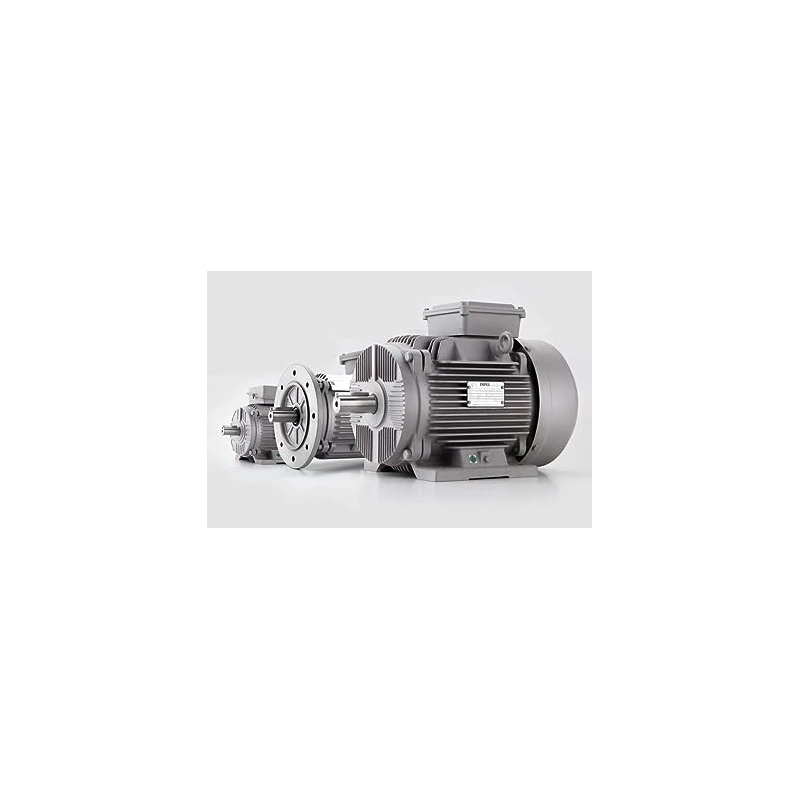

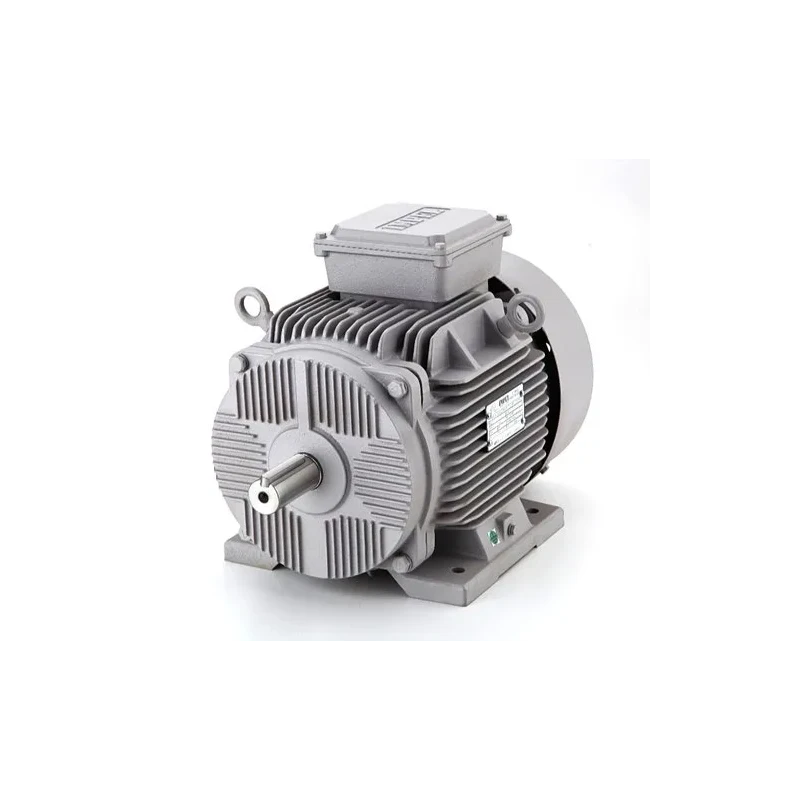

Impel 3 Phase 2HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 90S
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 1.5 kW |
| Power (HP) | 2 HP |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Power Factor | 0.85 |
| No. of Poles | 2 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 24 mm |
| Class of insulation | F |
| Frame Size (ISI) | 90S |
| Full Load Ampere At 415V | 3.1 |
| Rated Torque (Kgm) | 0.50 Kgm |
| STG Current % FLC | 650 |
| STG Torque % FLT | 230 |
| POT Torque % | 240 |
| FL Efficiency (%) IE2 | 0.813 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 3 Phase 2HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 90S From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 2 HP, which is equivalent to 1.5 kW.
The rated speed of this motor is 2880 RPM.
This unit supports foot mounting (B3).
The voltage requirement for this model is 415V with a tolerance of ±10%.
The protection type for this motor is IP44/IP55.
This motor can operate at an ambient temperature of up to 50 ºC.
This model operates on a 3-phase system.
The full load efficiency of this motor is 81.3% (IE2).
The shaft diameter of this motor is 24 mm.
The power factor for this model is 0.85.
This motor has a class F insulation rating.
The warranty period for this motor is 2 years.
