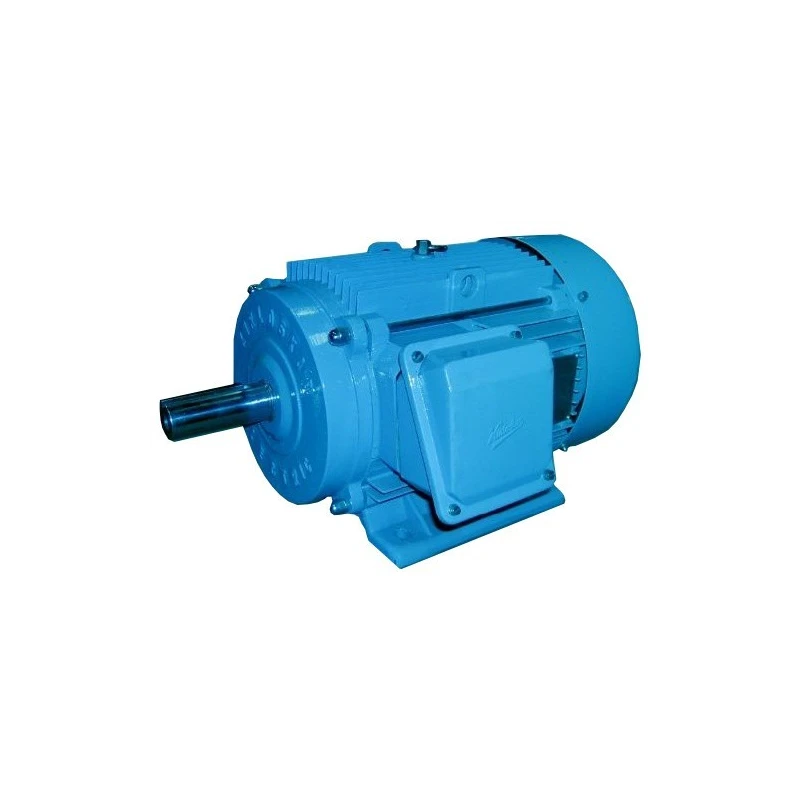

Kirloskar 7.5 kW/10 HP 2 Pole 415V 3 Phase IE2 Foot Mounted Induction Motor (RC132SM)
Specifications
| Frequency | 50 Hz5% |
|---|---|
| Type | Induction Motor |
| Voltage (V) | 415V10% |
| Mounting | Foot Mounted |
| Model | EF14 |
| Insulation Class Type | Class F |
| class | B |
| Protection Class | IP55 |
| Ambient Temperature (ºC) | 0-50 ºC |
| Rated Voltage (V) | 415V |
| Cooling | IC 411 |
| Casing | Squirrel Cage |
| Frame | RC132SM |
| Output Power Rating (kW) | 7.5 kW |
| Squirrel Cage | IE2 Efficiency |
| Combined Variations | 0.1 |
Key Features
- IE2 level efficiency as per IS 12615 - 2011 and IEC 60034-30
- High starting and pull-up torgues to accelerate the load.
- Robust and shock resistant stator construction with optimally designed ribs for cooling.
- Die-cast aluminum rotors designed to withstand the severe forces encountered during starting.
Product Description
Kirloskar 7.5 kW / 10HP 415 V 3 phase induction motor is suitable for various applications like industrial, commercial, agricultural etc. The motor has been designed using latest technologies and materials which make it highly efficient and reliable. This motor can be used as a single or multi speed motor.
- Terminal box located at RHS from driving End.
- Large terminal boxes with sufficient electrical clearances and imporved aesthetics.
- Optimum fan design for better cooling & minimum energy consumption.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kirloskar induction motor has an output power rating of 7.5 kW, which is equivalent to 10 HP.
This motor operates at a rated voltage of 415V with a tolerance of 10%.
The motor is designed to operate at a frequency of 50 Hz with a tolerance of 5%.
It is an induction motor, specifically a foot-mounted type.
The insulation class type for this model is Class F.
This motor has a protection class rating of IP55.
The motor can operate within an ambient temperature range of 0 to 50 ºC.
The motor employs IC 411 cooling for efficient heat dissipation.
It features a squirrel cage rotor designed to withstand severe forces encountered during starting.
This induction motor is suitable for various applications including industrial, commercial, and agricultural uses.
The Kirloskar RC132SM is foot mounted, allowing for stable installation.
The motor has an optimum fan design for better cooling and minimum energy consumption.
