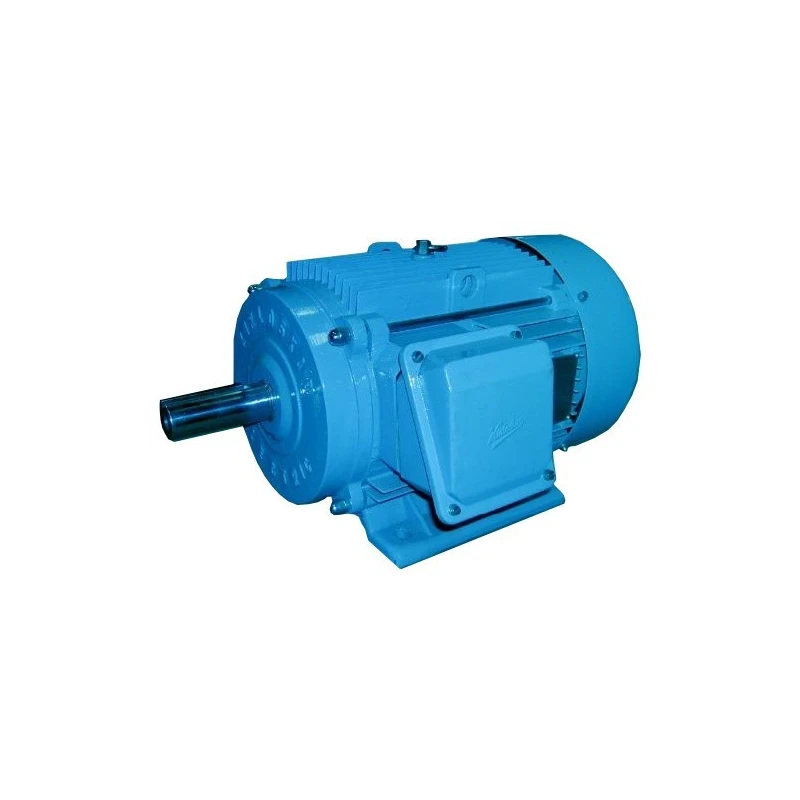

Kirloskar 11 kW/15 HP 2 Pole 415V 3 Phase IE2 Foot Mounted Induction Motor (RC160ML)
Specifications
| Frequency | 50 Hz5% |
|---|---|
| Type | Induction Motor |
| Voltage (V) | 415V10% |
| Mounting | Foot Mounted |
| Model | EF16 |
| Insulation Class Type | Class F |
| class | B |
| Protection Class | IP55 |
| Ambient Temperature (ºC) | 0-50 ºC |
| Rated Voltage (V) | 415V |
| Cooling | IC 411 |
| Casing | Squirrel Cage |
| Frame | RC160ML |
| Output Power Rating (kW) | 11 kW |
| Squirrel Cage | IE2 Efficiency |
| Combined Variations | 0.1 |
Key Features
- IE2 level efficiency as per IS 12615 - 2011 and IEC 60034-30
- High starting and pull-up torgues to accelerate the load.
- Robust and shock resistant stator construction with optimally designed ribs for cooling.
- Die-cast aluminum rotors designed to withstand the severe forces encountered during starting.
Product Description
Kirloskar 11 kW / 15HP 415 V 3 phase induction motor is suitable for various applications like industrial, commercial, agricultural etc. The motor has been designed using latest technologies and materials which make it highly efficient and reliable. This motor can be used as a single or multi speed motor.
- Terminal box located at RHS from driving End.
- Large terminal boxes with sufficient electrical clearances and imporved aesthetics.
- Optimum fan design for better cooling & minimum energy consumption.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an output power rating of 11 kW (15 HP).
The motor operates at a rated voltage of 415V with a tolerance of 10%.
It is an induction motor designed for three-phase operation.
This unit is foot mounted, allowing for stable installation.
The insulation class type for this motor is Class F.
It has a protection class rating of IP55, indicating resistance to dust and water.
The motor can operate within an ambient temperature range of 0 to 50 ºC.
It employs IC 411 cooling for efficient thermal management.
The motor operates at a frequency of 50 Hz with a tolerance of 5%.
It features a squirrel cage rotor, designed for durability during operation.
It is suitable for various applications including industrial, commercial, and agricultural use.
The frame designation for this model is RC160ML.
