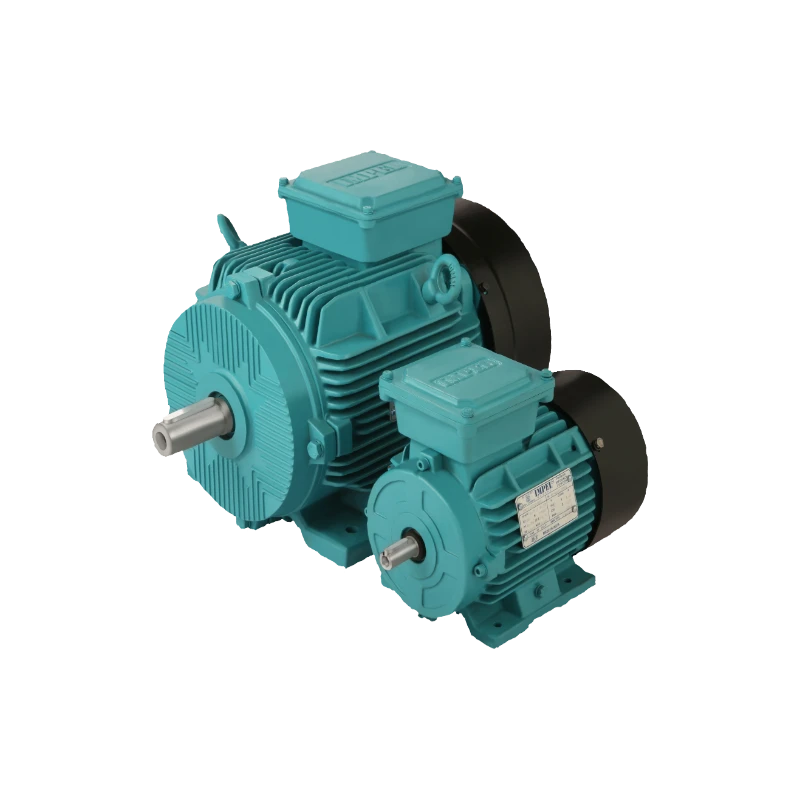

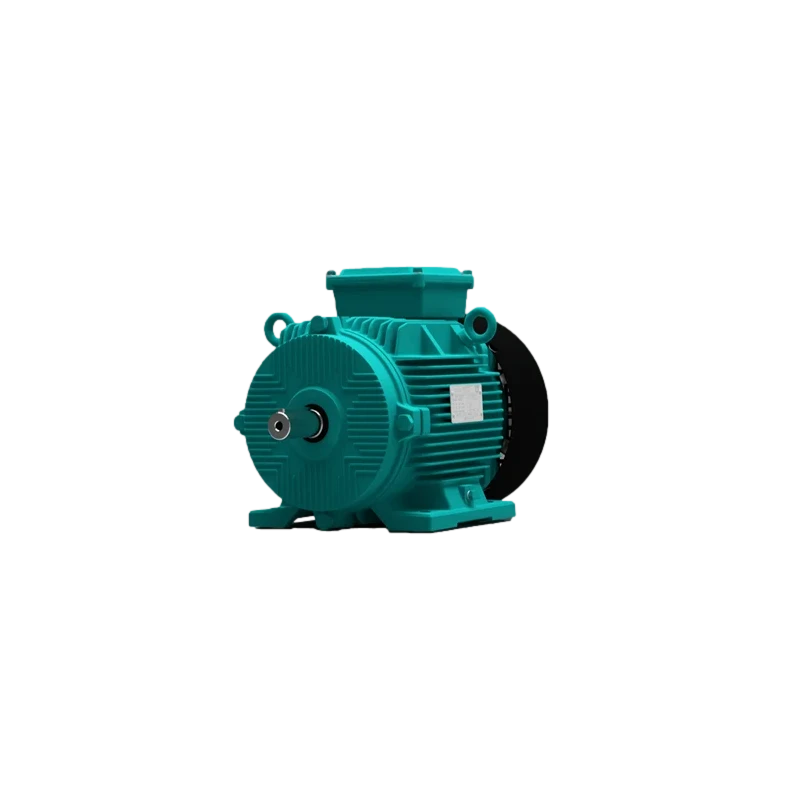

Impel 0.5HP 2 Pole Foot Mounting IE3 Induction Motor Frame Size 71
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 0.37 kW |
| Power (HP) | 0.5 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Series | IE3 Premium Efficiency |
| Power Factor | 0.74 |
| No. of Poles | 2 |
| Duty Type | S1 |
| Shaft Dia (mm) | 14 mm |
| Class of insulation | F |
| Frame Size (ISI) | 71 |
| Full Load Ampere At 415V | 0.95 |
| Rated Torque (Kgm) | 0.13 Kgm |
| STG Current % FLC | 550 |
| STG Torque % FLT | 210 |
| POT Torque % | 240 |
| Temperature rise | Limited to class B |
| FL Efficiency (%) IE3 | 0.738 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 0.5HP 2 Pole Foot Mounting IE3 Induction Motor Frame Size 71 From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 0.37 kW, which is equivalent to 0.5 HP.
This model has a frame size of 71.
It features a foot mounting configuration (B3).
The rated speed of this induction motor is 2880 RPM.
The motor operates at a voltage of 415V with a tolerance of ±10%.
This model has an IP55 protection type, suitable for various industrial environments.
The motor operates at a frequency of 50Hz with a tolerance of ±5%.
The ambient temperature limit for operation is 50 ºC.
The power factor of this induction motor is 0.74.
This model has a class F insulation rating.
The motor is rated for S1 duty type, indicating continuous operation under load.
The body of this induction motor is constructed from cast iron.
