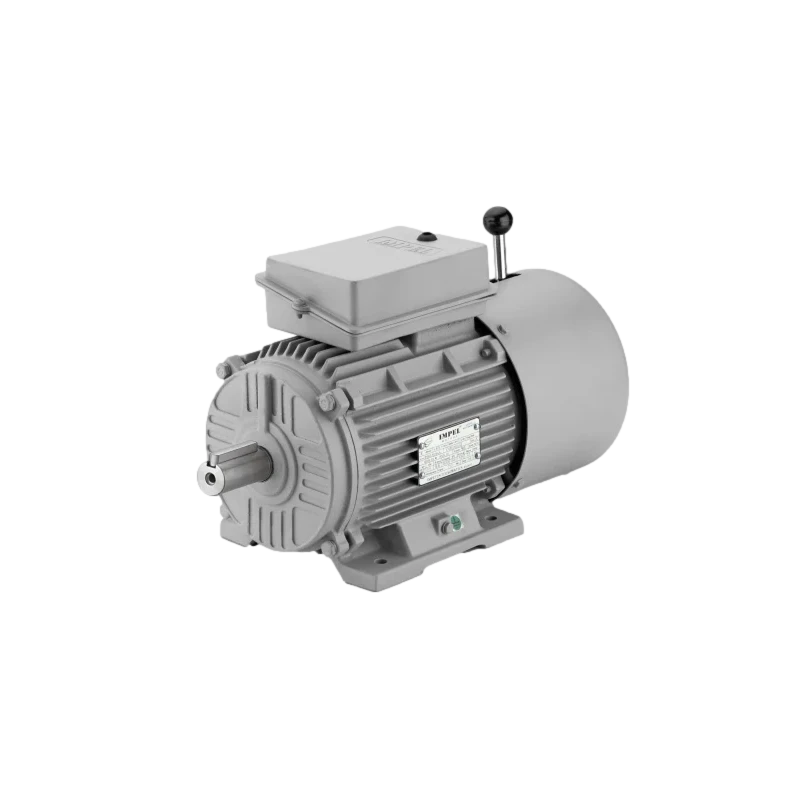

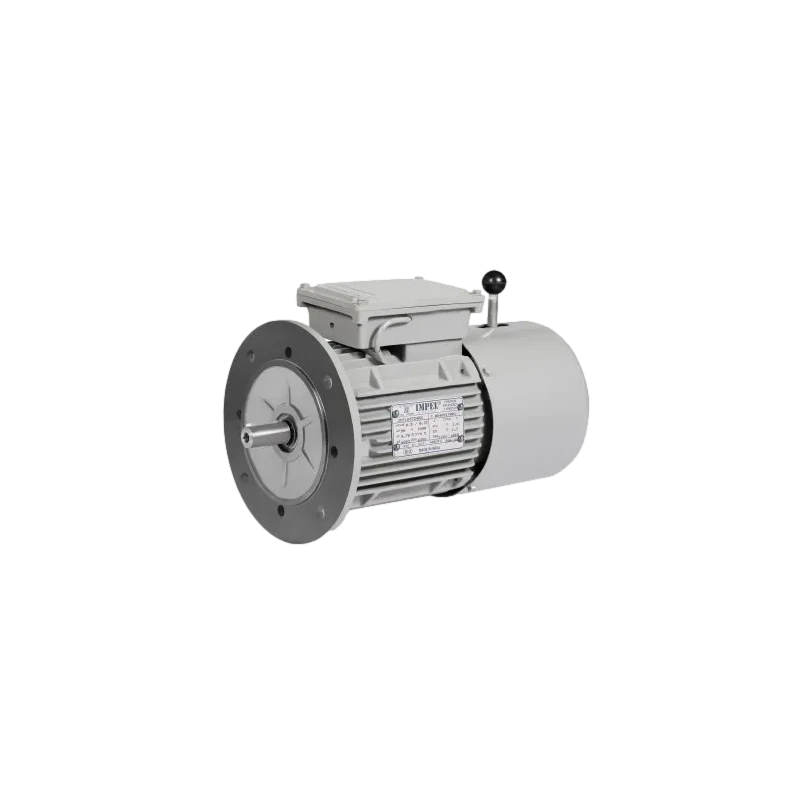

Impel 0.5HP 4 Pole Flange Mounting DC Break Motor Frame Size 71
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 0.37 kW |
| Power (HP) | 0.5 HP |
| Motor Type | AC Induction DC Brake Motor (with Emco make brake) |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1500 RPM |
| No. of Poles | 4 |
| Supply | 3 Phase AC |
| Duty Type | S1 (Compatible to S4) |
| Class of insulation | F |
| Frame Size (ISI) | 71 |
| Temperature rise | Limited to class B |
| Break Size (No.) | 8 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 0.5HP 4 Pole Flange Mounting DC Break Motor Frame Size 71 From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 0.37 kW, which is equivalent to 0.5 HP.
This model is an AC induction DC brake motor, equipped with an Emco make brake.
The rated speed of this motor is 1500 RPM.
It features a flange mounting type (B5).
The motor operates at a voltage of 415V with a tolerance of ±10%.
The frequency specification for this motor is 50Hz with a tolerance of ±5%.
This motor has a protection type of IP55.
The maximum ambient temperature for this motor's operation is 50 ºC.
This motor is suitable for operation at altitudes up to 1000 meters above sea level.
The body material of this motor is cast iron.
The motor has a class of insulation rated as F.
This model comes with a warranty period of 2 years.
