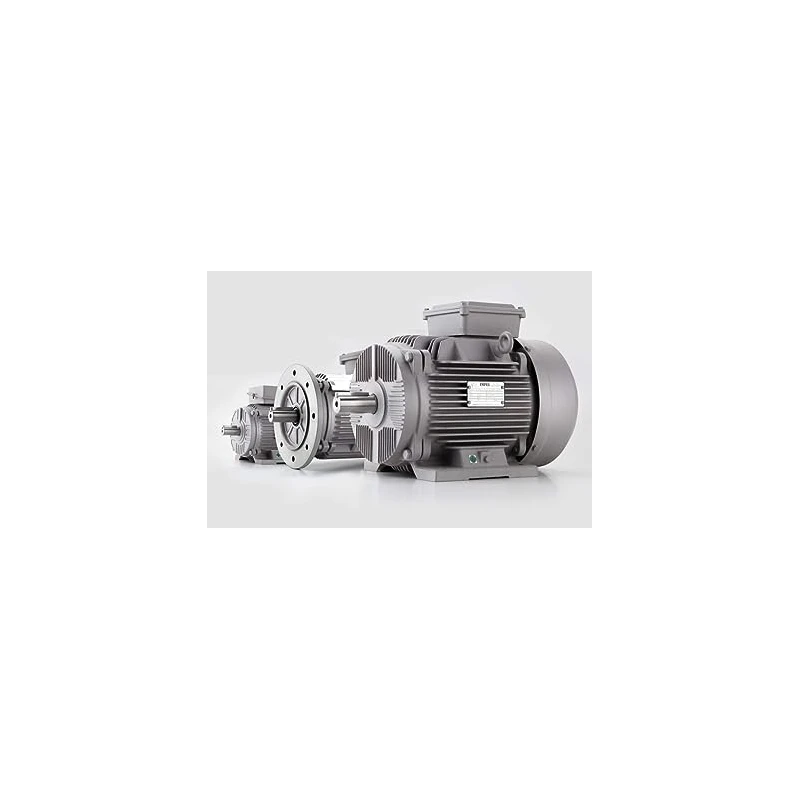

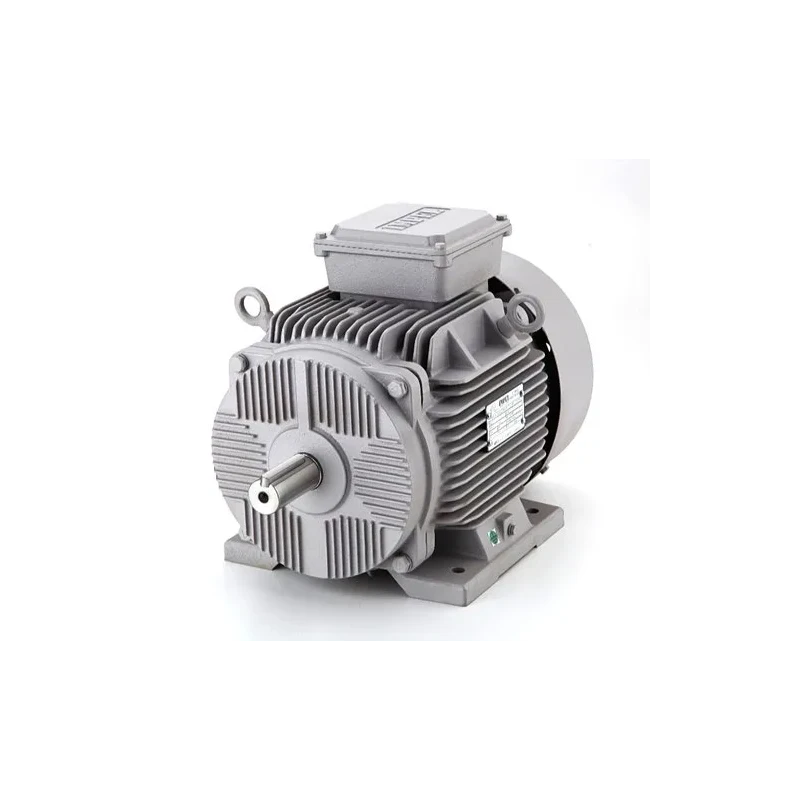

Impel 3 Phase 1HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 80
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 0.75 kW |
| Power (HP) | 1 HP |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Power Factor | 0.7 |
| No. of Poles | 2 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 19 mm |
| Class of insulation | F |
| Frame Size (ISI) | 80 |
| Full Load Ampere At 415V | 1.9 |
| Rated Torque (Kgm) | 0.25 Kgm |
| STG Current % FLC | 650 |
| STG Torque % FLT | 250 |
| POT Torque % | 260 |
| FL Efficiency (%) IE2 | 0.774 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 3 Phase 1HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 80 From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 1 HP (0.75 kW).
The rated speed of this motor is 2880 RPM.
It supports foot mounting (B3).
The voltage requirement is 415 V with a tolerance of ±10%.
The frequency specification is 50 Hz ±5%.
The ambient temperature range is up to 50 ºC.
The motor has a protection type of IP44/IP55.
The shaft diameter is 19 mm.
The power factor is 0.7.
The class of insulation is F.
The rated torque is 0.25 Kgm.
The motor comes with a warranty period of 2 years.
