Recom IP67 1 Output LED Driver, 2V dc to 35V dc, 12.25W, 350mA PWM Constant Current
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Solder |
| Maximum Output Power | 12.25W |
| Input Voltage | 36, 4.5V dc |
| Output Voltage | 2, 35V dc |
| Power Dissipation | 800mW |
| Standards/Approvals | UL, RoHS, EN |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-3222 Brand: [Recom](https://in.rsdelivers.com/brands/recom)Manufacturers Part No.: RCD-24-0.35/W/X3 |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Driver Current | 350mA |
| LED Voltage | 36, 4.5V |
Key Features
- Operates with input voltage range of 4.5V dc to 36V dc, supporting wide application versatility.
- Features IP67 rating, making it dust-tight and water resistant for outdoor or harsh industrial environments.
- Provides a maximum output power of 12.25 watts with ±3% output current accuracy for reliable performance.
- Supports constant current operation mode with 350mA driver current for consistent LED illumination.
- Equipped with short-circuit protection to safeguard the device and connected LEDs.
- Compact enclosed configuration with solder-type terminals for secure electrical connections.
- Designed with high efficiency up to 96% to minimize power loss and heat dissipation.
- Operates reliably between -40°C and +85°C ambient temperatures suitable for demanding industrial settings.
Product Description

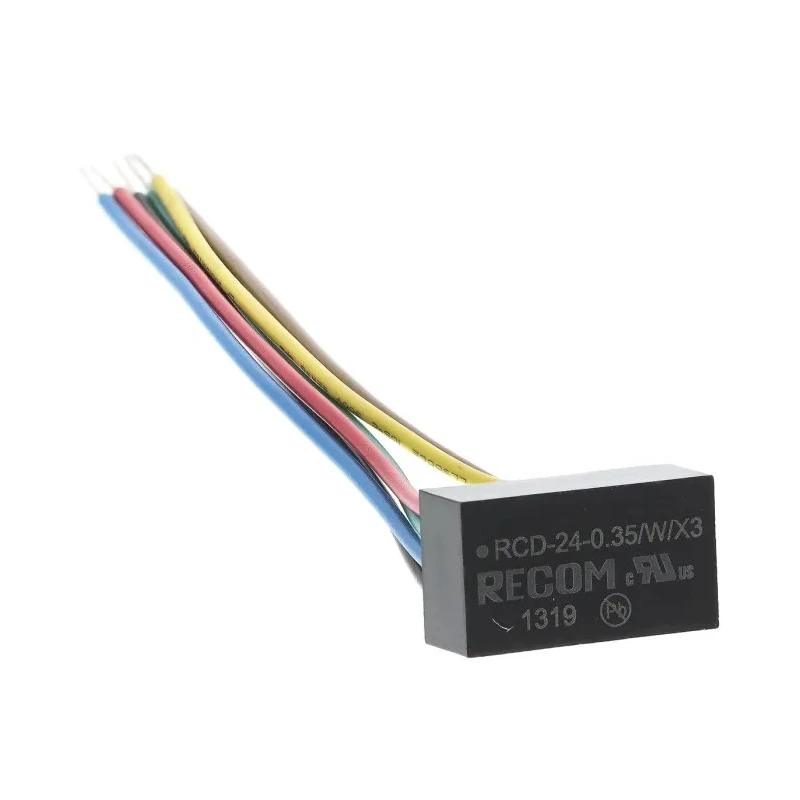

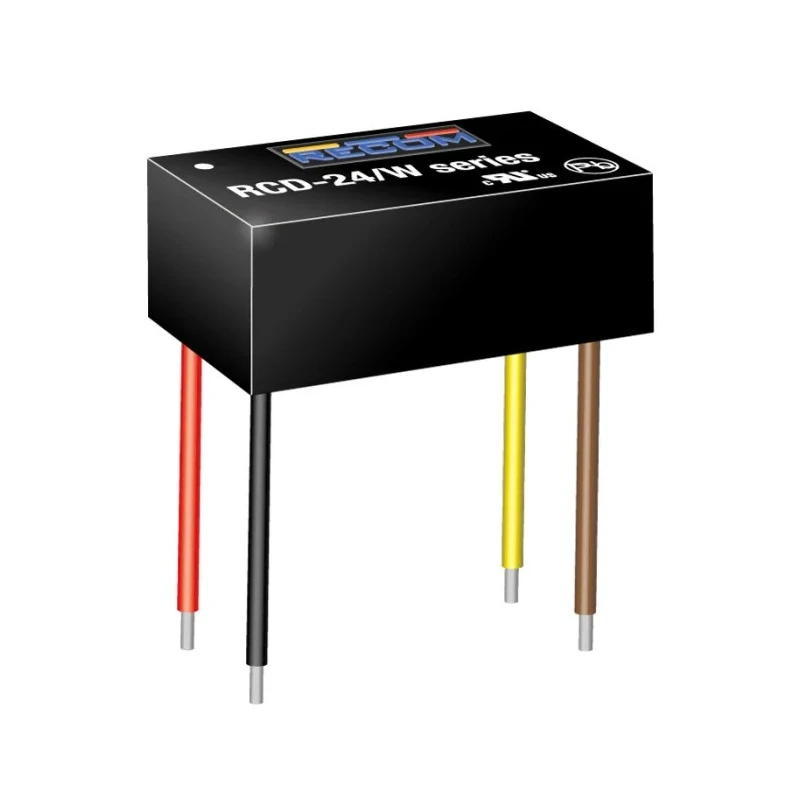

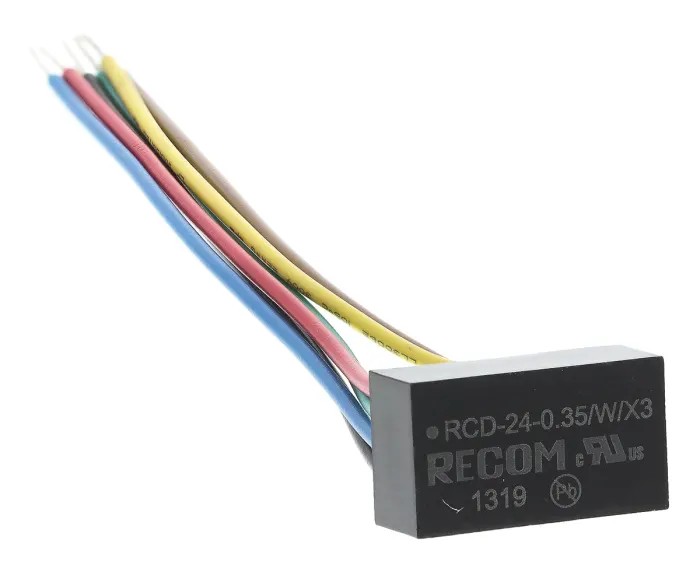

Recom RCD-24-0.35/W/X3 LED Driver is a high-performance constant current driver designed to power high-power white LEDs. This model features a single output channel capable of delivering 350mA current with an output voltage range from 2V to 35V dc. The driver supports pulse-width modulation (PWM) dimming and analogue voltage dimming which can be independently combined to offer flexible brightness controls.
Featuring a rugged IP67 enclosure, the device is dust-tight and protected against water ingress, making it suitable for both indoor and outdoor industrial installations. Its compact size of approximately 22.1mm length, 12.6mm width, and 8.5mm height allows easy integration even in space-constrained systems.
The LED driver operates efficiently with up to 96% energy conversion, keeping power dissipation low at 800mW. It delivers a maximum output power of 12.25W with a current accuracy of ±3%, ensuring precise control essential for sensitive LED lighting arrays. Built-in short-circuit protection prevents damage from electrical faults.
Constructed for reliability, the unit withstands operating temperatures ranging from -40°C to +85°C, addressing harsh environmental conditions encountered in retail, hospitality, and railway lighting settings. The solder-type terminal connections and colour-coded wiring simplify installation and maintenance.
Certified to meet UL, RoHS, and EN standards, this driver ensures safety and compliance with applicable regulations in electronic lighting components. The model is manufactured in Taiwan, Province of China.
Operates from 4.5V dc to 36V dc input voltage range. Single output channel delivering 350mA constant current. Compatible with PWM and analogue dimming controls. IP67 rated enclosure for high ingress protection. Maximum output power of 12.25 watts.
Built-in short circuit protection for safety. High efficiency of 96% minimizes wasted energy. Wide ambient operating temperature range from -40°C to 85°C. Compact dimensions of 22.1 x 12.6 x 8.5 mm for flexible mounting.
Compliant with UL, RoHS, and EN safety and environmental standards.
This LED driver from Recom is well-suited for industrial, commercial, and railway LED lighting applications where flicker-free, precise power delivery is required. It supports advanced dimming techniques and reliable operation under adverse conditions. To explore more LED drivers and components, browse the Recom brand and related categories at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5V dc to 36V dc.
It provides a maximum output power of 12.25 watts.
The dimensions are approximately 22.1mm in length, 12.6mm in width, and 8.5mm in height.
It is equipped with built-in short-circuit protection to safeguard the device and connected LEDs.
This LED driver operates with high efficiency, reaching up to 96%.
It operates reliably between -40°C and +85°C, suitable for demanding environments.
The model features an IP67 rating, making it dust-tight and water-resistant.
It supports PWM dimming and analogue voltage dimming, which can be combined for flexible brightness control.
It features solder-type terminals for secure electrical connections.
The driver is certified to meet UL, RoHS, and EN standards.
It is well-suited for industrial, commercial, and railway LED lighting applications where precise power delivery is required.
