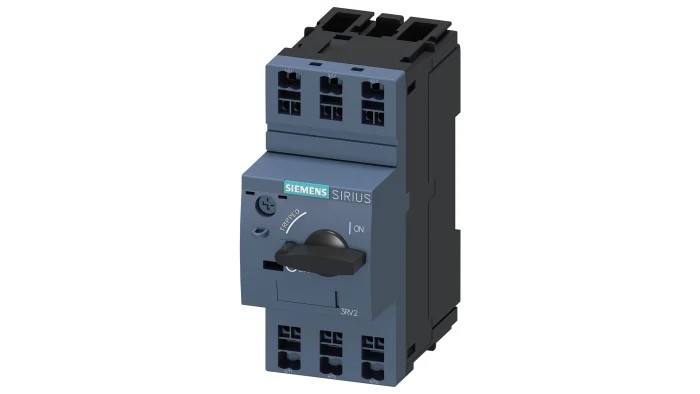

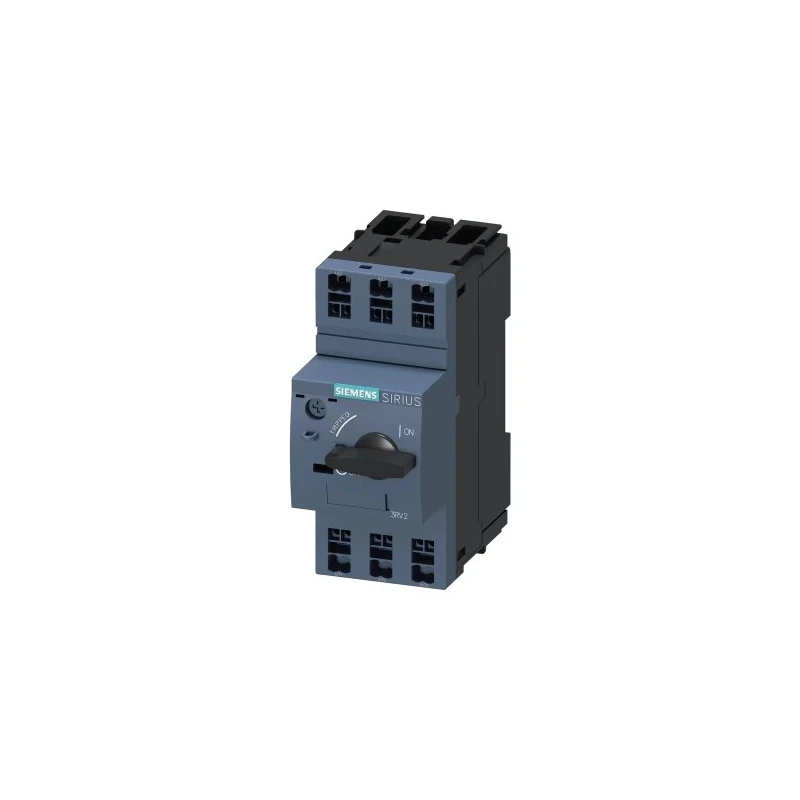

Siemens Motor Protection Circuit Breaker 550mA-800mA, 690V AC, Magnetic Sensing, 3RV2 Series 3-Pole 3RV2011-0HA20
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV2011-0HA20 |
| IP Rating | IP20 |
| Overall Length | 106mm |
| Current Rating | 550, 800mA |
| Series | 3RV2 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Magnetic |
| Supply Voltage | 690V ac |
| Number of Poles | 3 |
| Standards/Approvals | UL, UKCA, RoHS, LRS, EAC, CSA, CE, CCC, ATEX, ABS, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-1756Brand: SiemensManufacturers Part No.: 3RV2011-0HA20 |
| Overall Depth | 97mm |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- This circuit breaker supports a supply voltage of 690V AC for robust operation.
- Magnetic sensing type for precise motor protection against overcurrents.
- Features a slim profile measuring 106mm height, 45mm width, and 97mm depth to fit compact installations.
- Includes a front-mounted selector switch for easy resetting after tripping.
- Designed for three-pole operation suitable for three-phase motor protection.
- IP20 rated enclosure ensures basic protection against ingress and electric shock.
- Operates within a temperature range of -20°C to 60°C for versatile environmental use.
- Mechanical lifespan rated at 100,000 operations for long-lasting reliability.
Product Description
Siemens 3RV2011-0HA20 motor protection circuit breaker with a current rating of 550mA to 800mA is designed to protect electric motors from overload and short-circuit damage in industrial and commercial environments. Its supply voltage rating of 690V AC ensures compatibility with high-voltage motor systems. The magnetic sensing technique provides fast and accurate detection of electrical faults.
This motor protection circuit breaker features a compact 3-pole design in the reliable 3RV2 series and a slim profile measuring 106mm in height, 45mm in width, and 97mm in depth. It is IP20 rated for safety and includes spring-loaded terminals that ensure secure electrical connections and easy installation.
Operating temperatures from -20°C to 60°C make it suitable for varied environmental conditions including manufacturing plants and renewable energy installations. The device offers a mechanical lifespan of 100,000 switching operations and features a front-mounted selector switch for convenient resetting after tripping events.
Current rating: 550mA to 800mA for flexible motor protection. Magnetic sensing for precise fault detection. Compact 3-pole configuration suitable for three-phase motors. IP20 rating ensures protection against accidental contact and ingress.
Suitable for use in industrial automation, metalworking, and renewable energy applications. Meets numerous international standards including UL, UKCA, RoHS, and ATEX for safety compliance. Spring-loaded terminals and snap-on rail mounting for ease of installation and reliable connection.
Designed for extended product life with low carbon manufacturing process.
The Siemens 3RV2011-0HA20 is an essential component for safeguarding motorized equipment by rapidly interrupting power during hazardous overcurrent situations. Its high breaking capacity of 100kA and mechanical robustness make it a trusted choice for industrial use.
Explore more products in Motor Protection Circuit Breakers at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 3RV2011-0HA20 has a current rating range of 550mA to 800mA, allowing for flexible motor protection.
This circuit breaker supports a supply voltage of 690V AC, making it suitable for high-voltage motor systems.
It utilizes magnetic sensing technology for precise detection of electrical faults, providing fast and accurate motor protection.
The overall dimensions of the Siemens 3RV2011-0HA20 are 106mm in height, 45mm in width, and 97mm in depth.
This model is designed with a 3-pole configuration, making it suitable for three-phase motor protection.
It operates effectively within a temperature range of -20°C to 60°C, accommodating varied environmental conditions.
The Siemens 3RV2011-0HA20 has an IP20 rating, ensuring basic protection against ingress and accidental contact.
This circuit breaker is rated for a mechanical lifespan of 100,000 operations, indicating its longevity during use.
It complies with numerous international standards including UL, UKCA, RoHS, and ATEX, ensuring safety and reliability.
The unit includes spring-loaded terminals, which ensure secure electrical connections and facilitate easy installation.
Yes, it features a front-mounted selector switch for convenient resetting after tripping events.
It is suitable for use in industrial automation, metalworking, and renewable energy applications.
