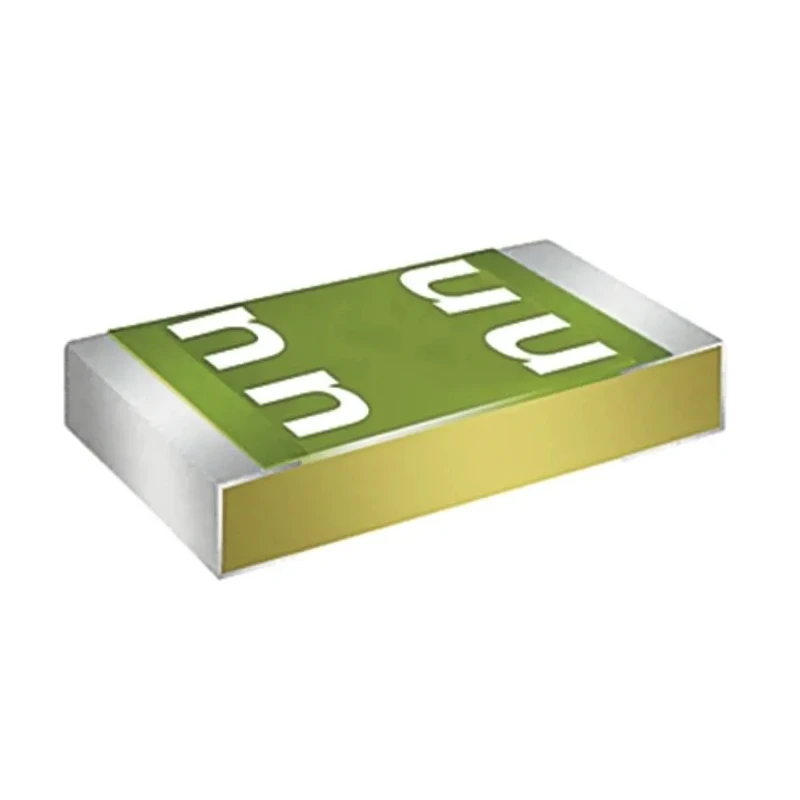

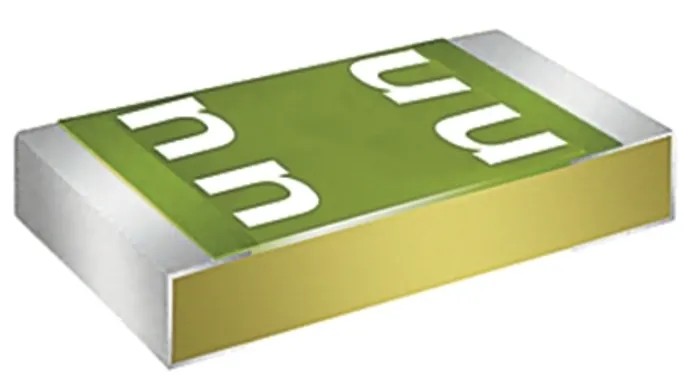

Schurter Non-Resettable Fuse 10A, 63V DC Epoxy Glass Body Time Delay UST 1206 3413.0328.22

Schurter 3413.0328.22 Non-Resettable Fuse is a high-quality time delay fuse designed for effective protection in DC and AC electronic circuits operating at 10A and 63V DC. It features a robust epoxy glass body that provides excellent thermal and mechanical stability, making it ideal for industrial, manufacturing, and electronic equipment applications.

This fuse utilizes surface mount technology with a compact UST 1206 package size that offers significant space-saving benefits on circuit boards while maintaining high performance. Its slow blow characteristic allows it to safely withstand circuit inrush currents without nuisance tripping.

The fuse withstands operating temperatures ranging from -55°C to 90°C, ensuring reliability under various environmental conditions. With a high breaking capacity of 600A and a resistance of 5.5 milliohms, it guarantees effective circuit interruption and minimal impact on the circuit's electrical parameters.

Terminals constructed from tin-plated copper optimize conductivity and reduce corrosion risks. Schurter’s fuse complies with stringent industrial standards including UL 248-14, REACH, CE, RoHS, and CSA, emphasizing the product’s quality and regulatory compliance.

Packaged on a reel, this fuse is suited for automated assembly processes, improving production efficiency. It is ideally suited for applications such as alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical devices where consistent and reliable circuit protection is critical.

Fuse features a time delay characteristic suitable for circuits with inrush currents. Designed with a compact UST 1206 surface mount package, saving space on circuit boards. Constructed with an epoxy glass body material ensuring durability and thermal resistance.

Rated for a maximum operating temperature of 90°C and minimum of -55°C. Has a high breaking capacity of 600A for effective circuit protection. Resistance is low at 5.5mΩ, minimizing impact on circuit performance. Terminals are made from tin-plated copper, providing good conductivity and corrosion resistance.

Complies with standards UL 248-14, REACH, CE, RoHS, and CSA for quality and safety. Reel packaging facilitates efficient manufacturing integration and handling. Explore Schurter fuses and other circuit protection devices in the Electronics & Electricals category at EnvMart to ensure optimal safety and performance for your projects.
