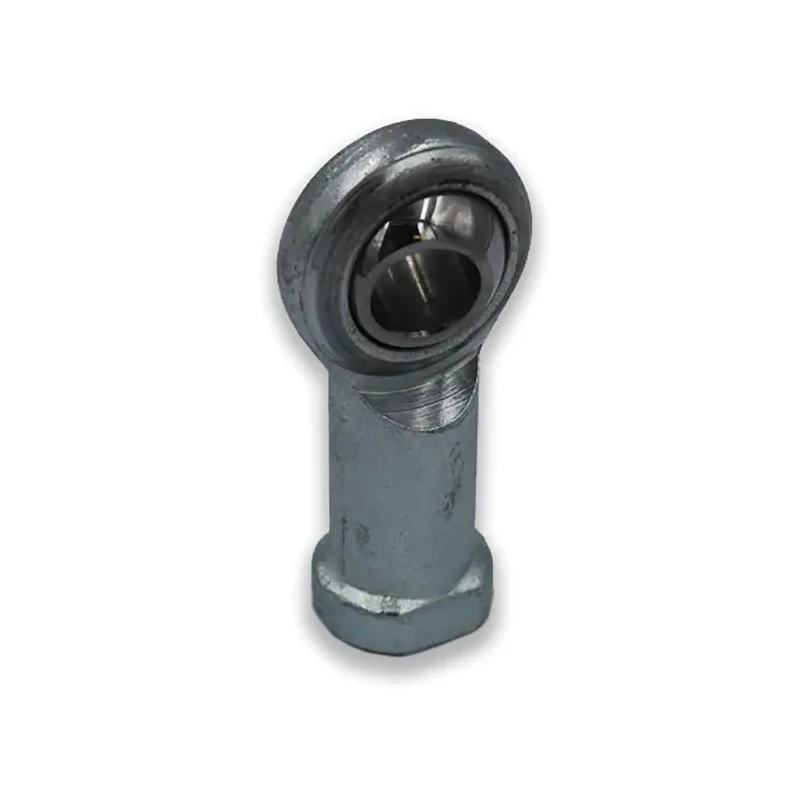

LDK M16 Female Carbon Steel Rod End 16mm Bore Dynamic Load 21kN Static Load 35.1kN PHS 16EC

LDK PHS 16EC is a high-quality carbon steel rod end designed for demanding industrial and mechanical use. Equipped with an M16 female connection size and a 16mm bore diameter, this rod end is engineered to withstand significant mechanical loads, providing reliable rotary bearing support in various applications.

The ball components are crafted from AISI 52100 bearing steel, heat treated to a hardness rating of HRC58-64, precision ground, and polished to ensure optimal performance and durability. The rod end body is manufactured from carbon steel with a clear zinc plating finish that enhances corrosion resistance.

The race is made from PTFE composite, with sliding contact surfaces composed of a steel/PTFE composite combination, which reduces wear and friction in operation, ensuring long service life and smooth movement.

With a dynamic load rating of 21 kN and a static load rating of 35.1 kN, this rod end is suited for applications involving heavy-duty mechanical loads, commonly found in industrial machinery, construction equipment, and fluid power systems.

Key dimensions include an outside diameter of 36mm and an overall width of 83mm, meeting metric thread standards for global compatibility. Manufactured in China, the LDK PHS 16EC rod end is a trusted product for engineering, industrial maintenance, and manufacturing requiring robust mechanical components.

Constructed from durable carbon steel with clear zinc plating for corrosion resistance. Features a female M16 connection size for secure attachment. 16mm bore diameter suitable for a variety of mechanical applications. Dynamic load rating of 21 kN ensures reliable performance under stress.

Static load rating of 35.1 kN for heavy-duty use. Ball made of AISI 52100 bearing steel, heat treated and precision ground for enhanced durability. Race composed of PTFE composite material to reduce friction and wear. Sliding contact surfaces combine steel and PTFE composite for smooth operation.

Overall width measures 83mm with an outside diameter of 36mm. Manufactured in China adhering to metric thread standards. Explore EnvMart’s extensive range of rotary bearings and mechanical components for industrial and fluid power applications.
