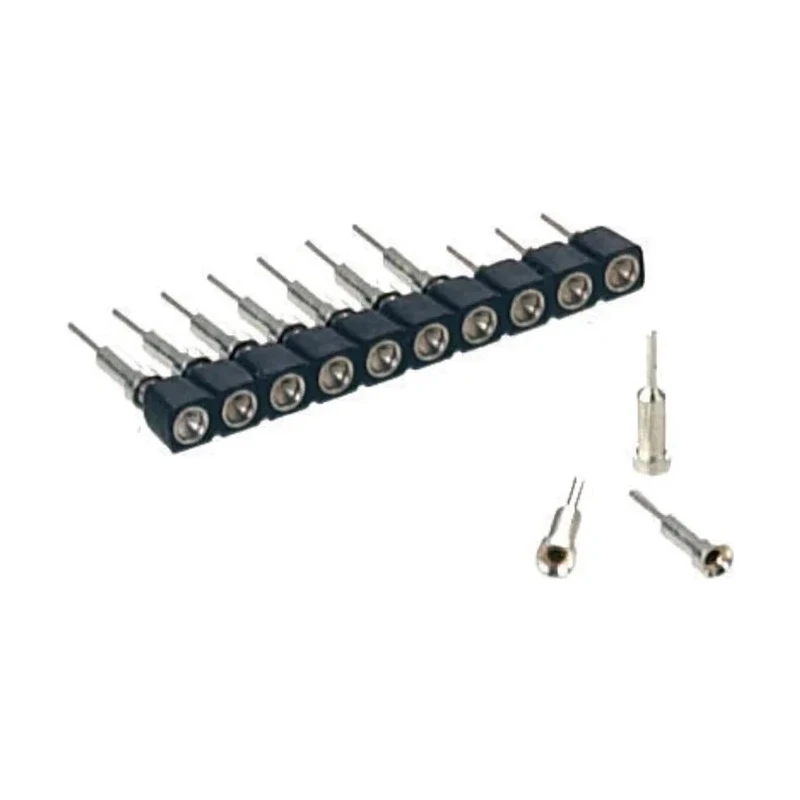

Preci-Dip 9 Way Straight Through Hole Socket Contact Carrier 2.54 mm Pitch 100 V AC, 150 V DC, 3A 712-87-109-41-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 100, 150V ac |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Length | 22.86mm |
| Depth | 4.26mm |
| Width | 1.83mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Beryllium Copper Alloy, Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin, Gold |
| Number of Contacts | 9 |
Key Features
- Constructed with beryllium copper alloy and brass for excellent conductivity.
- Designed for a current rating of 3 amperes ensuring stable power handling.
- Features tin and gold plating for superior corrosion resistance.
- Standard 2.54 mm pitch suitable for zero profile IC socket connectors.
- Through-hole mount type for secure PCB installation.
- Fibreglass reinforced housing provides durability and stability.
- Operates safely up to 100 V AC and 150 V DC.
- Supports operating temperature range from -55°C up to 125°C.
Product Description
It features a 2.54 mm pitch, optimized for zero profile IC socket applications, allowing mating with 0.47 mm diameter pins.
The contact carrier is constructed from beryllium copper alloy and brass, combined with tin and gold plating to enhance electrical performance and corrosion resistance. The housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, ensuring mechanical strength and reliability.
Designed for a 3 ampere current rating, it supports voltages of 100 V AC and 150 V DC, suitable for varied electronic component connections. The termination type is solder, with a 3.11 mm tail length for secure PCB mounting through a through-hole design.
Operating temperature ranges from -55°C to 125°C, making it suitable for demanding industrial and electronic applications requiring durable and stable connectors. The compact form factor with length 22.86 mm, width 1.83 mm, and depth 4.26 mm allows integration into tightly spaced assemblies.
Applications include industrial electronics, laboratory equipment, manufacturing devices, and other commercial electronic assemblies that require reliable connector solutions. Constructed with beryllium copper alloy and brass for excellent conductivity.
Designed for a current rating of 3 amperes ensuring stable power handling. Features tin and gold plating for superior corrosion resistance. Standard 2.54 mm pitch suitable for zero profile IC socket connectors. Through-hole mount type for secure PCB installation.
Fibreglass reinforced housing provides durability and stability. Operates safely up to 100 V AC and 150 V DC. Supports operating temperature range from -55°C up to 125°C. Termination through soldering ensures reliable electrical and mechanical connection.
Compact dimensions with length 22.86 mm, width 1.83 mm, and depth 4.26 mm. Explore more Preci-Dip SIL Sockets and related electronic connectors at EnvMart for professional industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3 amperes, ensuring stable power handling for various applications.
It operates safely up to 100 V AC and 150 V DC, making it suitable for a range of electronic connections.
The pitch size of the contacts is 2.54 mm, which is standard for zero profile IC socket connectors.
The contact carrier is constructed from beryllium copper alloy and brass, with tin and gold plating to enhance conductivity and corrosion resistance.
The dimensions of this model are 22.86 mm in length, 1.83 mm in width, and 4.26 mm in depth.
It uses a through-hole mount type for secure installation on printed circuit boards (PCBs).
The operating temperature range for this model is from -55°C to 125°C, suitable for demanding industrial applications.
The termination type is solder, ensuring a reliable electrical and mechanical connection.
The housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, providing mechanical strength and stability.
This model features 9 contacts, allowing for multiple connections in electronic applications.
It is suitable for industrial electronics, laboratory equipment, manufacturing devices, and other commercial electronic assemblies.
This model is manufactured in Switzerland, ensuring adherence to high standards of quality.
