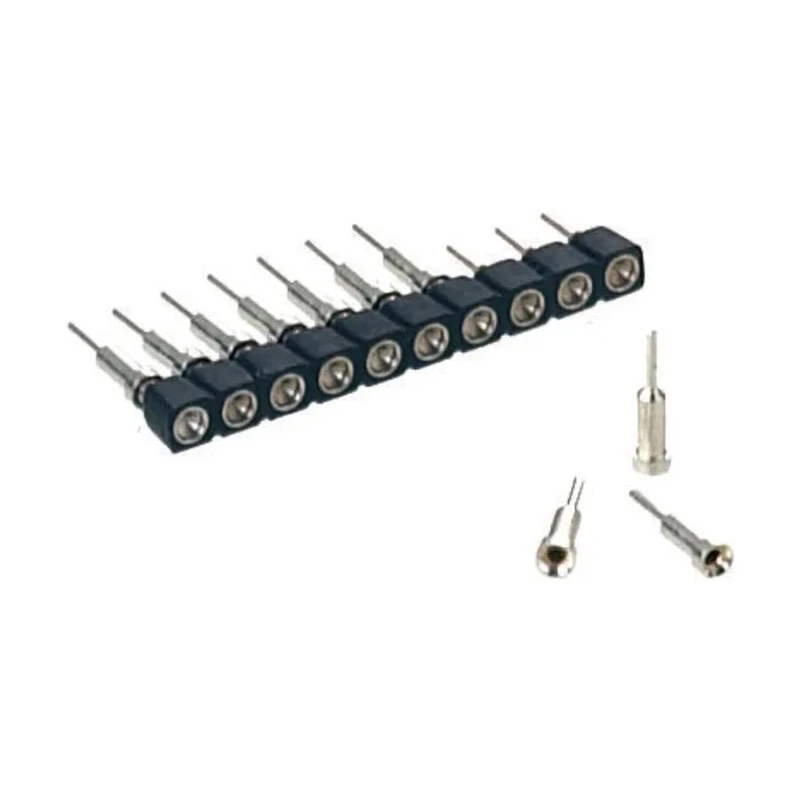

Preci-Dip 9 Way Straight Through Hole Socket Contact Carrier 2.54 mm Pitch 100 V AC 150 V DC 3A 712-87-109-41-001101

Preci-Dip 712-87-109-41-001101 9 Way Straight Through Hole Socket Contact Carrier is a high-quality electronic component designed for reliable interconnection in industrial and electronic equipment. It operates with an electrical rating of 100 V AC and 150 V DC at a current capacity of 3A. This socket carrier is intended for solder termination in printed circuit boards, featuring a 2.54 mm pitch.

The contact material is a beryllium copper alloy combined with brass, ensuring excellent electrical conductivity and mechanical strength. Contacts are plated with tin and gold, which protect against corrosion and ensure long-lasting reliability. The housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, providing robust mechanical stability and flame resistance compliant with UL 94V-0 standards.

Designed with a straight orientation for through-hole mounting, this carrier provides ease of installation and secure connectivity. It operates reliably across a temperature range from -55°C to 125°C, making it suitable for demanding industrial, electronic, and manufacturing environments. The socket contacts are supplied on disposable carriers to streamline assembly processes.

Its compact dimensions of 22.86 mm length, 4.26 mm depth, and 1.83 mm width enable integration into tight spaces, meeting modern design requirements. This product is manufactured in Switzerland, maintaining stringent quality standards.

Use cases include industrial automation, laboratory equipment, telecommunications, automotive electronics, and PCB manufacturing where dependable electrical connections at moderate voltages and currents are critical.

The Socket contact carrier is ideal for industrial and manufacturing assembly applications. Its construction materials meet durability and performance needs in aerospace and automotive electronics. Solder termination type ensures a strong and lasting connection on PCB assemblies.

Compact size and pitch support high-density electronic component layouts. Temperature tolerance enables operation in harsh environments including outdoor and embedded systems. Explore a wide range of electronic components at EnvMart for your industrial, laboratory, and manufacturing needs.
