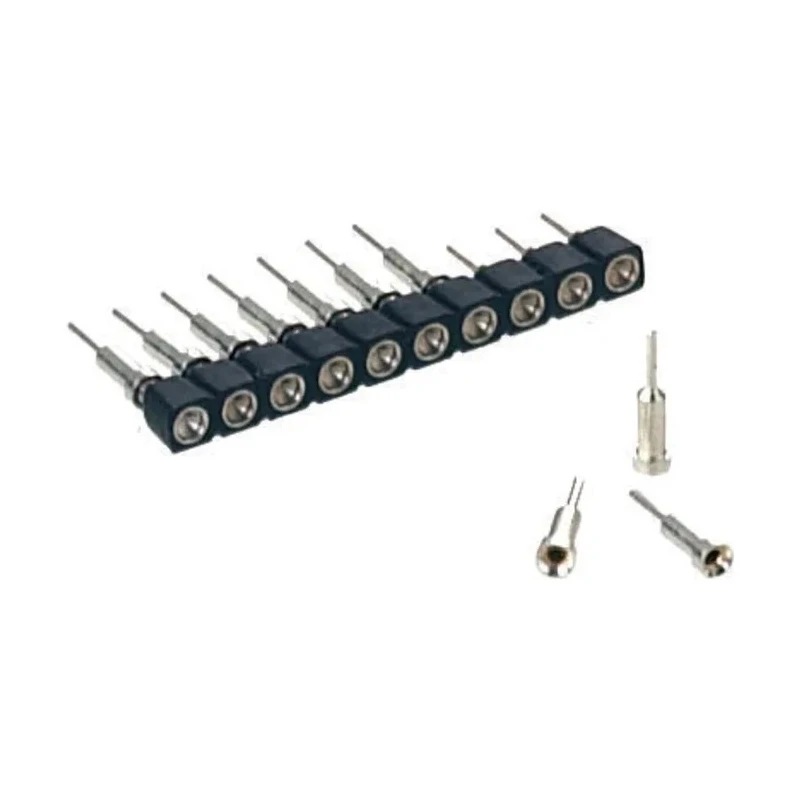

Preci-Dip 7 Way Straight Through Hole Socket Contact Carrier 2.54 mm Pitch 150V dc, 3A 712-87-107-41-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V dc |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Length | 17.78mm |
| Depth | 4.26mm |
| Width | 1.83mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Brass, Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold, Tin |
| Number of Contacts | 7 |
Key Features
- Constructed with brass and beryllium copper alloy contact material for durability.
- Gold and tin plating ensures excellent conductivity and corrosion resistance.
- Designed with fibreglass reinforced polycyclohexylenedimethylene terephthalate housing material for stability.
- Operates safely up to 150V dc with solder termination type for secure connections.
- Wide operating temperature range from -55°C to 125°C for versatile application.
- Compact dimensions with length 17.78mm, width 1.83mm, and depth 4.26mm.
- Mount type is through hole suitable for printed circuit boards.
Product Description
Preci-Dip 712-87-107-41-001101 7 Way Socket Contact Carrier is a precision-engineered electronic component designed to provide reliable electrical connections on printed circuit boards (PCBs). Featuring a 2.54 mm pitch in a straight through hole configuration, this socket carrier enables stable and consistent contact for mating pin diameters of 0.47 mm. Its construction includes brass sleeves plated with gold and tin for enhanced conductivity and corrosion resistance, alongside beryllium copper alloy contact clips that provide robust spring action.
The housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, ensuring mechanical strength and temperature resistance. It supports a maximum current of 3A and voltage rating of 150V dc, making it suitable for mid-range power applications in electronic assemblies.
Operating temperature ranges from -55°C to 125°C, allowing functionality in extreme environments typically encountered in industrial and laboratory electronics. The solder termination method facilitates easy and secure mounting to PCB boards, maintaining electrical integrity over time.
The compact form factor with a length of 17.78mm, width of 1.83mm, and depth of 4.26mm allows high density packaging for advanced circuitry. The product meets UL 94V-0 safety standards, assuring users of its flame retardant characteristics.
Constructed with brass and beryllium copper alloy contact material for durability. Gold and tin plating ensures excellent conductivity and corrosion resistance. Fibreglass reinforced housing supports high temperature tolerance.
Designed for through hole mounting on PCBs with solder termination. Operates within -55°C to 125°C temperature range for versatile applications. Rated for 150V dc voltage and 3A current capacity. Compact size suitable for dense PCB designs.
Ideal for industrial electronics, manufacturing, and testing equipment, this Preci-Dip connector component offers reliable performance for demanding electronic assembly processes. Explore more in our Electronics Components SIL Socket section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 150V dc, making it suitable for mid-range power applications in electronic assemblies.
The maximum current capacity is 3A, which allows it to handle typical power requirements in various electronic applications.
It is constructed with brass and beryllium copper alloy for the contacts, while the housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate.
The pitch size of the contacts is 2.54 mm, which is standard for many electronic applications.
The dimensions are 17.78 mm in length, 1.83 mm in width, and 4.26 mm in depth, allowing for high-density PCB designs.
It operates within a temperature range of -55°C to 125°C, suitable for various industrial and laboratory environments.
It is designed for through hole mounting on printed circuit boards (PCBs) with a solder termination type for secure connections.
The contacts are plated with gold and tin, which enhances conductivity and provides corrosion resistance.
This model features 7 contacts, allowing for multiple connections in electronic circuits.
It meets UL 94V-0 safety standards, indicating its flame retardant characteristics.
It is ideal for industrial electronics, manufacturing, and testing equipment, providing reliable performance in demanding electronic assembly processes.
The orientation is straight, designed for easy integration into electronic assemblies.
