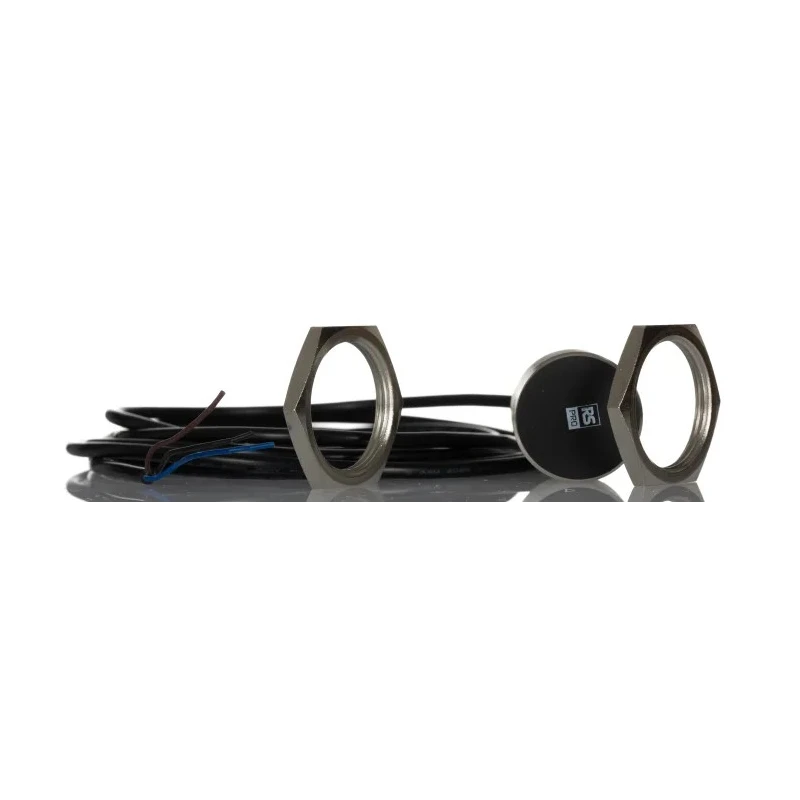

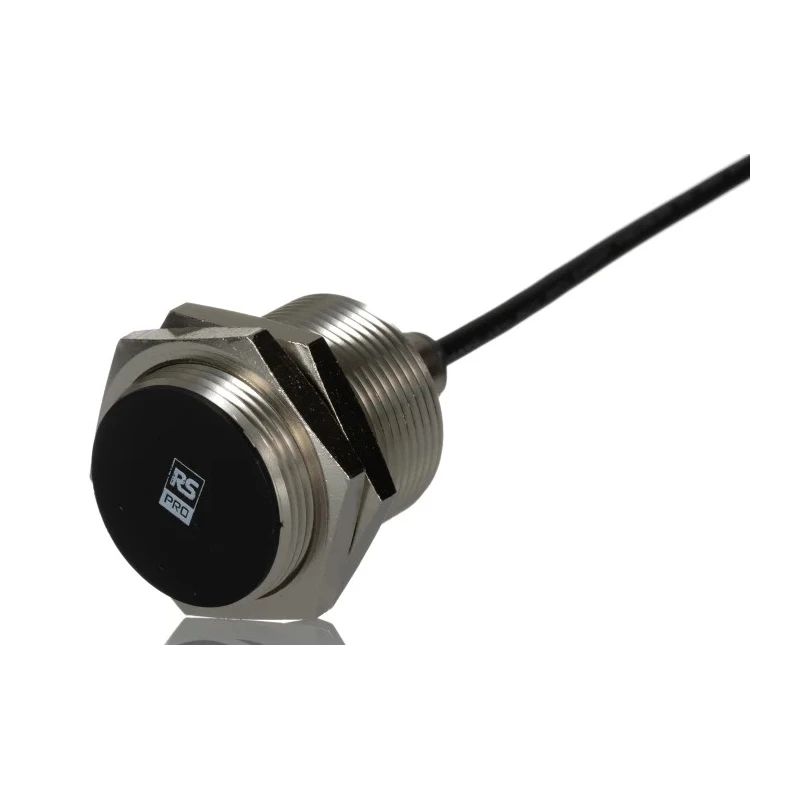

RS PRO Threaded Barrel Inductive Proximity Sensor M30 x 1.5 NPN 30V DC 10 mm Detection Range 200mA 500Hz 701-8219
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | RS PRO |
| Length | 51mm |
| Model | 701-8219 |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Nickel Plated Brass |
| Output type | NPN |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | UL, RoHS Compliant, EN 60947-5-2, cULus Listed |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 701-8219Brand: RS PRODistrelec Article No.: 30425694 |
| Maximum Supply Voltage | 30V dc |
| Maximum Detection | 10mm |
Key Features
- Compact M30 x 1.5 threaded barrel design enables flush mounting in tight spaces.
- Detects metallic objects up to 10 mm with high accuracy.
- NPN output type with switching current up to 200mA for versatile load compatibility.
- Operates reliably within temperature range of -25°C to 75°C and voltage up to 30 V DC.
- IP67 rated housing provides dust and water resistance for harsh environments.
- Nickel plated brass body ensures durability and corrosion resistance.
- Maximum switching frequency of 500Hz supports rapid automated process control.

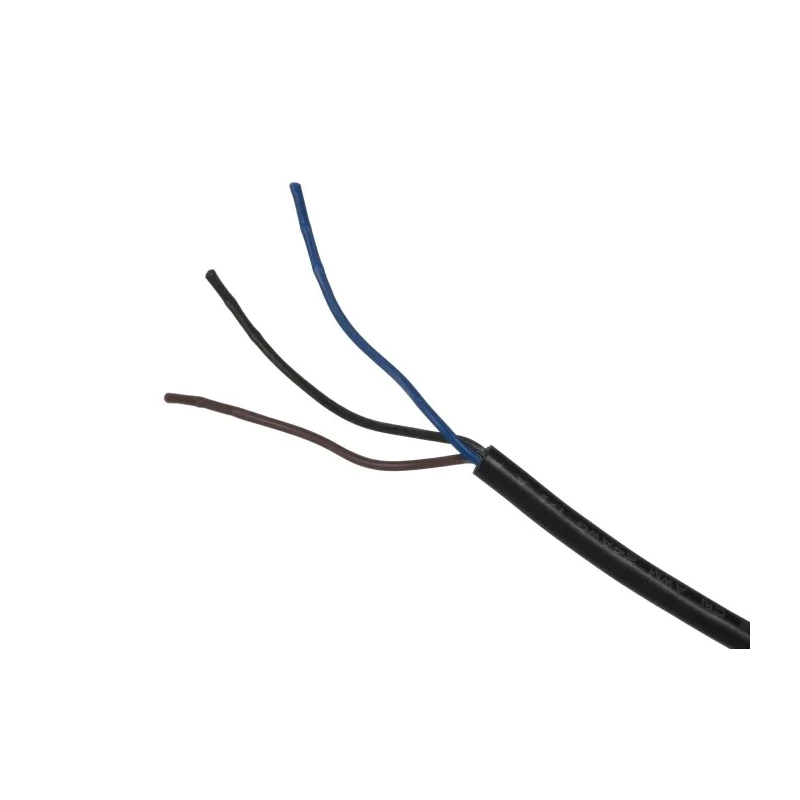

- Cable terminated for easy installation with shielded connection.
Product Description
RS PRO 701-8219 Threaded Barrel Inductive Proximity Sensor is engineered for industrial and automation environments requiring precise and reliable metallic object detection. Featuring an M30 x 1.5 threaded barrel and a sturdy nickel plated brass housing, this sensor offers both durability and effective flush mounting capability.
With a maximum detection distance of 10 mm, the sensor reliably responds within a maximum switching frequency of 500Hz, enabling fast detection cycles essential in manufacturing, packaging, robotics, and conveyor system applications. Its NPN output supports switching currents up to 200mA while operating at supply voltages up to 30 V DC.
The sensor is IP67 rated, ensuring protection against dust ingress and water immersion, suitable for demanding industrial settings exposed to contaminants. Its operating temperature range of -25°C to +75°C allows stable functionality under varying temperature conditions.
Safety features include reverse polarity protection and short circuit protection, vital for secure integration into automation control systems. The cable connection type facilitates straightforward installation and reliable electrical contact.
Compliance with UL, cULus, EN 60947-5-2, and RoHS standards certifies the sensor meets strict safety and environmental criteria. Compact M30 x 1.5 threaded barrel form factor. Durable nickel plated brass housing. Detection range up to 10 mm for metallic targets.
NPN output type with 200mA switching current. High switching frequency of 500Hz for rapid detection. IP67 protection against dust and water ingress. Operating temperature from -25°C to 75°C. Flush mount installation capability.
Certified to UL, cULus, EN 60947-5-2 standards. Manufactured in Hungary, ensuring quality control.
This inductive proximity sensor is ideal for use in industrial automation, manufacturing machinery, packaging lines, conveyor systems, and robotic assembly processes requiring consistent object detection under harsh environmental conditions.
Explore more RS PRO sensors and automation equipment on EnvMart for comprehensive industrial solutions.
Explore more products in our Inductive Proximity Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 10 mm for metallic objects.
It operates reliably within a temperature range of -25°C to +75°C.
This sensor features an NPN output type.
The maximum switching frequency is 500Hz, allowing for rapid detection cycles.
The housing is made of nickel plated brass, providing durability and corrosion resistance.
It has an IP67 rating, ensuring protection against dust and water ingress.
The maximum supply voltage is 30V DC.
This unit supports a switching current of up to 200mA.
It features a flush mount design, suitable for tight spaces.
The sensor has a length of 51 mm and a width of 30 mm.
It is compliant with UL, RoHS, and EN 60947-5-2 standards.
This sensor uses a cable terminal type for easy installation.
