APEM Illuminated Piezo Switch Momentary SPST IP68 19 mm Cutout 200mA 24V AC/DC

Free Delivery in India | Lowest Global Shipping Charges

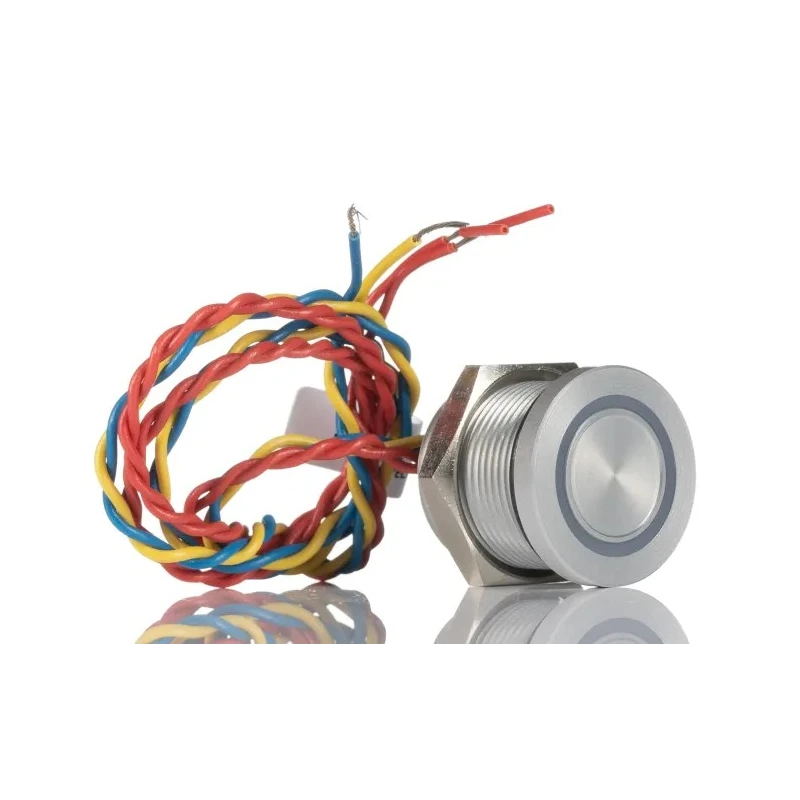

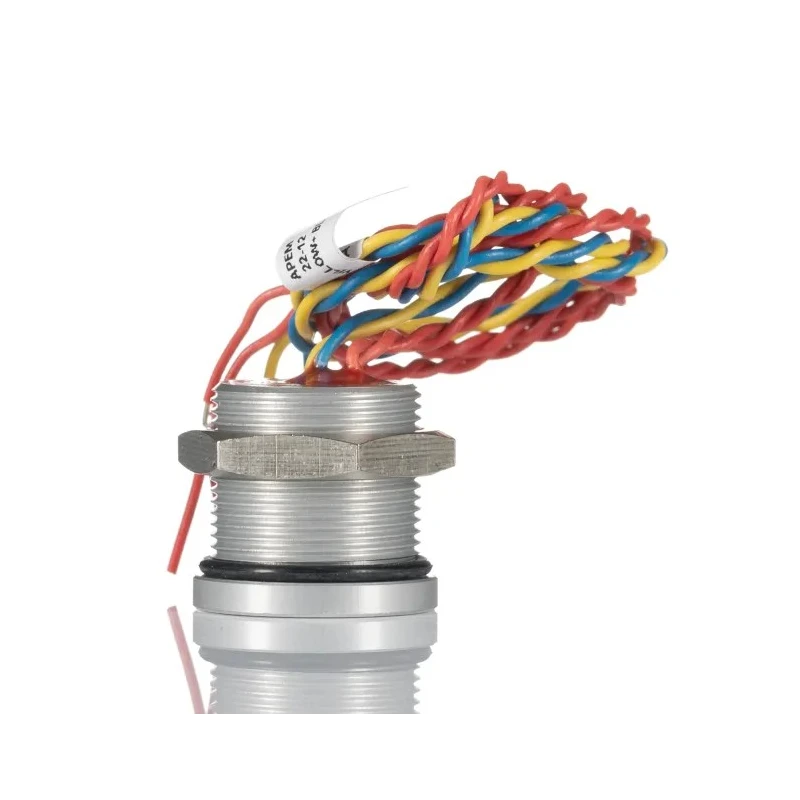

APEM Illuminated Piezo Switch Momentary SPST IP68 19 mm Cutout 200mA 24V AC/DC

Name: APEM Illuminated Piezo Switch Momentary SPST IP68 19 mm Cutout 200mA 24V AC/DC
Brand: APEM
SKU: 351415
Price: 5719.59 INR
Availability: InStock



Category Piezo Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	IP68
IP Rating	IP68
Series	PBA
Maximum Operating Temperature	75°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Panel Cutout Size	19 mm
Terminal type	Flying Lead
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	691-9581Brand: APEMManufacturers Part No.: PBAR9AF0000A0S
LED Colour	Red
Switch Operation	Momentary
Contact DC Voltage	24V dc
Switch Contact Current	200mA
Contact AC Voltage	24V ac
Sealed to IP68	APEM Piezo switches are sealed to IP68 standards, ensuring protection against dust and water immersion. This makes them highly resistant to environmental factors, making them suitable for use in demanding applications

Key Features

Sealed to IP68 for dust and water immersion protection.
Features a red LED illumination for clear indication.
Momentary switch operation with single pole single throw contact configuration.
Supports up to 200mA switch contact current at 24V AC/DC.
Equipped with flying lead terminals for easy wiring.
Operates reliably between -40°C to 75°C temperature range.
Constructed with a one-piece metal surface for easy cleaning and hygienic use.
Offers a very long mechanical life with solid-state output rated for 50 million cycles.

Product Description

APEM PBAR9AF0000A0S Illuminated Piezo Switch Momentary SPST with IP68 rating and a 19 mm panel cutout is designed for demanding industrial and commercial applications requiring high reliability and resistance to harsh environments. This switch features a sealed one-piece metal surface that prevents ingress of dust, liquids, and contaminants, ensuring easy cleaning and maintenance.

It operates momentarily with a single pole single throw (SPST) contact configuration, illuminated by a red LED indicator for visual status feedback. The flying lead terminals facilitate straightforward connections in various electrical control panels.

Designed to operate efficiently under temperatures ranging from -40°C to 75°C, it supports a switch contact current up to 200mA at 24 volts for both AC and DC applications. The solid-state output provides an exceptional mechanical life of 50 million cycles, suitable for extensive industrial usage.

Typical applications include the food processing industry, medical equipment, and mining operations where durability, hygiene, and reliable operation are critical. Sealed to IP68 for robust environmental protection. Red LED for illuminated status indication.

Momentary SPST switch operation. Flying lead terminals ensure ease of wiring. High durability with 50 million operation cycles. Wide operating temperature range (-40°C to 75°C). One-piece metal surface easy to clean and maintain.

Supports 200mA contact current at 24V AC/DC. Suitable for harsh industrial environments. This product is part of EnvMart's selection of premium industrial Piezo Switches, catering to sectors requiring robust and hygienic electrical components.
