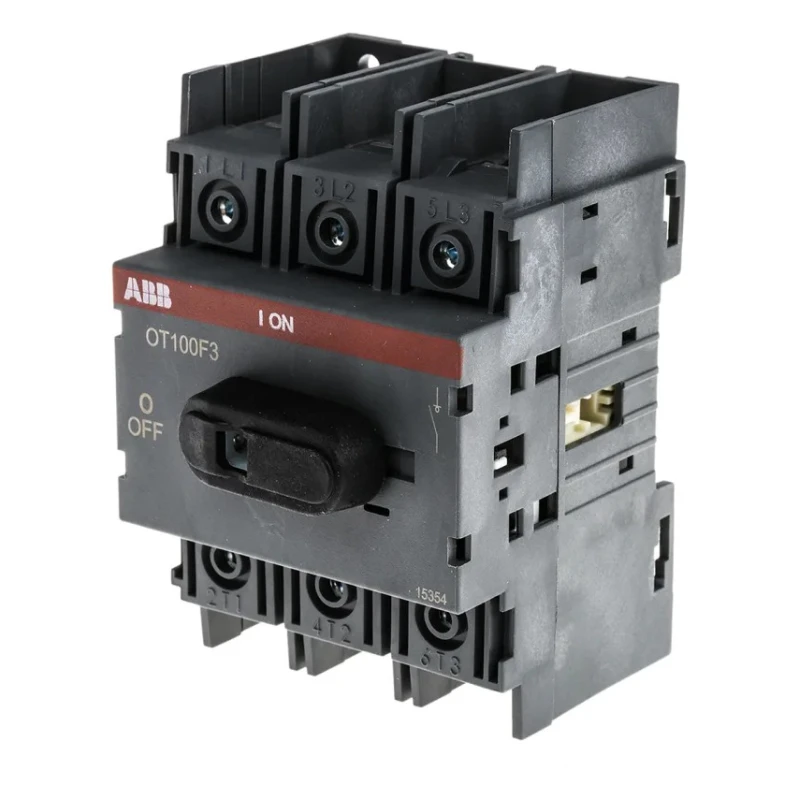

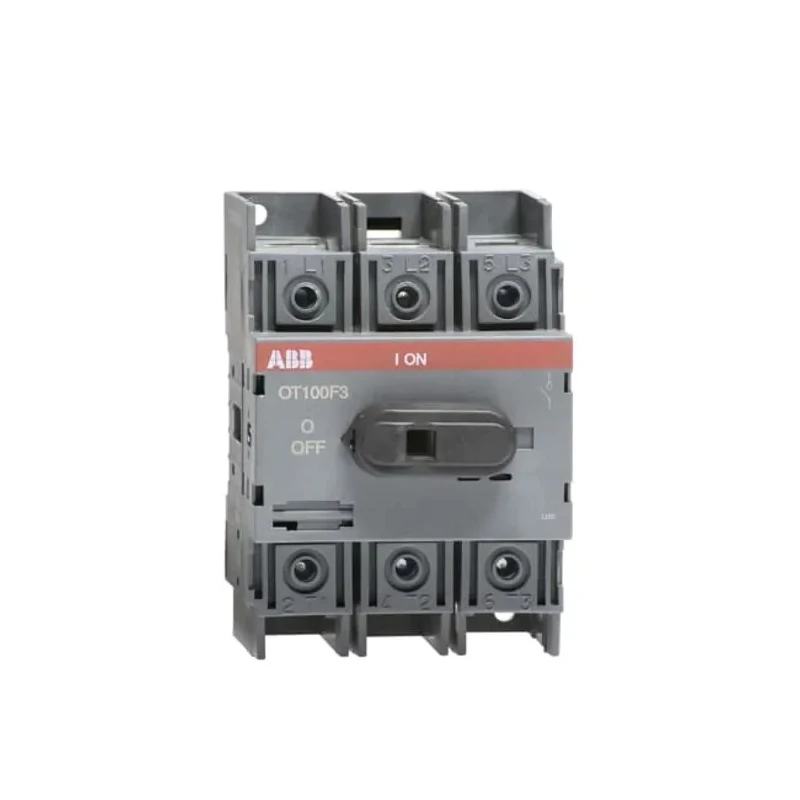

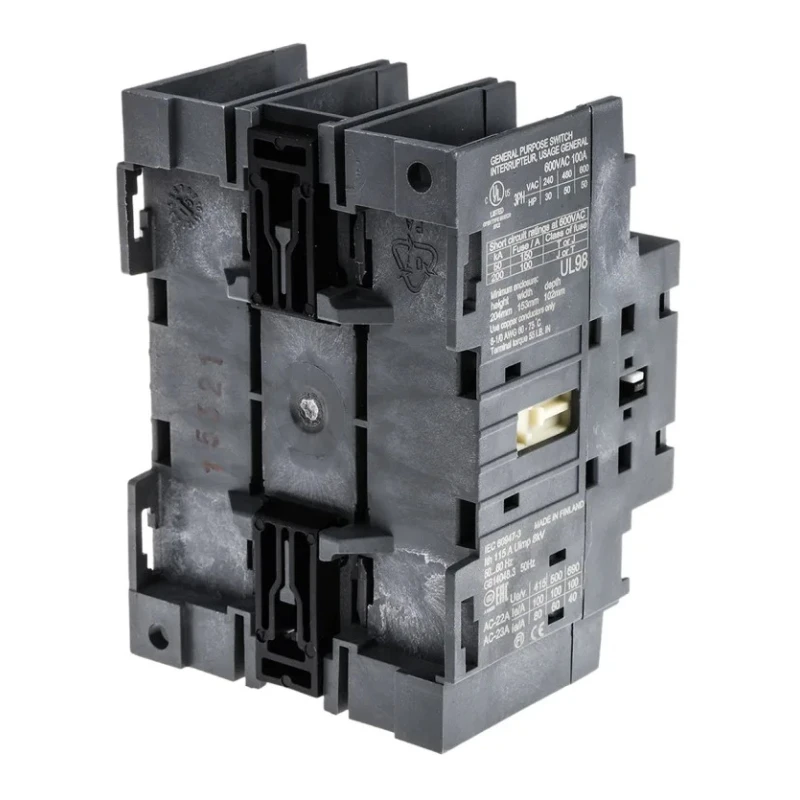

ABB 3-Pole DIN Rail Non-Fused Isolator Switch IP20, 100A, 560kW OT100F3 1SCA105004R1001

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole DIN Rail Non-Fused Isolator Switch IP20, 100A, 560kW OT100F3 1SCA105004R1001



Category Isolator Switch Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	100mm
Model	IP20
Depth	74mm
IP Rating	IP20
Width	70mm
Mount Type	DIN Rail
Series	OT
Minimum Operating Temperature	40°C
Switching Current	100A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Black
Number of Poles	3
Standards/Approvals	UL, IEC
Switching DC Voltage	1000V dc
Switching AC Voltage	600V ac
Switching Power	560kW
ABB 3-Pole DIN Rail Isolator Switch -, IP20, 80A, 560 kWBrand	ABB

Key Features

Designed for three-phase electrical systems with three poles for simultaneous circuit management.
DIN rail mounting allows fast and secure installation in control panels.
Black handle for easy identification and operation.
Compact dimensions of 100mm length, 70mm width, and 74mm depth ensure space efficiency.
Equipped with 2.5kA switch rating and rated for 750V AC voltage.
Switching capabilities include 600V AC and 1000V DC voltages.
Mechanical durability rated for 20,000 operating cycles for long service life.
IP20 rating provides touch protection and resistance to wires above 12mm diameter.

Product Description

ABB OT100F3 1SCA105004R1001 is a 3-pole non-fused isolator switch designed for DIN rail mounting, providing safe and efficient circuit disconnection in three-phase industrial electrical systems. Rated for 100A switching current and 560kW switching power, this isolator is engineered to handle demanding electrical loads.

Its IP20-rated enclosure ensures protection against touch and ingress of solid objects greater than 12mm, making it suitable for indoor industrial environments. The black handle enhances operational visibility, while screw terminal connections facilitate secure wiring and quick installation.

The switch is capable of switching up to 600V AC and 1000V DC, expanding its versatility in various electrical setups. Its mechanical durability of 20,000 cycles assures reliable long-term performance in factory automation, metalworking, and construction industries.

Compact in size with dimensions of 100mm length, 70mm width, and 74mm depth, this isolator switch optimizes panel space. It complies with UL and IEC standards and includes inbuilt 8kV impulse protection to guard connected equipment from voltage spikes.

Three poles for multi-circuit control in three-phase systems. DIN rail mounting for streamlined installation. High switch rating of 2.5kA and voltage ratings of up to 750V AC. Robust mechanical endurance ensures reliability.

IP20 rating for touch safety and wire protection. Switching current capacity of 100A for industrial power handling. Compact footprint reduces panel space requirements. Suitable for industrial, construction, and automated manufacturing use.

Manufactured in Finland ensuring high-quality standards.

This ABB Isolator Switch is recommended for professionals needing a durable, reliable, and easy-to-install solution for electrical circuit isolation. Browse the Electronics & Electricals category at EnvMart to find more high-quality industrial switches and components.
