ABB 3-Pole Fuse Switch Disconnector 690V ac 1.25 kA with Lug Terminal 1SCA105250R1001

Free Delivery in India | Lowest Global Shipping Charges

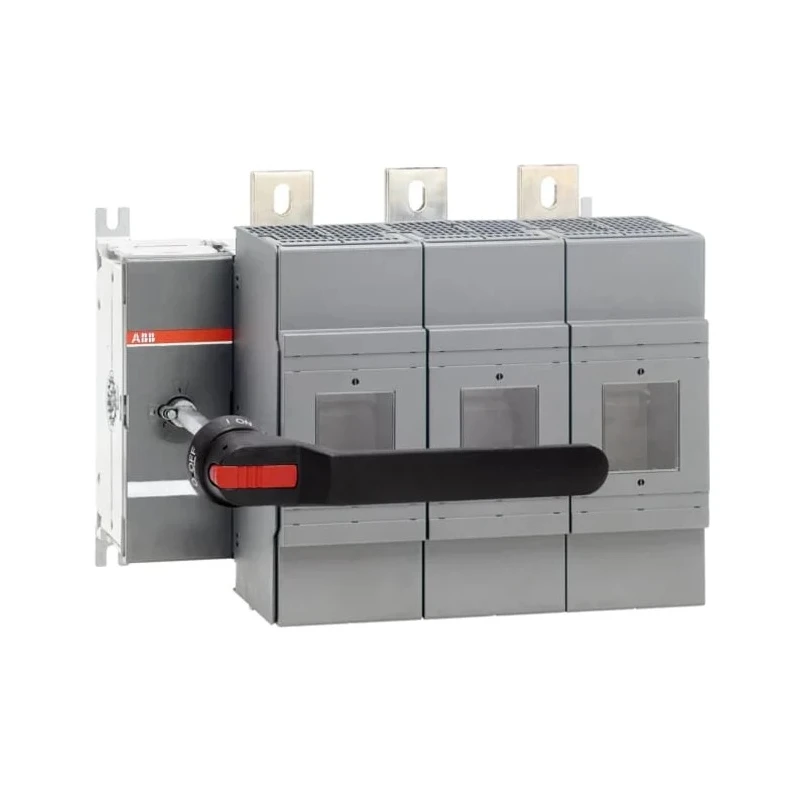

ABB 3-Pole Fuse Switch Disconnector 690V ac 1.25 kA with Lug Terminal 1SCA105250R1001



Category Fuse Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Model	1SCA105250R1001
Series	1SCA
Terminal type	Lug Terminal
Number of Poles	3
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	235-2199Brand: ABBManufacturers Part No.: 1SCA105250R1001
Switching Voltage	690V ac
Mechanical Fuse Size	D1
Fuse Current	1.25kA

Key Features

Operates in front operated mode using British Standard fuse system.
Base mounted fuse switch with lug type terminals and 50 mm width.
Equipped with pistol handle and shaft included for easy operation.
Switches operating mechanism type 03 located on the left side.
Line terminals positioned for Top In - Bottom Out and Bottom In - Top Out configurations.
Designed with mechanical fuse size D1 suitable for industrial applications.
Pollution degree rating 3 ensures reliable operation in harsh environments.
Compliant with RoHS standards and manufactured in Finland.

Product Description

ABB 1SCA105250R1001 Fuse Switch Disconnector is a 3-pole device designed for high reliability and safety in electrical installations, with a fuse current rating of 1.25 kA and switching voltage of 690V AC. It operates using the British Standard fuse system in a front operated mode, ideal for industrial and commercial electrical switchgear applications.

The switch is base mounted and includes lug type terminals with a width of 50 mm to ensure secure and stable electrical connections. It features a pistol handle and shaft, simplifying manual switching operations while providing ergonomic handling.

With a switches operating mechanism 03 located on the left side and line terminals arranged Top In - Bottom Out and Bottom In - Top Out, this disconnector supports versatile mounting and wiring configurations.

The mechanical fuse size D1 compatibility assures the integration of standard-size fuses for easy maintenance and replacement. Built to withstand pollution degree 3 environments, this product is suitable for industrial settings prone to dust and moisture.

RoHS compliant and manufactured in Finland, the ABB fuse switch disconnector meets rigorous environmental and safety standards, ensuring durable and responsible performance in electrical automation and control systems.

Front operated mode using British Standard fuse system. Base mounted fuse unit with 3 poles. Pistol handle and shaft included for safe operation. Lug type terminals with 50 mm width for connection stability. Switches operating mechanism type 03 (left side).

Line terminal configuration Top In - Bottom Out, Bottom In - Top Out. Mechanical fuse size D1 for standard fuse compatibility. Pollution degree 3 rating for harsh environment resilience. RoHS compliant for environmental safety.

Manufactured in Finland guaranteeing quality assurance.

This ABB fuse switch disconnector is ideal for use in electrical automation, industrial machinery, manufacturing plants, commercial electrical panels, and other heavy-duty electrical applications requiring safe disconnection and fuse protection.
