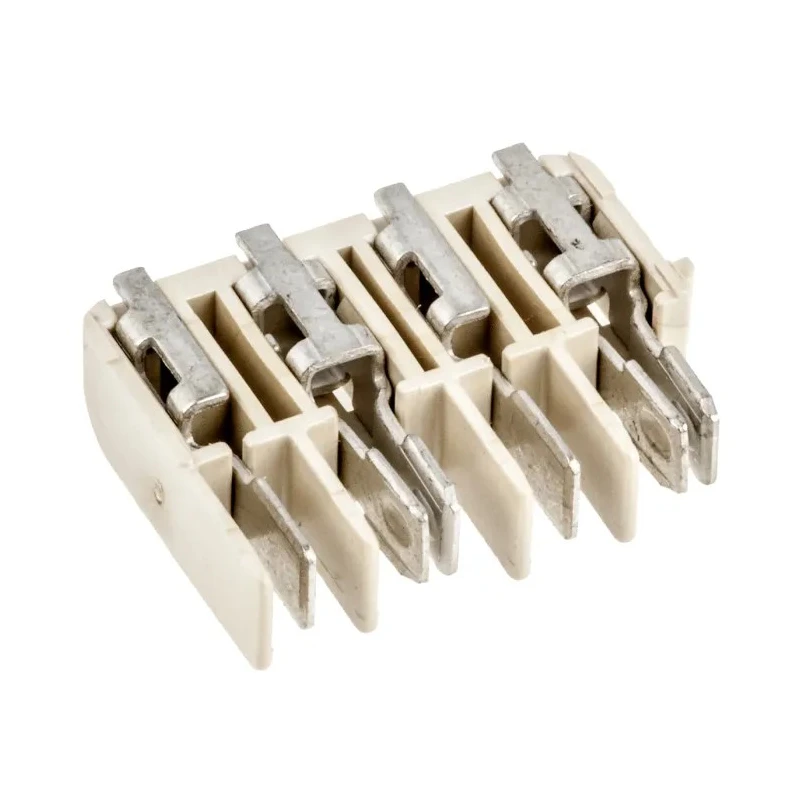

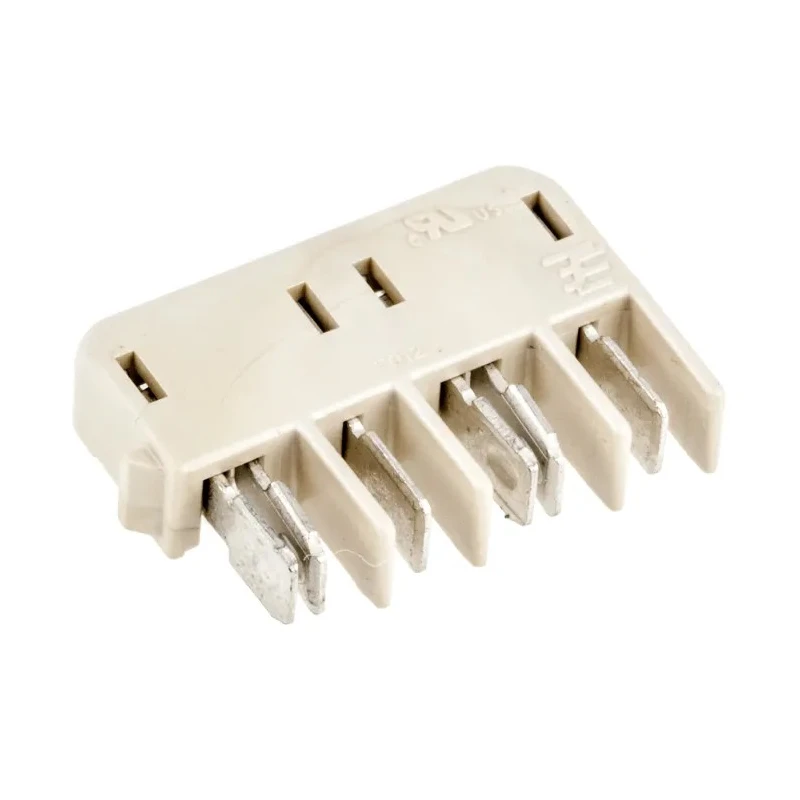

TE Connectivity Hermaphroditic Series Surface Board-to-Board Male Solder Lighting Connector 8-Pole 6A 125V AC 2058703-2

TE Connectivity 2058703-2 Hermaphroditic Series Surface Board-to-Board Male Solder Lighting Connector 8-Pole 6A 125V AC is engineered for high-performance electronic and LED lighting applications requiring robust and compact board-to-board connections.

This male connector of the Hermaphroditic series provides a surface mount termination via solder, ensuring reliability in manufacturing environments that utilize SMT and reflow soldering methods. Featuring a compact 8-pole design with a 4mm pitch and a single row configuration, it is ideal for applications such as LED lighting controls, LED strips, and channel lettering where space is at a premium.

Constructed from copper alloy with tin plating, the contacts provide excellent electrical conductivity and corrosion resistance. The connector mates to itself, allowing flexible usage and easy horizontal and vertical mating with articulation between 90° and 180° angles. A locking clip secures the connection for consistent mechanical stability.

The low-profile, flat surface design reduces shadowing effects in lighting installations and includes rounded corners for minimized interference. Redundant SMT pads improve solder joint reliability, and the solder pad footprint is compatible with Tyco Electronics SMT Poke-In LED connectors.

This connector complies with RoHS environmental standards, ensuring it meets safety and environmental regulations. It comes in a natural color finish suitable for various PCB applications and is designed as a single-row connector for straightforward board integration.

The connector supports an 8-pole format with a 4mm pitch for compact connections. It features a surface mount solder termination suitable for SMT and reflow processes. Constructed with a copper alloy contact material plated with tin to ensure reliable conductivity.

Compatible with in-line board-to-board connections and mates to itself for flexible configurations. Supports a maximum current of 6A at 125V AC with a low-profile, flat surface design. The connector includes a locking clip for secure mechanical retention during usage.

Application areas include LED lighting controls, LED strips, and channel lettering. Meets RoHS standards for environmental compliance. Designed for single-row mounting with a natural color finish.

Ideal for industrial, commercial, and LED manufacturing environments, this TE Connectivity Hermaphroditic Series Lighting Connector provides a dependable solution for technical board-to-board connections in electronic assembly manufacturing.
