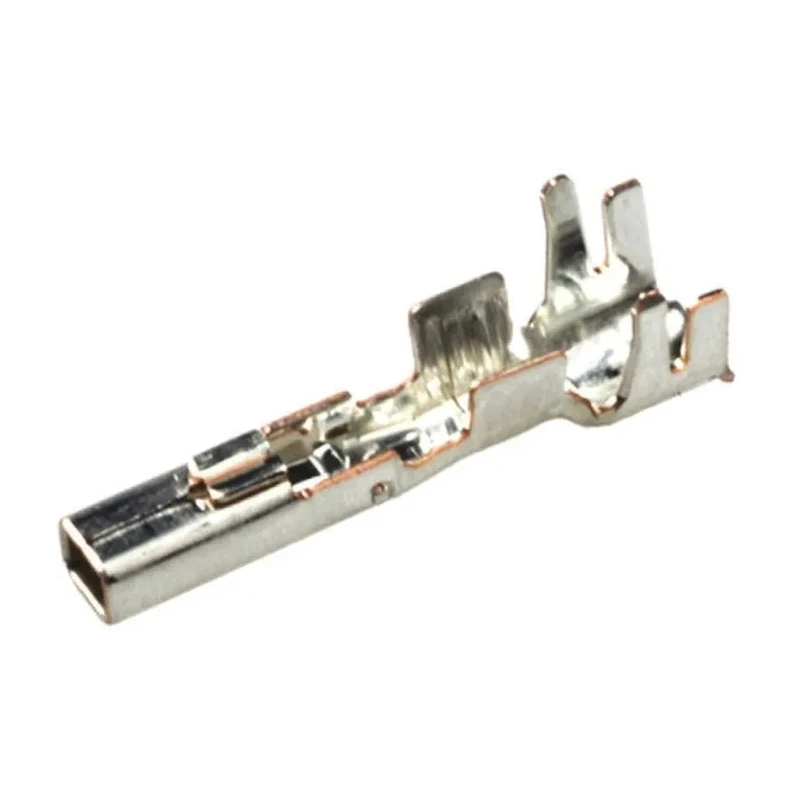

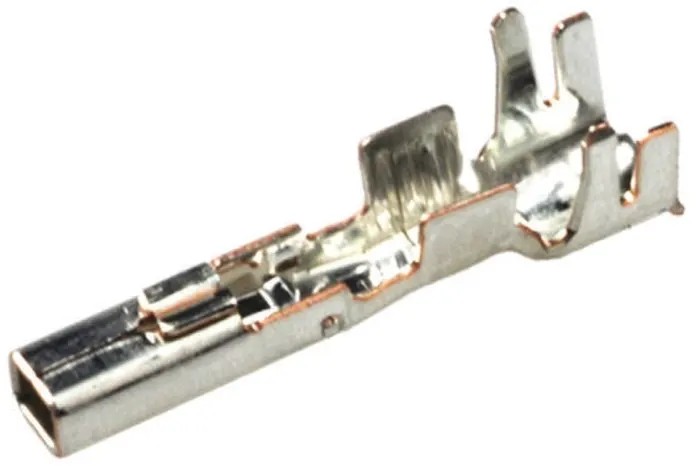

TE Connectivity Power Double Lock Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max 177914-1
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Model | 177914-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Power Double Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Power Double Lock Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- This female crimp terminal is designed for use with Power Double Lock connector housings.
- It supports a current rating of 14A ensuring reliable power transmission.
- Contact material is copper alloy plated with tin for durability and conductivity.
- Operating temperature ranges from -30°C to 105°C for versatile environmental use.
- The terminal termination type is crimp for secure wire attachment.
- Maximum contact resistance is 20 milliohms ensuring efficient electrical connections.
- Manufactured to reliable standards although no explicit approvals are indicated.
- Country of origin is Republic of Korea indicating quality manufacturing.
Product Description
TE Connectivity 177914-1 Power Double Lock Series Female Crimp Terminal is engineered for precise and secure power circuit applications. Its compact design allows robust connections particularly suited for devices such as refrigerators, air conditioners, washing machines, gas equipment, copying machines, and automatic vending machines.
The terminal is made from high-quality copper alloy with tin plating to ensure excellent conductivity and corrosion resistance. It crimps securely onto wires ranging from 26 AWG minimum to 22 AWG maximum wire size, supporting currents up to 14 amperes. The crimp termination offers a reliable mechanical and electrical connection, vital for industrial and commercial power assemblies.
Operating temperature resilience from -30°C to 105°C allows use in various environments. The maximum contact resistance of 20 milliohms guarantees minimal voltage drop and high efficiency in power delivery.
Designed for insertion into Power Double Lock connector housings, these terminals can be individually used or equipped with a double lock plate to prevent half-way mating of contacts, enhancing connection reliability in complex electrical systems.
This female crimp terminal is optimized for a compact power connector system. It offers dependable electrical contact performance through copper alloy and tin plating. Suitable for wiring in household appliances and industrial machines.
Ensures stable connections under wide temperature ranges and electrical load. Manufactured in Korea with quality assurance and industrial standards compliance.
Ideal for industrial, commercial, and HVAC electrical applications requiring high-performance power connectors. Explore more TE Connectivity products in Power Connectors at EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports a current rating of 14A, ensuring reliable power transmission.
It is designed to crimp onto wires ranging from 26 AWG minimum to 22 AWG maximum.
The contact material is copper alloy plated with tin, which provides excellent conductivity and corrosion resistance.
The maximum contact resistance is 20 milliohms, ensuring efficient electrical connections.
It operates within a temperature range of -30°C to 105°C, allowing for versatile environmental use.
This terminal is designed for use with Power Double Lock connector housings.
It features a crimp termination type for secure wire attachment.
It is optimized for power circuit applications in devices such as refrigerators, air conditioners, and washing machines.
The terminal is manufactured in Korea, indicating quality manufacturing standards.
It can be equipped with a double lock plate to prevent half-way mating of contacts, enhancing connection reliability.
The tin plating on the copper alloy contact material ensures durability and conductivity, which are vital for electrical performance.
While it is manufactured to reliable standards, no explicit approvals or certifications are indicated.
