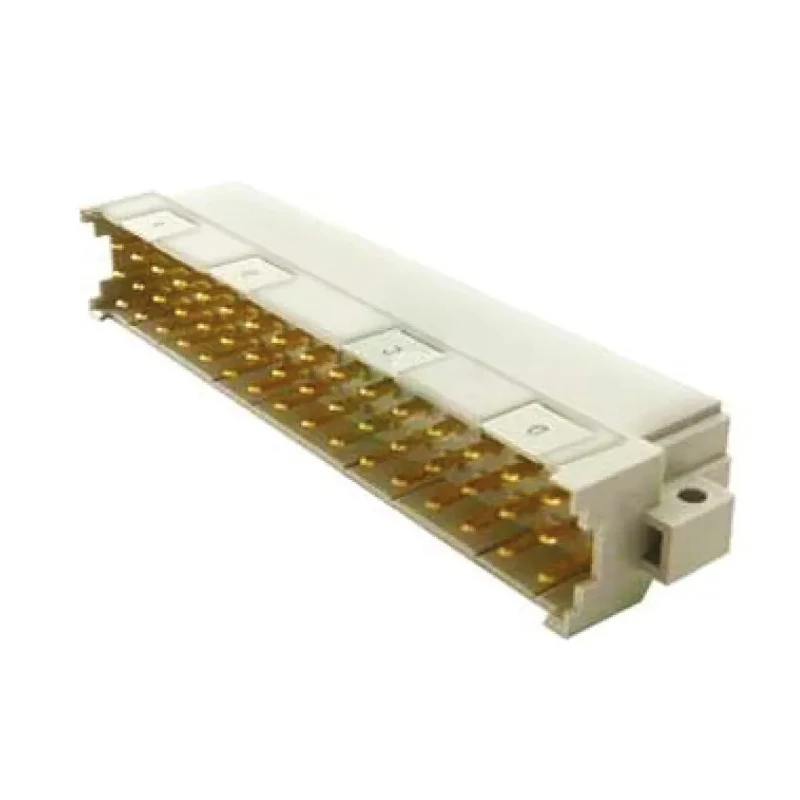

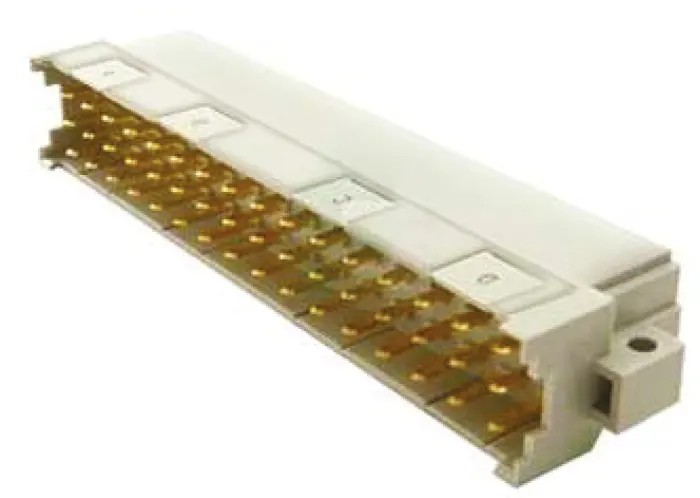

HARTING DIN 41612 Connector 09 06 48 Way 2.54 mm Pitch Type F Solder 3 Row Male Right Angle 09061482935
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 6A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 06 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | F |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-7010Brand: HARTINGManufacturers Part No.: 09061482935 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
Key Features
- This connector is designed with a 2.54 mm pitch and Type F solder termination.
- It supports a maximum current of 6A per contact and a voltage rating of 125V AC.
- The connector housing is made of glass fibre filled thermoplastic for robustness.
- Operating temperature range of -55°C to 125°C ensures performance in harsh environments.
- Copper alloy contacts plated with gold over nickel provide excellent conductivity and corrosion resistance.
- Maximum contact resistance is 15 milliohms, ensuring low signal loss.
- Right angle orientation and 3 row male contacts enable versatile mounting options.
- The connector series 09 06 offers high current capability and durability for industrial use.
Product Description
HARTING 09061482935 DIN 41612 Connector is a high-quality 48 way, 3 row male right angle connector featuring a 2.54 mm pitch and Type F solder termination. Designed for industrial applications, it delivers reliable performance for power supplies, railway transportation, and control card systems requiring robust board-to-board or cable connections.
The connector supports a maximum current of 6A per contact and operates at voltages up to 125V AC. Its housing is constructed from glass fibre filled thermoplastic resin, offering durability and resistance against harsh environments. The copper alloy contacts are plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance, while maintaining a maximum contact resistance of 15 milliohms.
Operating temperature ranges from -55°C to 125°C enable usage in extreme temperature conditions. The right angle orientation and 3-row male contact design provide flexible installation options in various electronic setups.
Part of the '09 06' series, this connector is engineered for high current capacity and long-term reliability. Manufactured in Germany, this product is suitable for demanding industrial environments including railway and power supply applications.
This product ensures secure and durable electrical connections for backplane and rack assemblies. The solder termination guarantees a solid and lasting contact on PCBs. Glass fibre filled thermoplastic housing provides mechanical strength and flame resistance.
Gold over nickel plating on contacts enhances signal integrity and lifespan. Wide operating temperature range supports diverse industrial conditions. Right angle male connector design facilitates compact and efficient motherboard layouts.
Ideal for control cards, power supplies, and railway transport electronic systems. Contacts rated for 6A maximum current maintain stable power distribution. The connector conforms to typical industrial quality expectations though no formal certifications are specified.
Explore the HARTING connector range for additional DIN 41612 backplane and rack connector solutions at EnvMart.
Explore more products in our Power Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current of 6A per contact.
It has a voltage rating of 125V AC.
The pitch size is 2.54 mm.
The housing is made of glass fibre filled thermoplastic, and the contacts are copper alloy plated with gold over nickel.
It operates within a temperature range of -55°C to 125°C.
This connector features 48 contacts.
It uses a Type F solder termination.
The connector is designed with a right angle orientation.
The maximum contact resistance is 15 milliohms.
This connector is manufactured in Germany.
It belongs to the '09 06' series.
It is suitable for industrial applications such as power supplies, railway transportation, and control card systems.
