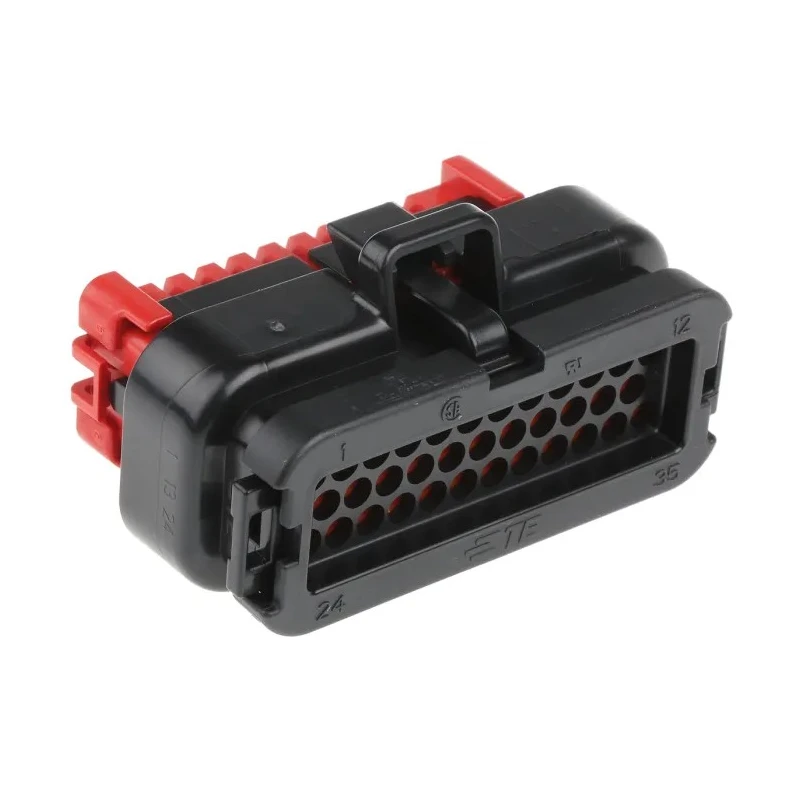

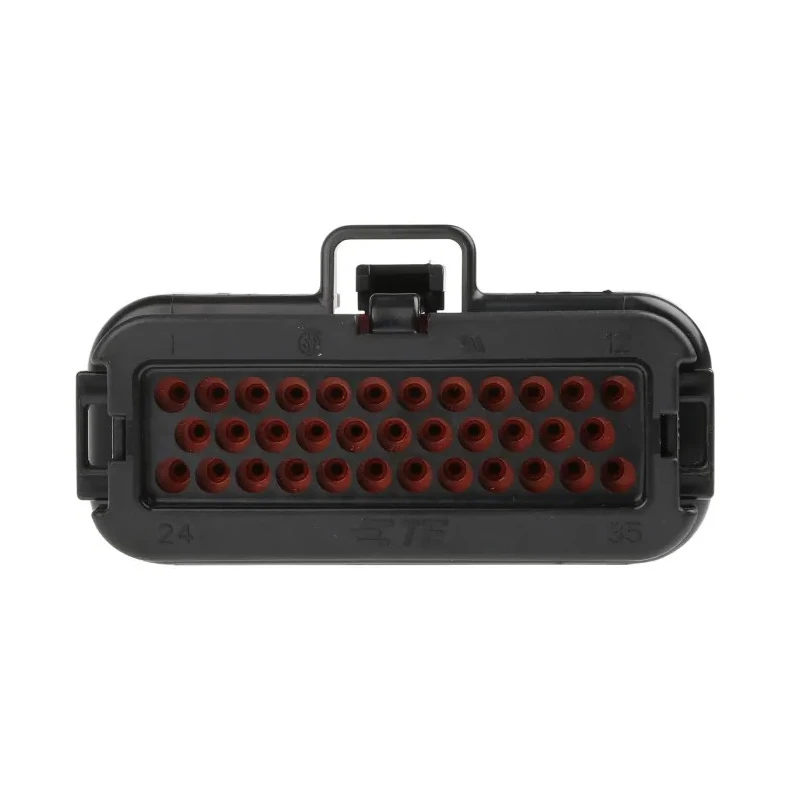

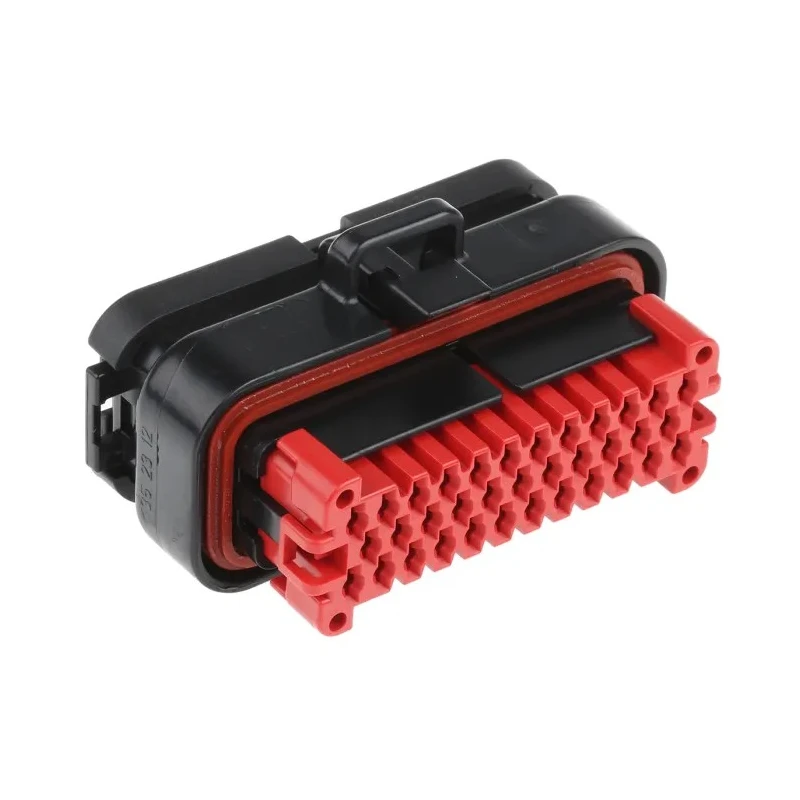

TE Connectivity Ampseal Polybutylene Terephthalate Horizontal Female 35 Way Housing 776164-1

TE Connectivity 776164-1 Ampseal Horizontal Female 35 Way Housing is a high-quality Connector Housing designed for automotive electrical applications requiring robust, reliable connections. It is manufactured from polybutylene terephthalate (PBT), a thermoplastic known for its excellent mechanical strength and thermal stability.

This housing accommodates 35 female contacts sized 1.3mm, compatible with wires ranging from 16 AWG to 20 AWG. The connector features a horizontal orientation and integrates silicone rubber seals, providing effective environmental sealing against dust and water.

Built to meet the demanding conditions of automotive and industrial sectors, the 776164-1 housing carries an industry-standard ingress protection rating of IP6K9K. This rating certifies full dust tightness and resistance to powerful water jets, making the connector suitable for harsh environments like off-road vehicles and agricultural machinery.

The connector supports both gold and tin plated contacts, enabling current ratings up to 17A for gold and 8A for tin versions. The AMPSEAL technology includes a two-piece contact hold and secondary locking mechanism to ensure contacts remain firmly seated even under mechanical stresses.

Operating temperature range from -40°C to +125°C allows this connector to function reliably in extreme cold and heat. The robust construction and integrated latch system provide secure mating and ease of installation.

Applications span heavy-duty industrial use, off-road automotive, and agricultural equipment where durable and environmentally sealed electrical connections are critical. The housing supports 35 female contacts with a 1.3mm terminal size suitable for 16 and 20AWG wire sizes.

Constructed with durable black polybutylene terephthalate material ensuring high reliability and mechanical strength. Features horizontal orientation and integrated silicone rubber seals offering environmental protection.

Rated IP6K9K for waterproofing and dust protection suitable for harsh automotive environments. Compatible with gold or tin plated contacts supporting current ratings up to 17A and 8A respectively. Designed to withstand operating temperatures from -40°C to +125°C ensuring stable performance in extreme conditions.

Integrated latch and two-piece contact hold provide secure mating and secondary locking to prevent contact loss. Common applications include off-road automotive, agricultural, and heavy-duty industrial uses requiring robust electrical connections.
