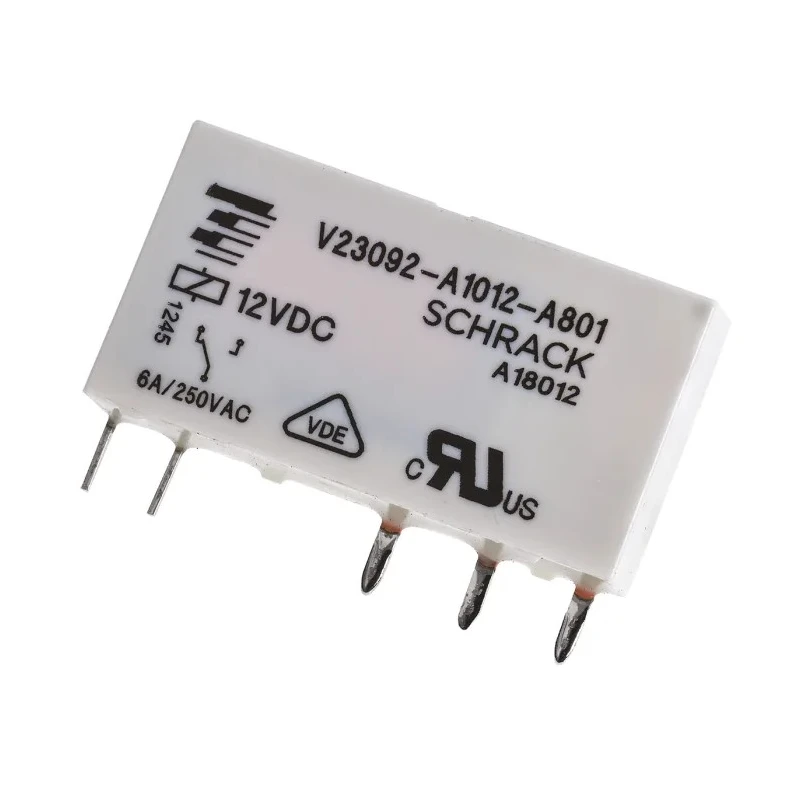

TE Connectivity PCB Power Relay 12V DC Coil 6A Switching Current SPDT V23092A1012A801
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092A1012A801 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | VDE Cert. No. 40010063, UL E214025, IEC 61810-1, EN60730-1 |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- This relay features a compact design with a 5mm thickness for high-density PCB mounting.
- The coil power is low at 170mW, ensuring energy-efficient operation.
- Operating temperature range extends from -40°C up to 85°C, suitable for diverse environments.
- Has a silver nickel alloy contact material providing durability and reliable conductivity.
- Isolation coil to contact withstands up to 4000Vac, ensuring operational safety.
- Switching AC voltage rating is 400V AC with a switching power of 1.5kVA.
- Mounting type is PCB with solder terminal configuration.
- The relay meets international standards including VDE, UL, IEC 61810-1, and EN60730-1 approvals.
Product Description
TE Connectivity V23092A1012A801 PCB Power Relay is engineered for high-density PCB mounting with a slim form factor and low coil power consumption of 170mW. It is designed for reliable switching performance in industrial, automation, and electrical equipment applications.
This relay operates at a coil voltage of 12V DC and supports a switching current of 6A with an SPDT contact configuration, making it versatile for a variety of control circuits. The silver nickel alloy contacts ensure long-term durability and excellent conductivity.
The relay has an operating temperature range of -40°C to +85°C, supporting use in harsh environments. It features an isolation voltage of 4000Vac between coil and contact, ensuring enhanced safety and electrical isolation during operation.
Measuring 28mm in length, 15mm in height, and 5mm in width, this slim relay fits securely onto PCBs with solder terminals for easy mounting. Designed to meet VDE, UL, IEC 61810-1, and EN60730-1 certifications, it complies with stringent international safety and quality standards.
Ideal for industrial automation, electrical equipment, HVAC systems, and manufacturing process control, this power relay provides durable, energy-efficient switching capabilities. This relay features a compact design with a 5mm thickness for high-density PCB mounting.
The coil power is low at 170mW, ensuring energy-efficient operation. Operating temperature range extends from -40°C up to 85°C, suitable for diverse environments. Has a silver nickel alloy contact material providing durability and reliable conductivity.
Isolation coil to contact withstands up to 4000Vac, ensuring operational safety. Switching AC voltage rating is 400V AC with a switching power of 1.5kVA. Mounting type is PCB with solder terminal configuration. Dimensions are 28mm length, 15mm height, and 5mm width facilitating compact assembly.
The relay meets international standards including VDE, UL, IEC 61810-1, and EN60730-1 approvals. Country of origin is Czech Republic, ensuring European quality manufacturing. Explore the TE Connectivity product range on EnvMart for advanced electronic switching and relay solutions designed to meet demanding industrial and commercial requirements.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of 6A.
This relay measures 28mm in length, 15mm in height, and 5mm in width.
The operating temperature range extends from -40°C to +85°C.
It features a Single Pole Double Throw (SPDT) contact configuration.
The isolation voltage between the coil and contact withstands up to 4000Vac.
The switching AC voltage rating is 400V AC.
The contacts are made of silver nickel alloy, providing durability and reliable conductivity.
It is designed for PCB mounting with a solder terminal configuration.
It meets international standards including VDE, UL, IEC 61810-1, and EN60730-1.
The coil power consumption is low at 170mW, ensuring energy-efficient operation.
The relay is manufactured in the Czech Republic.
