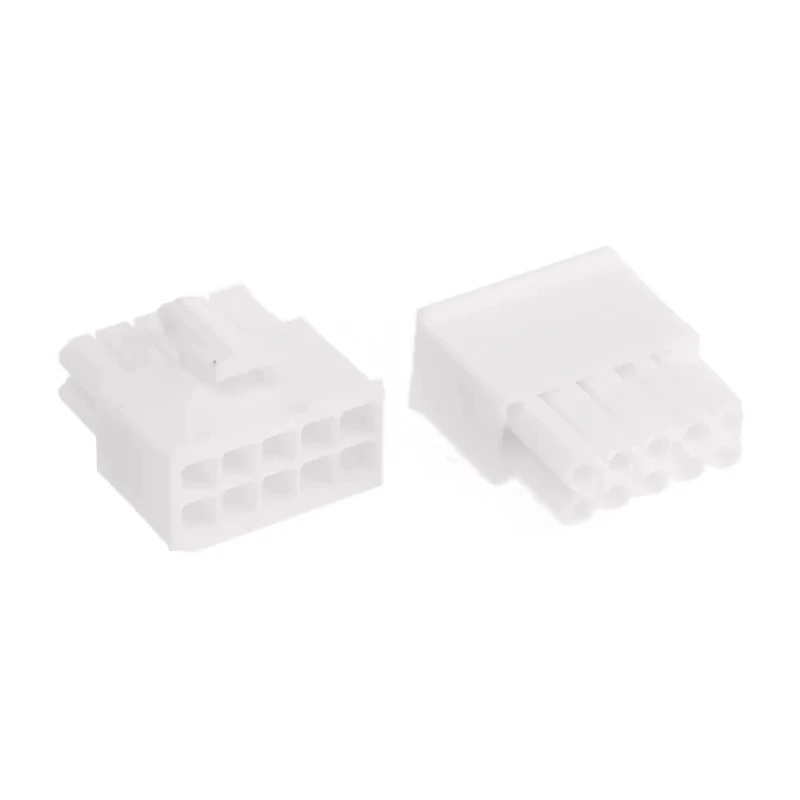

TE Connectivity Mini-Universal MATE-N-LOK Male Connector Housing 4.14 mm Pitch 10 Way 2 Row Straight 770580-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 22.4mm |
| Model | 770580-1 |
| Width | 15.19mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | Mini-Universal MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| For Use With | Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 10 |
| Connector Gender | Male |
Key Features
- Constructed from rugged polyamide material ensuring durability and resistance.
- Features full polarization to prevent mismating and positive locking for secure connection retention.
- Designed for use with centerline soft shell pin and socket connectors.
- Compact 15.19 mm width and 22.4 mm length for efficient cable mounting.
- Supports wire-to-wire and wire-to-panel configurations with splash proof design.
- Offers low insertion and extraction force for ease of use during assembly and maintenance.
- Complies with UL, CSA, and VDE approvals for industrial safety standards.
- Ideal for consumer electronics, power supplies, HVAC, lighting, and portable devices.
Product Description
TE Connectivity 770580-1 Mini-Universal MATE-N-LOK Male Connector Housing is engineered for industrial and commercial wiring applications requiring secure and durable connections. This connector housing features a 10 way, 2 row straight configuration with a 4.14 mm pitch, making it suitable for a wide range of electronic and power connector uses.
Manufactured from polyamide material, the housing provides excellent mechanical strength and resistance to environmental factors, ensuring long service life in demanding conditions. Its full polarization prevents incorrect mating, while the positive locking mechanism guarantees retention during operation.
Designed for cable mounting, this connector housing is compatible with centerline soft shell pin and socket connectors. The compact dimensions of 15.19 mm width and 22.4 mm length allow for efficient installation even in confined spaces. The splash proof design extends its application to environments where moisture or sealing is a concern.
This Connector Housing reduces assembly efforts with low insertion and extraction forces, optimizing production efficiency and maintenance. It has been certified by UL, CSA, and VDE, underlining its compliance with international safety and quality standards.
Common applications include consumer electronics, commercial power supplies, HVAC systems, lighting installations, and portable devices requiring robust wire-to-wire or wire-to-panel connectivity.
Manufactured with rugged polyamide material for durability. Fully polarized design to avoid incorrect mating. Positive locking mechanism for secure connection retention. Compatible with centerline soft shell pin and socket connectors.
Compact size enabling versatile mounting options. Splash proof design suitable for sealed environments. Certified to UL, CSA, and VDE standards. Suitable for a variety of industrial and consumer applications. Explore the extensive range of TE Connectivity connectors on EnvMart to find compatible products and solutions tailored to your industrial and electronic connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 4.14 mm.
This connector housing supports 10 contacts.
The dimensions of the housing are 22.4 mm in length and 15.19 mm in width.
The housing is constructed from polyamide material, which provides mechanical strength and resistance to environmental factors.
This model is designed for cable mounting.
The orientation of this connector housing is straight.
It is compatible with centerline soft shell pin and socket connectors.
Yes, it complies with UL, CSA, and VDE safety standards.
The housing features a positive locking mechanism that guarantees secure connection retention during operation.
Yes, it has a splash proof design suitable for environments where moisture is a concern.
This model is suitable for applications in consumer electronics, power supplies, HVAC systems, lighting, and portable devices.
The connector housing is manufactured in India.
