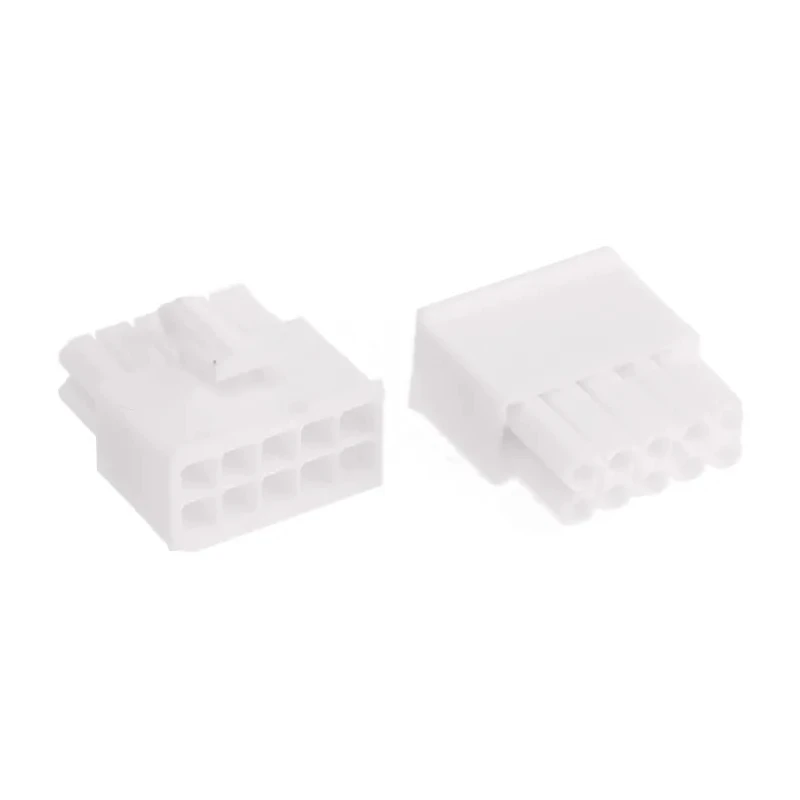

TE Connectivity Mini-Universal MATE-N-LOK Male Connector Housing, 4.14 mm Pitch, 10 Way, 2 Row Straight 770580-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 22.4mm |
| Model | 770580-1 |
| Width | 15.19mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | Mini-Universal MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| For Use With | Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 10 |
| Connector Gender | Male |
Key Features
- The housing is constructed from durable polyamide material for industrial use.
- It features a positive locking mechanism for secure mating retention.
- Accommodates both pin and socket contacts with a fully polarized design to prevent mismating.
- Low insertion and extraction forces enhance usability.
- Compact size with dimensions of 22.4 mm length and 15.19 mm width.
- Designed for cable mount applications with flange panel mounting capability.
- Compatible with centerline soft shell pin and socket connectors.
- Splash proof design suitable for sealed applications and fittings.
Product Description
TE Connectivity 770580-1 Mini-Universal MATE-N-LOK Male Connector Housing is a robust and reliable connector designed for industrial and commercial applications. Featuring a 4.14 mm pitch with 10 ways arranged in 2 rows, this straight male connector housing provides secure and efficient cable mounting solutions.
Manufactured from high-quality polyamide, the housing ensures durability in demanding environments. Its fully polarized design prevents mismating, enhancing connection reliability. The positive locking mechanism provides secure retention to mating connectors, while low insertion and extraction forces facilitate easy installation and maintenance.
The compact dimensions of 22.4 mm length and 15.19 mm width make it suitable for a range of electronic assemblies where space optimization is needed. This connector housing accepts both pin and socket contacts and supports wire-to-wire and wire-to-panel configurations, enabling versatile usage.
Its splash-proof design makes it ideal for applications requiring sealing against environmental factors, including consumer electronics, power supplies, HVAC systems, commercial equipment, and portable devices.
The housing is constructed from durable polyamide material for industrial use. Features a positive locking mechanism for secure mating retention. Fully polarized design to prevent mismating of connectors. Low insertion and extraction force for ease of use.
Compatible with centerline soft shell pin and socket connectors. Compact and rugged design with flange panel mounting options. Splash proof for applications requiring environmental sealing. Suitable for consumer electronics, commercial, and HVAC applications.
Supports cable mounting in wire-to-wire and wire-to-panel setups.
This connector housing is part of TE Connectivity's Mini-Universal MATE-N-LOK series, known for reliable performance in various industrial and commercial settings. Its design supports efficient connectivity and maintenance, making it a preferred choice for engineers and technicians.
Explore our selection of Connector Housings and enhance your electronic assembly with TE Connectivity's trusted products available in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 4.14 mm.
This model supports 10 ways arranged in 2 rows.
The housing is constructed from durable polyamide material.
The dimensions are 22.4 mm in length and 15.19 mm in width.
Yes, it features a splash-proof design suitable for sealed applications.
It is designed for cable mount applications with flange panel mounting capability.
It accommodates both pin and socket contacts, supporting versatile configurations.
The orientation of this connector housing is straight.
It is suitable for consumer electronics, power supplies, HVAC systems, commercial equipment, and portable devices.
Yes, it features a positive locking mechanism for secure mating retention.
This model is part of the Mini-Universal MATE-N-LOK series by TE Connectivity.
The connector gender of this housing is male.
