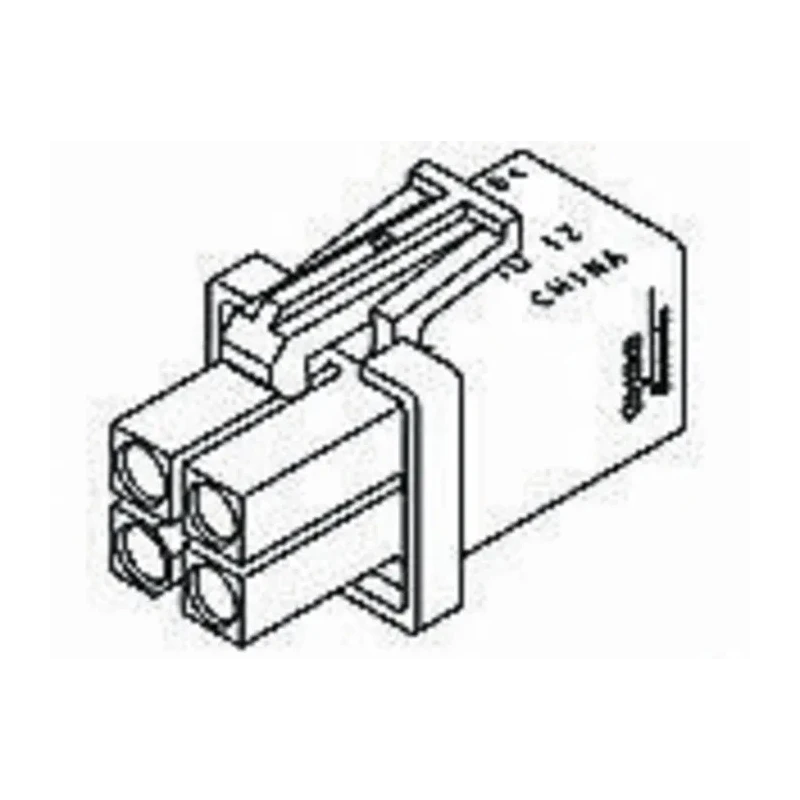

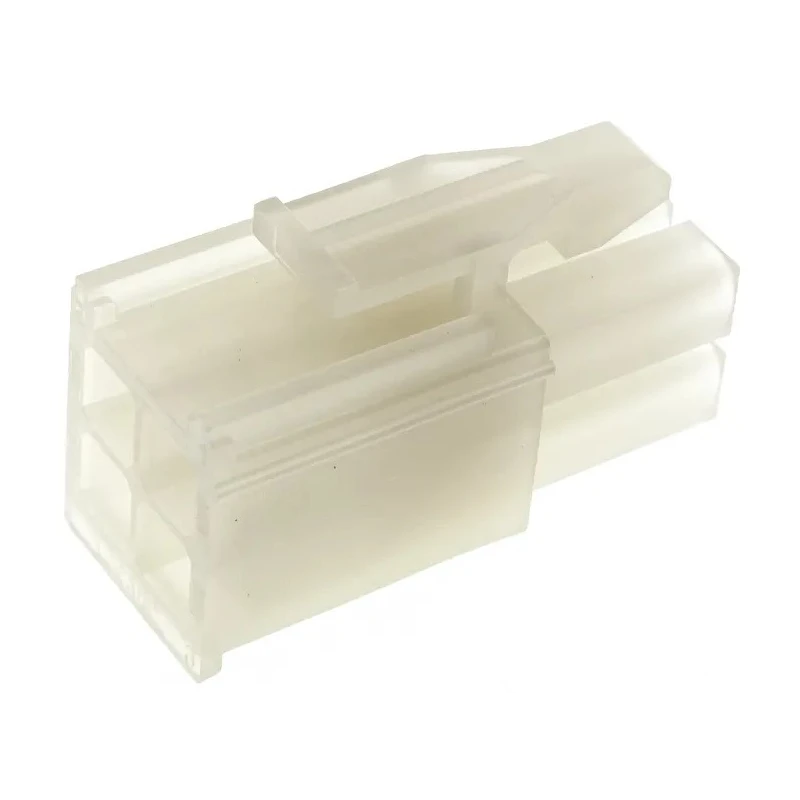

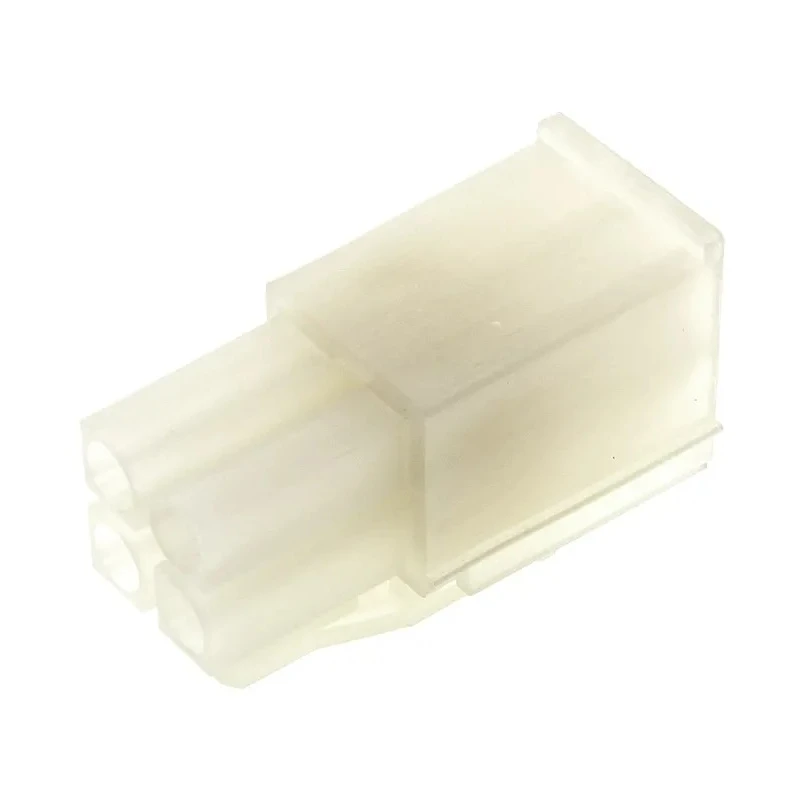

TE Connectivity Mini-Universal MATE-N-LOK Male Connector Housing 4.14 mm Pitch 4 Way 2 Row Straight 172338-1

TE Connectivity 172338-1 Mini-Universal MATE-N-LOK Male Connector Housing is a precision-engineered wire-to-board connector housing designed with a 4.14 mm pitch, arranged as a 4-way, 2-row straight configuration. Manufactured from rugged nylon, it ensures durability and reliable electrical connections in industrial and commercial environments.

This connector housing features a full polarization with a positive locking mechanism, which effectively prevents mismating and guarantees secure retention during operation. Its compact size and durable design enable it to withstand demanding applications while providing ease of assembly with low insertion and extraction forces.

The housing is suitable for use with Universal MATE-N-LOK contacts, accommodating both pin and socket styles, enabling versatile wiring configurations including wire-to-wire and wire-to-panel connections. It includes flange mounting options to facilitate panel attachment, enhancing versatility in industrial layouts.

Key advantages include splash proof sealing, making it apt for applications requiring environmental protection, particularly in areas such as HVAC, lighting systems, consumer electronics, and power supply assemblies. The male connector gender and cable mount type allow straightforward cable interfacing on PCB designs.

Dimensions of 9.8 mm length and 11.81 mm width make this connector compact for tight installation spaces. Despite the absence of formal approvals listed, the MATE-N-LOK series is recognized for its reliability across various technical industries.

The housing is constructed of durable nylon material for rugged industrial applications. Fully polarized design minimizes wiring errors and ensures proper mating. Positive locking mechanism secures connections for long-term reliability.

Supports both pin and socket contacts for flexible wiring configurations. Splash proof design enables use in environments requiring moisture resistance. Compact 4.14 mm pitch spacing suits dense PCB layouts. Flange mounting option allows for stable panel installation.

This TE Connectivity Mini-Universal MATE-N-LOK connector is ideal for electronic manufacturing, HVAC systems, commercial lighting, and power supply integration. Its robust construction and reliable mating capabilities support industrial, laboratory, and commercial electronic use cases.
