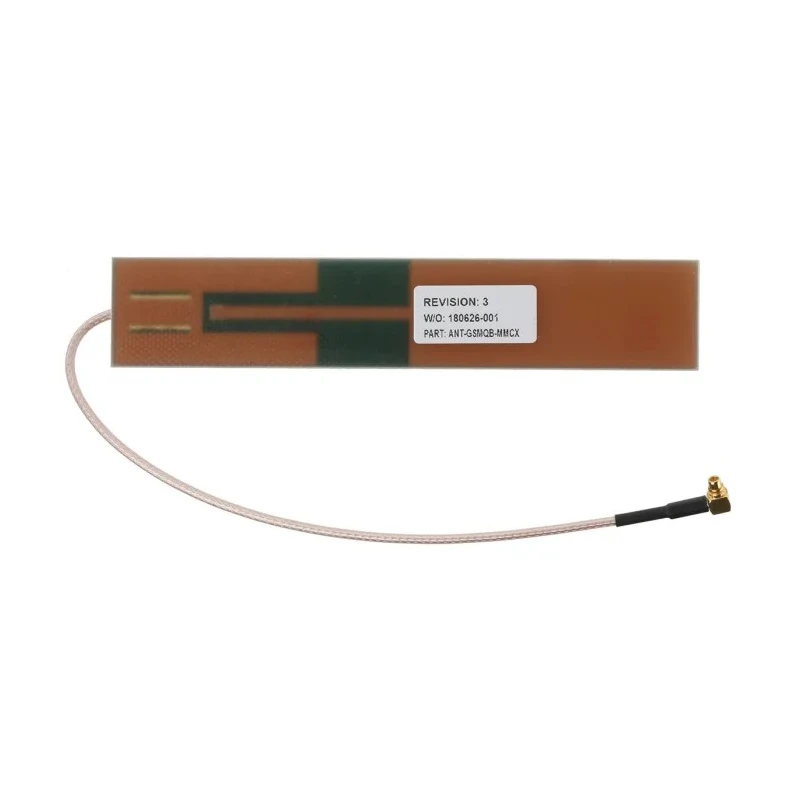

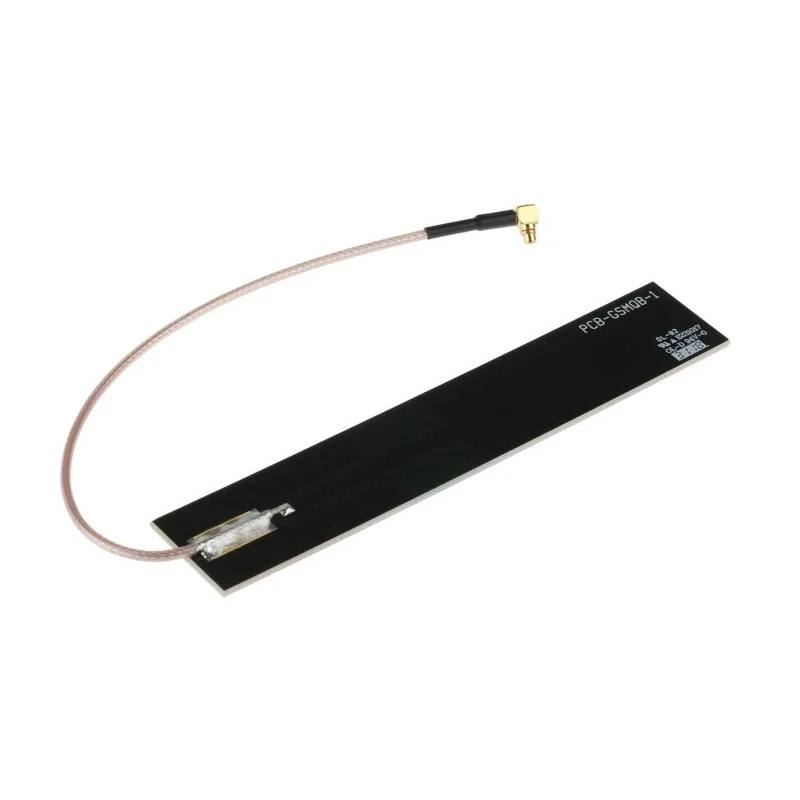

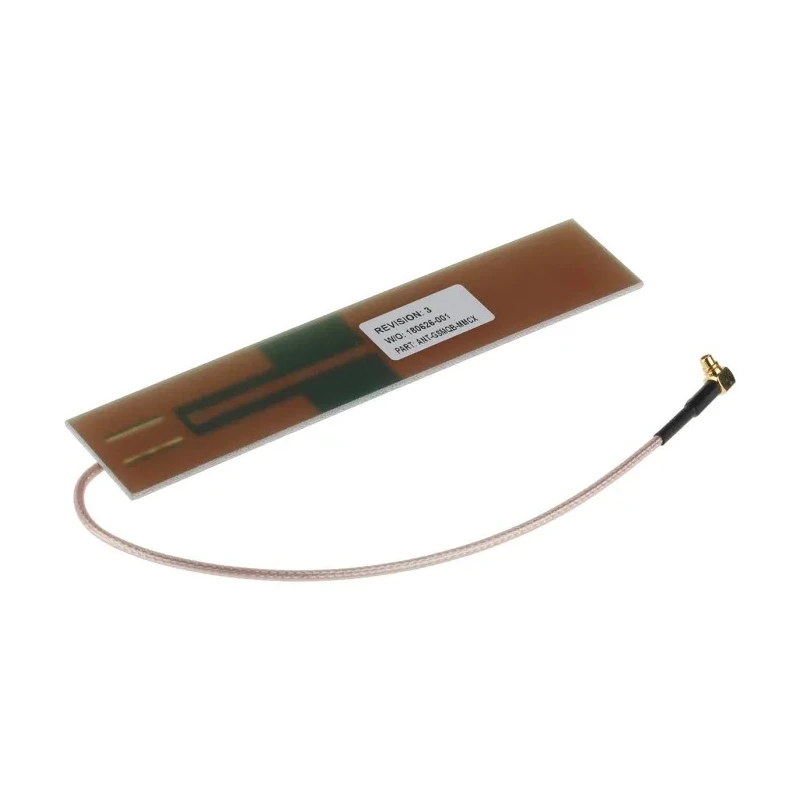

RF Solutions Square Omni-Directional GSM Quad Band Antenna with MMCX Connector ANT-GSMQB-MMCX
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RF Solutions |
| Model | ANT-GSMQB-MMCX |
| Connector Type | MMCX |
| Gain | 1dBi |
| Lead Length | 0.1m |
| Standards/Approvals | CE |
| Maximum Frequency | 1.9GHz |
| Minimum Frequency | 850MHz |
| Antenna Physical Form | Square |
| Antenna Mount Type | PCB |
| Directivity | Omni-Directional |
| Active gain | +1dB |
| VSWR 2 | 1 |
Key Features
- Miniature worldwide quad band antenna supporting 850MHz to 1.9GHz frequencies.
- Features a 90° fixing MMCX connector with a 0.1m RG178 connecting lead.
- Provides an active gain of +1dB and 1dBi antenna gain with linear polarization.
- PCB mounted antenna measuring 110x20x5mm, independent of groundplane.
- Compliant with CE standards for reliable performance.
- Designed for mobile communications including GSM, GPRS, 2G, 3G, and 4G networks.
- Supplied with lead included for easy installation on PCB mount types.
Product Description
RF Solutions ANT-GSMQB-MMCX is a compact square omni-directional antenna engineered for GSM quad band applications, featuring a MMCX connector suitable for PCB mounting. It covers frequencies from 850MHz up to 1.9GHz, making it ideal for mobile communication systems including GSM, GPRS, 2G, 3G, and 4G networks.
This antenna delivers an active gain of +1dB and an antenna gain of 1dBi with linear polarization, providing stable and reliable signal reception and transmission. Its omni-directional directivity ensures consistent coverage in all directions. The PCB dimensions are 110x20x5 mm, with a 15 cm RG178 connecting lead included, allowing flexible installation.
The MMCX connector is fixed at a 90° angle for secure connection in space-constrained environments. The antenna is groundplane independent, facilitating versatile mounting options without degradation in performance. Compliance with CE standards guarantees safety and electromagnetic compatibility.
The compact size and durable construction make it convenient for integration in a variety of electronic equipment.
Package does not specify additional accessories or tools; the antenna is supplied ready for installation on PCB mounts with the lead included. Manufactured in the United Kingdom, it adheres to high-quality standards ensuring longevity and performance in demanding environments.
Miniature worldwide quad band antenna with MMCX connector. Omni-directional antenna with active gain of +1dB. PCB mount type with groundplane independent performance. VSWR of 2:1 for optimal impedance matching. CE approved for quality assurance.
Includes 0.1m lead with RG178 cable for easy connection. Suitable for GSM/GPRS/2G/3G/4G mobile communication applications. Explore more antennas and RF components in the Electronics Components category at EnvMart for all your industrial and commercial telecommunications needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a frequency range from 850MHz to 1.9GHz, making it suitable for various mobile communication applications.
It provides an active gain of +1dB and an antenna gain of 1dBi, ensuring effective signal reception and transmission.
This antenna is equipped with an MMCX connector, which is fixed at a 90° angle for secure connections in tight spaces.
The antenna measures 110mm x 20mm x 5mm, making it compact for various installations.
Yes, it is compliant with CE standards, ensuring safety and electromagnetic compatibility.
This model features omni-directional directivity, providing consistent coverage in all directions.
It includes a 0.1m RG178 connecting lead for easy installation on PCB mounts.
The antenna has a VSWR rating of 2:1, which indicates optimal impedance matching.
It is manufactured in the United Kingdom, adhering to high-quality standards.
No additional accessories are specified; the antenna is supplied ready for installation with the lead included.
The antenna has a square physical form, which is designed for PCB mounting.
