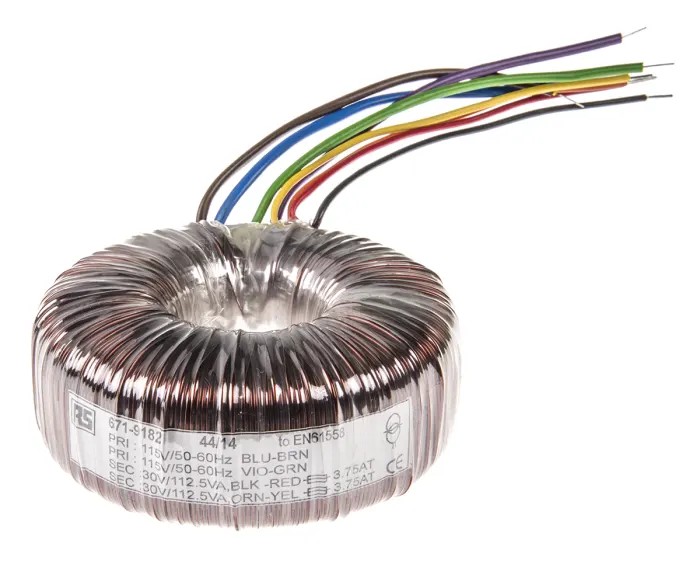

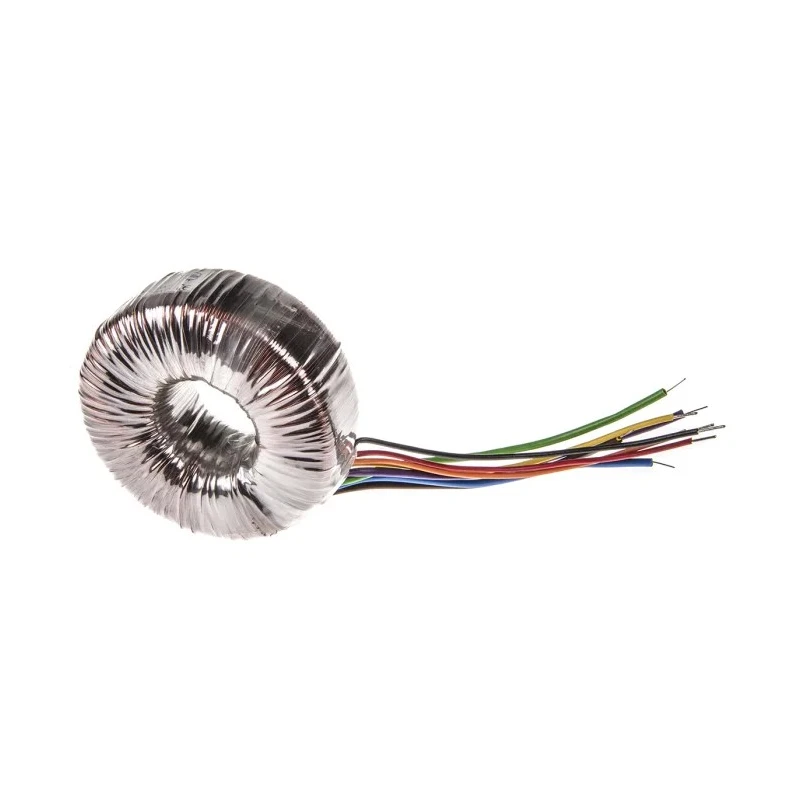

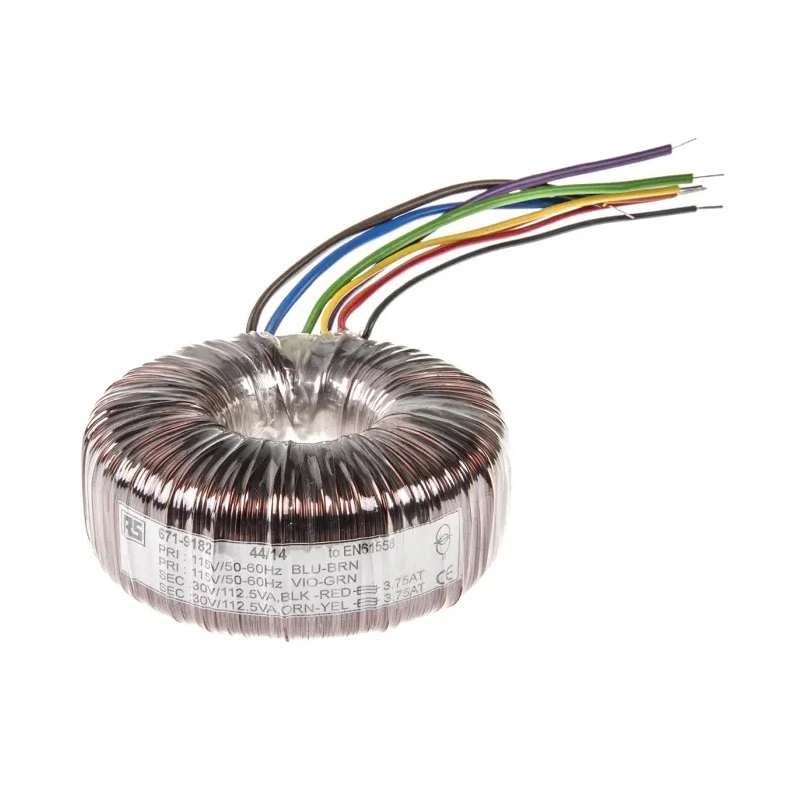

RS PRO 230 V AC Toroidal Transformer Dual 2 x 30 V AC Outputs 225 VA Model 671-9182

RS PRO 671-9182 is a high-quality toroidal transformer designed for industrial and electronic component applications. It features a primary voltage of 230 V AC with dual secondary outputs of 2 x 30 V AC, delivering a power rating of 225 VA. The transformer is suitable for operating frequencies between 50 Hz and 60 Hz, making it versatile for various power supply environments.

The unit incorporates dual 115 V AC primary windings, which can accommodate 50/60 Hz frequency, providing flexibility for multiple use-cases. The two secondary windings can be connected in series or parallel connections or used independently, allowing tailored voltage outputs depending on user requirements.

Physically, the transformer has a diameter of 120 mm and a height of 50 mm, occupying a smaller footprint with reduced weight of just 2.3 kg compared to conventional stacked lamination transformers. This compact size and low weight make it ideal for applications where space and weight are constraints.

Constructed with copper conductor terminations, the transformer guarantees dependable electrical connections while maintaining a very low level of radiated magnetic fields, minimal hum, and exceptionally low iron losses. The double insulation on the primary leads further improves operational safety.

The RS PRO 671-9182 toroidal transformer is designed for use in various industrial, laboratory, manufacturing, power supply, and electronic applications demanding efficient and quiet voltage transformation. It does not come supplied with mounting hardware, which must be procured separately. Care must be taken to avoid shorted-turn risks by ensuring that fixing bolts do not contact the metal chassis simultaneously.

Features dual 115 V AC primary windings supporting 50/60 Hz operation. The dual secondary windings can be connected in series, parallel, or used independently. Compact size with a diameter of 120 mm and height of 50 mm. Constructed with copper conductor terminations for reliable electrical connections.

Low noise operation with very low iron loss and minimal hum. Lightweight at 2.3 kg compared to traditional stacked lamination transformers. Designed for industrial and electronic power supply applications requiring efficient voltage transformation.

Double insulated primary leads for enhanced safety.
