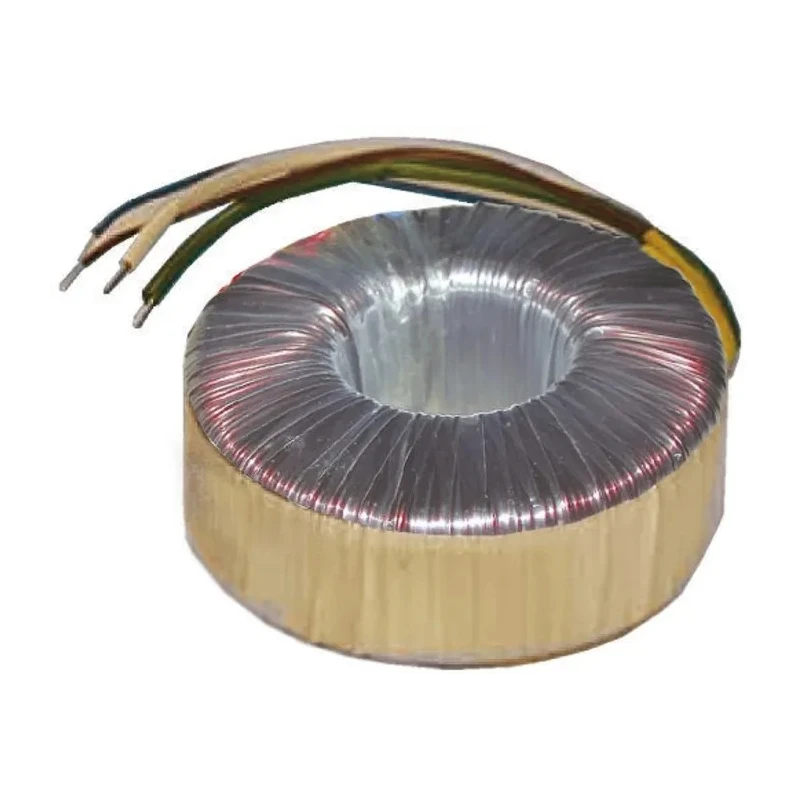

RS PRO Toroidal Transformer 230 V AC Primary 2 x 55 V AC Secondary 160 VA Dual Output 671-9163

RS PRO model 671-9163 toroidal transformer is designed with 230 V AC dual 115 V AC primary windings and two independent 2 x 55 V AC secondary outputs capable of delivering 160 VA power capacity. This open wound toroidal transformer operates efficiently in the frequency range of 50 to 60Hz, making it suitable for various industrial, electronic, laboratory, and manufacturing applications.

Measuring 109 mm in diameter and 46 mm in height, the transformer offers a compact form factor, facilitating easy integration into electronic assemblies and power supplies with limited space. The copper conductor termination ensures secure and durable electrical connections for reliable performance.

Weighing 1.74 kg, the transformer exhibits extremely low radiated magnetic fields and low induced noise (hum), significantly reducing interference in sensitive electronic circuits. Its low iron loss design enhances efficiency and reduces operational heat generation. The transformer complies with the highest safety standards, including RoHS, VDE0570 Class II, EN 61558 Class II, IEC 61558 Class II, and UL 506 certification, reflecting its quality and conformity to industrial norms.

The dual 115 V AC primary windings enable versatile connections for single or dual supply lines. The twin secondary windings can be configured in series or parallel, or used independently according to circuit requirements.

Note that mounting hardware is not included with this transformer and should be sourced separately. Care must be taken to avoid any metal chassis contact with both ends of the fixing bolt to prevent hazardous shorted turns.

This Toroidal Transformer features a dual 115 V AC primary winding suitable for 50/60Hz operation. It delivers two independent secondary outputs that can be connected in series or parallel. The transformer is compact with a diameter of 109 mm and 46 mm height, ensuring space-saving installation.

Its copper conductor termination type ensures reliable electrical connection. Weighing 1.74 kg, it offers low noise and low iron loss performance. Certified with RoHS, VDE0570 Class II, EN 61558 Class II, IEC 61558 Class II, and UL 506 standards for safety and compliance.

The design features double insulated primary leads for enhanced safety. It is ideal for use in industrial, electronic, laboratory, and manufacturing power supply applications.
