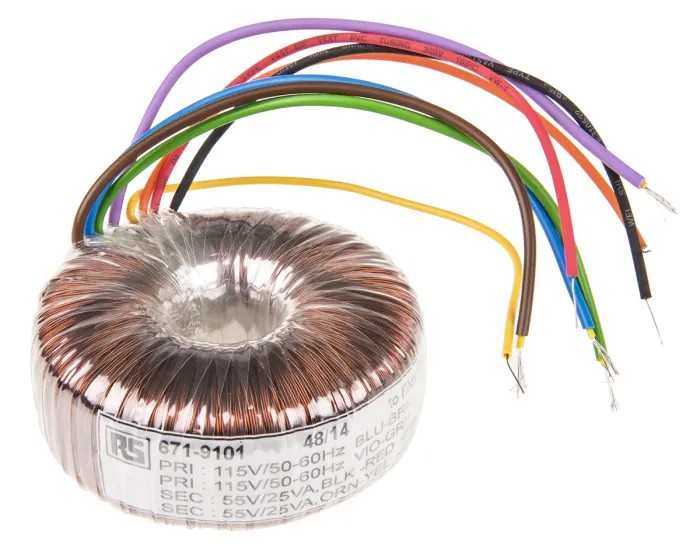

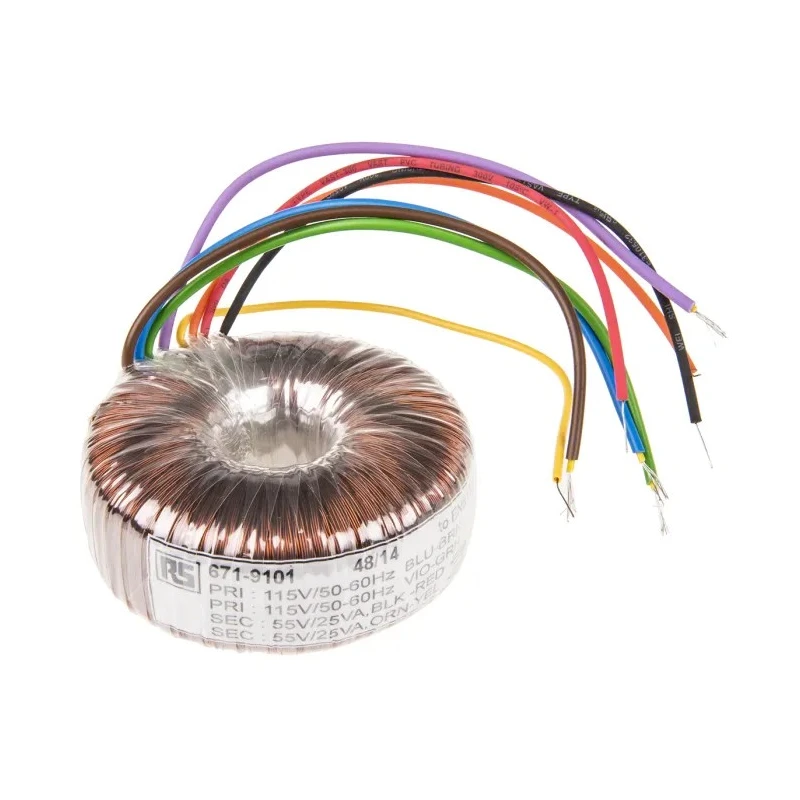

RS PRO Toroidal Transformer 230 V AC 2 x 55 V AC 2 Output 50 VA 455mA Copper Conductor Termination Wire 671-9101

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toroidal Transformer 230 V AC 2 x 55 V AC 2 Output 50 VA 455mA Copper Conductor Termination Wire 671-9101

Name: RS PRO Toroidal Transformer 230 V AC 2 x 55 V AC 2 Output 50 VA 455mA Copper Conductor Termination Wire 671-9101
Brand: RS PRO
SKU: 347617
Price: 45.84 USD
Availability: InStock



Category Toroidal Transformer Brand RS PRO Condition New

Specifications

Country of Origin	India
Diameter	80mm
Brand	RS PRO
Height	33mm
Model	671-9101
Gross Weight	740g
Termination Type	Copper Conductor Termination Wire
Secondary current	455mA
Number of outputs	2
Standards/Approvals	UL 506, IEC 61558 Class II, VDE0570 Class II, RoHS, EN 61558 Class II
Primary Voltage	230 V ac
Secondary Voltage	2 x 55 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Features dual 115 V AC primary winding suitable for series or parallel configurations.
Compact size with a diameter of 80 mm and height of 33 mm.
Delivers secondary current of 455mA with two independent outputs.
Operates efficiently within 50 Hz to 60 Hz frequency range.
Complies with UL 506, IEC 61558 Class II, VDE0570 Class II, RoHS, and EN standards.
Construction minimizes radiated magnetic field and induced hum noise.
Includes double-insulated primary leads for enhanced safety.
Lightweight design weighing 740 g enables versatile mounting options.

Product Description

RS PRO 671-9101 Toroidal Transformer is a high-quality Toroidal Transformer featuring a 230 V AC dual 115 V primary winding and dual 55 V secondary outputs delivering a total power rating of 50 VA. Designed with copper conductor termination wires, it enables flexible installation tailored to diverse industrial and commercial electrical applications.

This transformer measures 80 mm in diameter and 33 mm in height, providing a compact form factor ideal for space-constrained electronic equipment. Its construction achieves an extremely low level of radiated magnetic fields and minimizes audible hum noise, enhancing device performance and user comfort.

Operating within 50 Hz to 60 Hz frequency, and delivering 455 mA secondary current across two outputs, the 671-9101 model can be connected in series, parallel, or independently to meet specific voltage and current requirements. It meets multiple rigorous international certifications including UL 506, IEC 61558 Class II, VDE0570 Class II, RoHS, and EN 61558 Class II, ensuring compliance and operational safety.

This transformer is designed for various industrial, power supply, and electronic applications where reliable power conversion is critical. It is suitable for use in industrial control panels, laboratory instruments, manufacturing equipment, and HVAC systems.

The lightweight (740 g) and carefully engineered double-insulated primary leads improve mounting flexibility and electrical safety. Mounting hardware is not included and must be sourced separately. Users should ensure that mounting bolts do not simultaneously contact the metal chassis to avoid potentially dangerous shorted turns.

Features dual 115 V AC primary winding for flexible connection options. Compact design with low magnetic radiation and hum noise. Compliance with multiple international safety and performance standards. Robust copper conductor termination wires for secure connections.

Lightweight construction suitable for diverse industrial applications.
