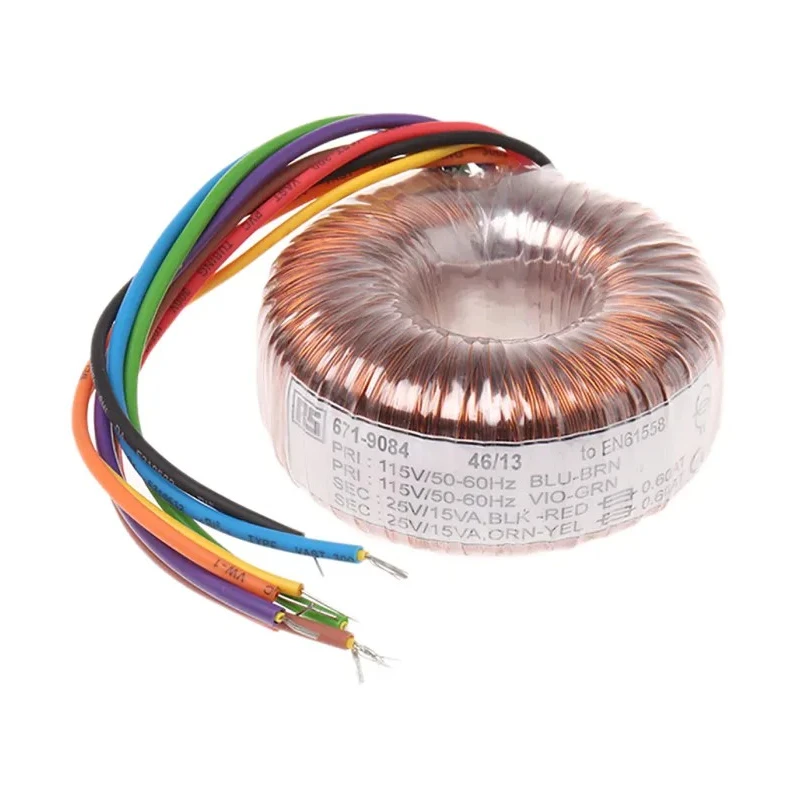

RS PRO Toroidal Transformer 115 V AC, 230 V AC Primary, 2 x 25 V AC Secondary, 2 Output, 30 VA 671-9084

RS PRO 671-9084 Toroidal Transformer is designed to provide reliable dual 115 V AC and 230 V AC input with two independent 25 V AC secondary outputs rated at 30 VA power. This high-quality toroidal transformer features insulated winding type and low iron losses, making it ideal for sensitive electronics and industrial applications.

The transformer is compact, measuring 70 mm in diameter and 32 mm in height, and weighs approximately 503 grams. It operates effectively within standard power frequencies from 50 Hz to 60 Hz, suitable for a wide range of electrical setups. Copper conductor termination wire facilitates secure and efficient electrical connections.

Safety and reliability are assured through compliance with international standards including IEC61558 Class II, UL506, EN61558 Class II, and VDE0570 Class II. The design ensures extremely low radiated magnetic field, very low induced noise, and double insulated primary leads to eliminate risks during use.

This toroidal transformer excels in minimizing electromagnetic interference and hum while offering a small size and low weight compared to traditional stacked lamination transformers. It is suitable for industrial power supplies, laboratory equipment, commercial electronics, and HVAC control systems.

Note that mounting hardware is not supplied with the product and must be purchased separately. It is essential that during installation, both ends of the fixing bolt do not contact the metal chassis simultaneously to avoid creating a dangerous shorted turn.

High quality Toroidal Transformer with dual 115 V AC primary windings. Features two independent secondary windings rated at 2 x 25 V AC. Compact and lightweight design with 70 mm diameter and 32 mm height. Copper conductor termination wire for reliable connections.

Operates efficiently at frequencies between 50 Hz and 60 Hz. Double insulated primary leads ensure enhanced safety. Complies with IEC61558 Class II, UL506, EN61558 Class II, and VDE0570 Class II standards. Low iron loss and minimal magnetic hum for quiet operation.

Suitable for industrial, electronics, power supply, and control applications. Weight is approximately 503 grams for easy handling and installation. Explore more industrial and electronic components with RS PRO products in the EnvMart catalog.
