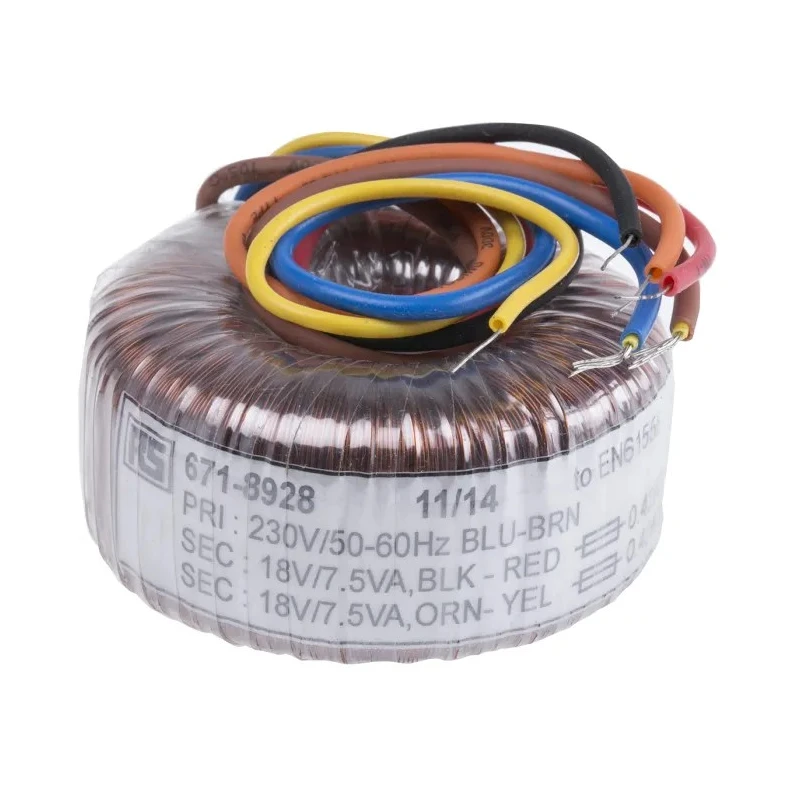

RS PRO 230 V AC Toroidal Transformer 2 x 18 V 15 VA VDE0570 Class II IEC61558 Class II EN61558 Class II 671-8928

RS PRO 671-8928 Toroidal Transformer is engineered for efficient and reliable power conversion in electronic systems. Operating at a primary voltage of 230 V AC, it provides two outputs of 18 V AC each with a power rating of 15 VA. The toroidal core design supports excellent magnetic flux distribution, minimizing losses and maximizing electrical efficiency.

This transformer is designed with copper conductor termination wires, ensuring secure and stable connections in various applications. It supports a frequency range of 50 Hz to 60 Hz and can operate safely at temperatures up to 180°C, suitable for demanding industrial environments.

The compact dimensions - 60 mm in diameter and 31 mm in height - make it ideal for space-constrained electronic equipment installations. It features double insulated primary leads providing high electrical isolation and compliance with safety standards such as VDE0570 Class II, IEC61558 Class II, EN61558 Class II, and UL506.

Low electromagnetic interference (EMI) and reduced audible noise make it particularly suitable for sensitive applications including audio equipment, medical devices, telecommunications, and industrial control systems. Although mounting hardware is not included, this transformer offers ease of integration with existing setups.

High efficiency and compact size for optimized installation. Low EMI and noise for sensitive electronic uses. Copper conductor termination wire ensures reliable connections. Double insulated primary leads for electrical safety.

Certified to multiple international safety standards. Suitable for audio, medical, telecommunications, and industrial controls. Operates at 50 Hz to 60 Hz frequency range. Maximum operating temperature of 180°C. Compact dimensions of 60 mm diameter and 31 mm height.

This RS PRO Toroidal Transformer is a trusted component for industrial and commercial electronic equipment, ensuring reliable performance and compliance with international quality and safety norms. Explore more RS PRO products in our Electronics & Electricals Transformers category for all your power supply needs.
