Microchip 256 kB SRAM Memory, 32K x 8 Bit, PDIP Package, Through Hole Mount 23K256-I/P

Free Delivery in India | Lowest Global Shipping Charges

Microchip 256 kB SRAM Memory, 32K x 8 Bit, PDIP Package, Through Hole Mount 23K256-I/P

Name: Microchip 256 kB SRAM Memory, 32K x 8 Bit, PDIP Package, Through Hole Mount 23K256-I/P
Brand: Microchip
SKU: 345617
Price: 2.54 USD
Availability: InStock



Category SRAM Memory Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	3.3mm
Length	9.27mm
Model	23K256-I/P
Width	6.35mm
Mount Type	Through Hole
Series	23K256
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Memory size	256kB
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.7V
Supply Current	10mA
Maximum Clock Frequency	20MHz
Organisation	32K x 8 Bit
Number of Bits per Word	8
Maximum Random Access Time	25ns
Number of Words	32k
Timing Type	Synchronous

Key Features

Memory size of 256 kB organised as 32K x 8 bit for efficient data storage.
Maximum clock frequency up to 20 MHz ensures fast data access.
Operates with minimum supply voltage of 2.7 V and maximum of 3.6 V.
Through hole mount and PDIP package facilitate easy PCB insertion and secure mounting.
Wide operating temperature range from -40°C to 85°C suitable for automotive and industrial use.
Complies with RoHS standards and automotive AEC-Q100 certification.
Low supply current of 10 mA helps in efficient power management.
Pin count of 8 for straightforward connectivity and integration.

Product Description

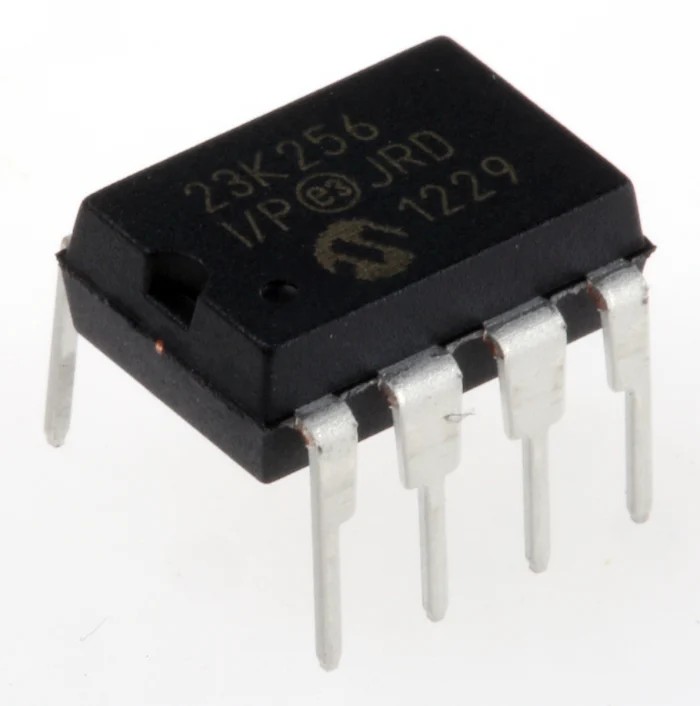

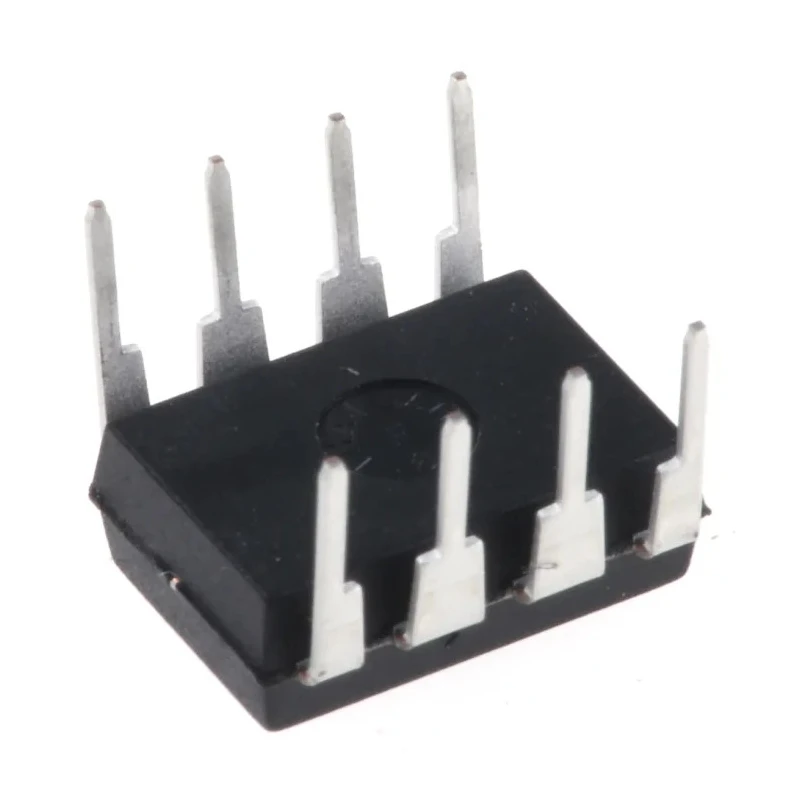

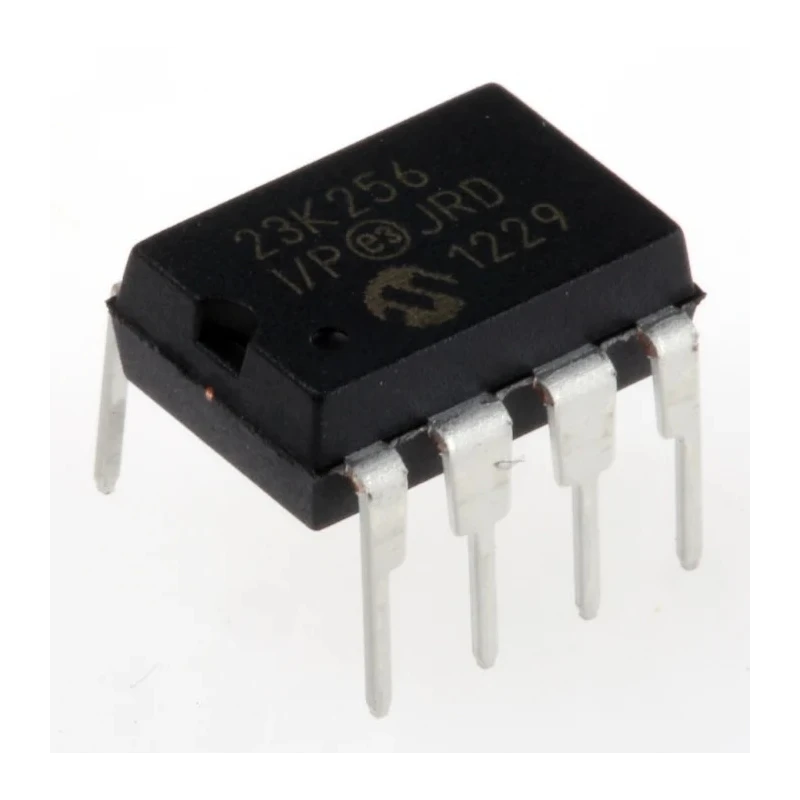

Microchip 23K256-I/P SRAM Memory is a 256 kB static random access memory designed for use in electronic, industrial, and automotive applications requiring reliable high-speed data storage.

This SRAM offers a memory organisation of 32K words by 8 bits per word and supports synchronous timing ensuring efficient data processing. It operates at a maximum clock frequency of 20 MHz, with fast access times down to 25 ns, making it suitable for systems demanding rapid memory operations.

Operating voltages range between 2.7 V minimum and 3.6 V maximum, allowing for stable performance under varied power conditions. It features a through hole mount type with a PDIP package, facilitating easy assembly on printed circuit boards.

The device features robust operating temperature capabilities ranging from -40°C to 85°C, complying with automotive AEC-Q100 standards and RoHS environmental compliance, allowing use in harsh environments and automotive systems.

Memory size of 256 kB organised as 32K x 8 bit for efficient data storage. Maximum clock frequency up to 20 MHz ensures fast data access. Operates with minimum supply voltage of 2.7 V and maximum of 3.6 V. Through hole mount and PDIP package facilitate easy PCB insertion and secure mounting.

Wide operating temperature range from -40°C to 85°C suitable for automotive and industrial use. Complies with RoHS standards and automotive AEC-Q100 certification. Low supply current of 10 mA helps in efficient power management.

Compact dimensions: length 9.27 mm, width 6.35 mm, height 3.3 mm. Pin count of 8 for straightforward connectivity and integration.

This SRAM is ideal for industrial, automotive, and electronic component manufacturing where dependable memory performance is critical. It is suitable for embedded systems, control units, and other applications requiring fast, reliable memory.

Explore a broad range of semiconductor memory solutions at EnvMart to find the ideal components for your electronics designs.
