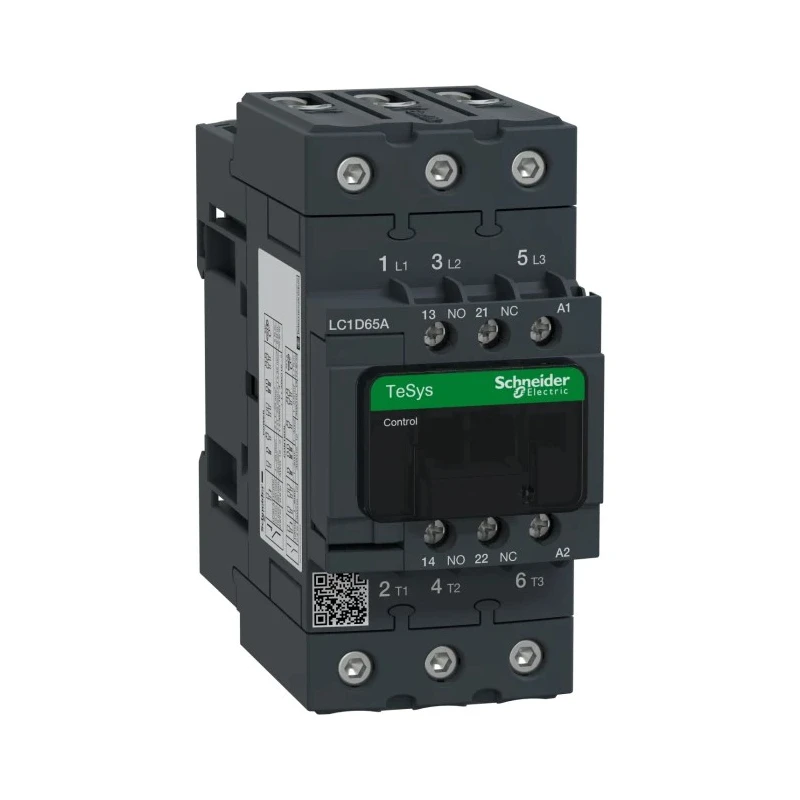

Schneider Electric LC1D Contactor, 24V AC Coil, 3-Pole, 65A, 30kW Power Rating, 3 NO Auxiliary Contacts, 690V AC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 65A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 65A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Features a 24V AC coil voltage suitable for control circuits.
- Supports up to 690V AC contact voltage for heavy-duty electrical systems.
- Equipped with 3 normally open (NO) contacts for reliable switching.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for versatile control.
- Designed for motor control and resistive load applications in industrial environments.
- Mountable on DIN rails for convenient installation in control panels.
- Operates efficiently within a temperature range of -5°C to +60°C.
- Compact dimensions of 55mm width, 120mm depth, and 122mm length save space.
Product Description
Schneider Electric LC1D65AB7 Contactor features a 24V AC coil voltage optimized for motor control and resistive load switching in demanding industrial environments. This 3-pole contactor safely switches high voltage circuits up to 690V AC with a contact current of 65A and a power rating of 30kW, providing robust performance for power distribution and process automation.
Its double-break pole design enhances reliability and durability under frequent switching cycles. The device includes 3 normally open main contacts combined with 2 auxiliary contacts configured as 1 NO and 1 NC, offering additional control circuit flexibility. Installation is simplified with its DIN rail mounting capability and robust screw clamp terminals that ensure secure electrical connections.
Operating within a wide temperature range from -5°C to +60°C, the contactor is suitable for various industrial applications including air conditioning units, conveyor belts, and carpentry workshops. The compact form factor (55mm W x 120mm D x 122mm L) allows for integration into space-constrained panels.
This contactor complies with IEC 60947 standards, UL 508, CSA, CCC, and RoHS directives, ensuring safety and environmental compliance in global markets. Its touch-proof IP20 rating adds extra protection against user contact with live parts during operation.
Features a 24V AC coil voltage suitable for control circuits. Supports up to 690V AC contact voltage for heavy-duty electrical systems. Equipped with 3 normally open (NO) contacts for reliable switching. Includes 2 auxiliary contacts configured as 1 NO and 1 NC for versatile control.
Designed for motor control and resistive load applications in industrial environments. Mountable on DIN rails for convenient installation in control panels. Operates efficiently within a temperature range of -5°C to +60°C.
Compact dimensions of 55mm width, 120mm depth, and 122mm length save space. Robust screw clamp terminals ensure secure and durable electrical connections. Complies with international standards including IEC, UL, CSA, and RoHS.
This Schneider Electric contactor is ideal for industrial, manufacturing, HVAC, and automation applications demanding reliable power control. Its high power rating and robust design support efficient machinery and process operations safely and effectively.
Explore more contactors and automation components in the Electronics & Electricals category at EnvMart for comprehensive electrical control solutions.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 30kW, making it suitable for various motor control and resistive load applications.
This model supports a maximum contact voltage of 690V AC, allowing it to handle heavy-duty electrical systems.
The coil voltage for this contactor is 24V AC, which is optimized for control circuits.
It features a 3-pole design, which allows for reliable switching in various applications.
The dimensions of this model are 55mm in width, 120mm in depth, and 122mm in length, making it compact for installation.
The contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), providing additional control options.
It operates efficiently within a temperature range of -5°C to +60°C, suitable for various industrial environments.
This unit is designed for DIN rail mounting, which simplifies installation in control panels.
It features screw clamp terminals that ensure secure and durable electrical connections.
This contactor complies with several standards including IEC, UL, CSA, CCC, and RoHS, ensuring safety and environmental compliance.
It is designed for motor control and resistive load applications in industrial environments, such as HVAC systems and conveyor belts.
The contact current rating for the LC1D Contactor is 65A, which supports high power distribution needs.
