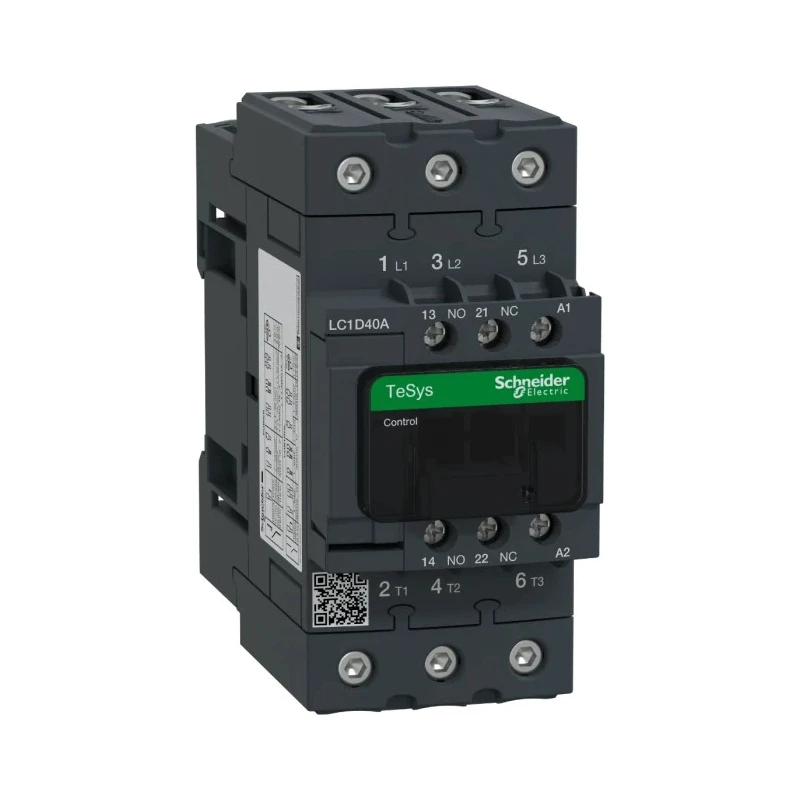

Schneider Electric TeSys D 3-Pole Contactor, 24V ac Coil, 40A, 18.5 kW, 3 NO Auxiliary Contacts, 690V ac LC1D
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D |
| Depth | 118mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at coil voltage of 24V ac, suitable for industrial automation circuits.
- Supports 3 poles with 3 normally open auxiliary contacts for versatile control configurations.
- Rated for a contact current of 40A and power rating of 18.5 kW at 690V ac.
- Features screw clamp terminals with IP20 finger-safe protection for safe and easy wiring.
- Compact dimensions of 122mm length, 55mm width, and 118mm depth enable installation in limited spaces.
- Wide operating temperature range from -5°C to 60°C for harsh environments.
- Complies with international standards including UL, RoHS, IEC, CSA, EAC, and CCC.
- Designed for durability with mechanical life of six million cycles and rapid switching times.
Product Description
Schneider Electric LC1D40AB7 is a 3-pole contactor from the reliable TeSys D series, engineered for efficient motor control and resistive load switching in industrial environments. With a coil voltage of 24V ac and rated operational current of 40A, this contactor handles power loads up to 18.5 kW at 690V ac.
The device features screw clamp terminals that provide IP20 finger-safe protection, simplifying safe connections without specialized tools. Its compact form factor measuring 122mm (L) x 55mm (W) x 118mm (D) makes it ideal for installations in control panels with space constraints.
It supports 3 normally open (NO) contacts and includes 2 auxiliary contacts configured as 1 NO and 1 NC for enhanced switching options. The contactor withstands mechanical stress with a robust durability of six million cycles and is capable of rapid switching with opening times between 4 to 19 ms and closing times from 12 to 26 ms.
Designed for demanding conditions, the LC1D40AB7 operates reliably between -5°C and 60°C and meets stringent international standards including UL, IEC, CSA, and RoHS compliance. Its rated impulse withstand voltage of 6kV ensures protection against voltage surges common in industrial systems.
This contactor is widely applicable for use in industrial power supply systems, automated processing equipment, agricultural machinery, and motor starter applications. Its DIN rail mounting capability and compatibility with various accessories facilitate easy integration into existing control circuits.
The product is part of Schneider Electric's Better World initiative, featuring a design for disassembly to support sustainability and efficiency in electrical installations. Operates at 24V ac coil voltage with 3 poles and 3 normally open contacts.
Rated for 40A contact current and supports motor control and resistive loads. Compact size suitable for installations with limited space. IP20 finger-safe screw clamp terminals for secure wiring. Durable mechanical life of six million cycles with rapid response times.
Compliance with multiple international safety and performance standards. Wide operating temperature range from -5°C to 60°C. Designed for sustainability with disassembly-friendly construction. Suitable for industrial, automation, agricultural, and motor starter applications.
Explore more in the Automation & Control Gear category for premium Schneider Electric contactors and accessories at EnvMart.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated operational current of this contactor is 40A.
This model operates at a coil voltage of 24V AC.
The power rating of this contactor is 18.5 kW at 690V AC.
It features 3 poles with 3 normally open (NO) contacts.
The dimensions are 122mm in length, 55mm in width, and 118mm in depth.
It operates reliably within a temperature range of -5°C to 60°C.
It uses screw clamp terminals with IP20 finger-safe protection.
The contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with several international standards including UL, RoHS, IEC, CSA, EAC, and CCC.
The mechanical life of this contactor is rated at six million cycles.
This model is designed for DIN rail mounting, facilitating easy installation.
It is suitable for motor control and resistive load applications in industrial environments.
